4-20 C60 Breaker Protection System GE Multilin
4.3 FACEPLATE INTERFACE 4 HUMAN INTERFACES
4

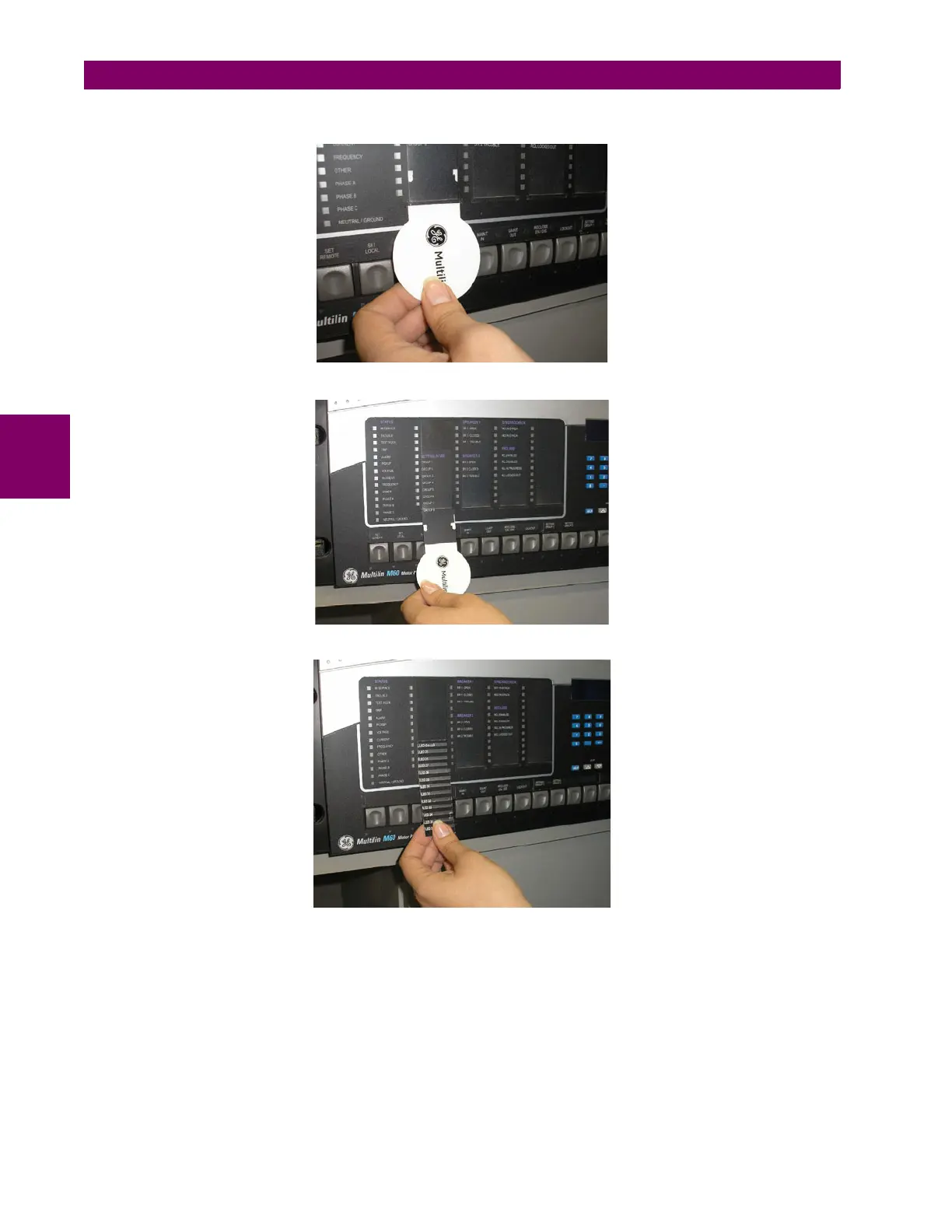

2. Slide the label tool under the LED label until the tabs snap out as shown below. This attaches the label tool to the LED
label.
3. Remove the tool and attached LED label as shown below.
4. Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown below.
The following procedure describes how to remove the user-programmable pushbutton labels from the C60 enhanced front
panel and insert the custom labels.
