5-126 C60 Breaker Protection System GE Multilin
5.4 SYSTEM SETUP 5 SETTINGS
5
EXAMPLE: The creation of different Data Sets
The aggregators allow the aggregation of phasors from multiple PMUs (with the same reporting rate) into a single custom
data set to optimize bandwidth when streaming.

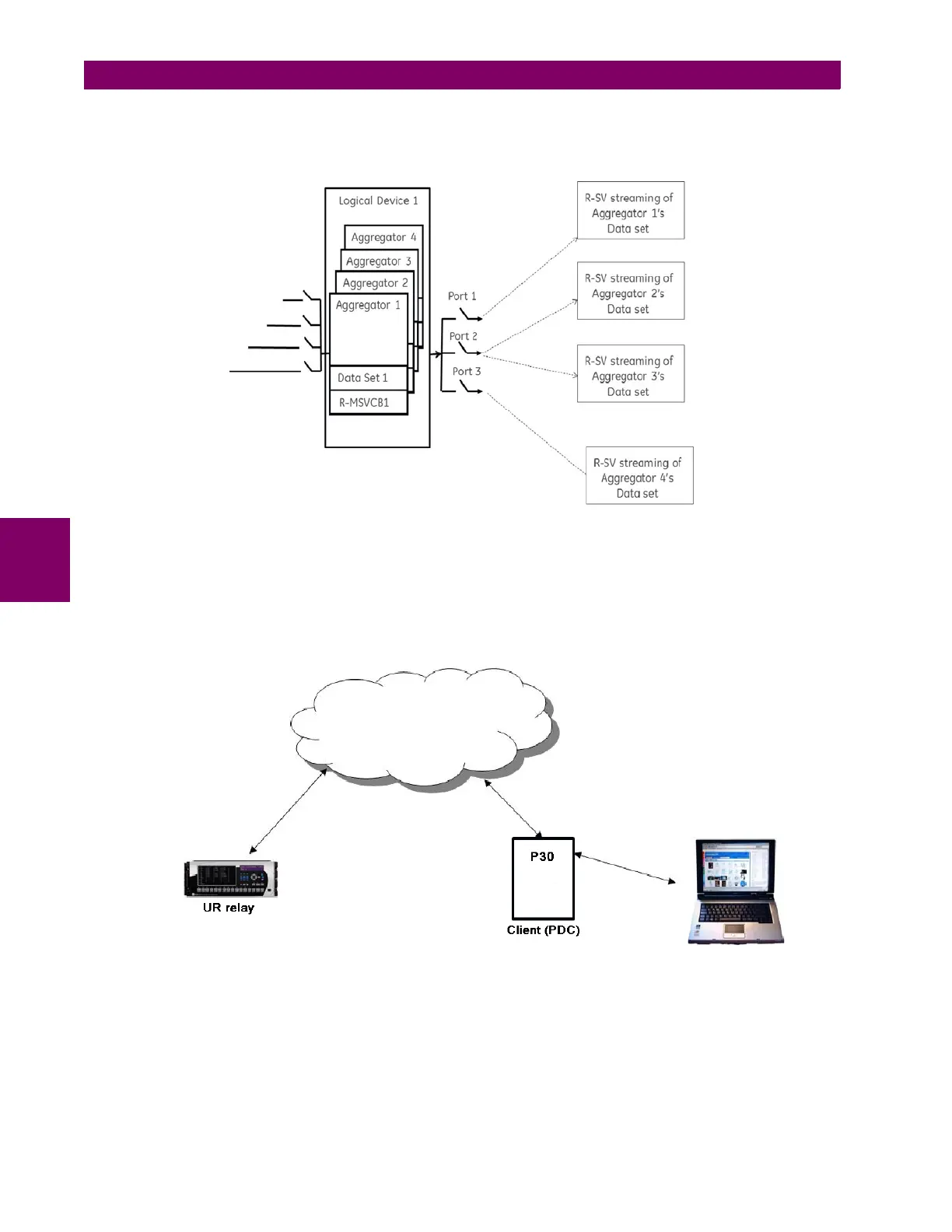

Figure 5–45: EXAMPLE OF AGGREGATOR DATA SETS
CONFIGURATION EXAMPLE: CFG-2 based configuration (using IEC 61850-90-5)
The C60 is expected to send the CFG-2 file (IEEE C37.118 config. file) upon request from the upstream synchrophasor
devices (for example, P30) without stopping R-SV multicasting, as shown in the figure below. The primary domain control-
ler (PDC) does not need to use a stop/start data stream command if the UR protocol is set to IEC 61850-90-5 prior to
requesting the configuration via CFG-2 (IEEE C37.118 config. file). The CFG-2 request from the P30 can be on TCP/IP or
UDP/IP, however, R-SV data streaming is only UDP multicasts (not TCP).
Figure 5–46: CFG-2 BASED CONFIGURATION SOLUTION
