GE Carestation 750 - PCV-VG Mode; SIMV VCV Mode

31

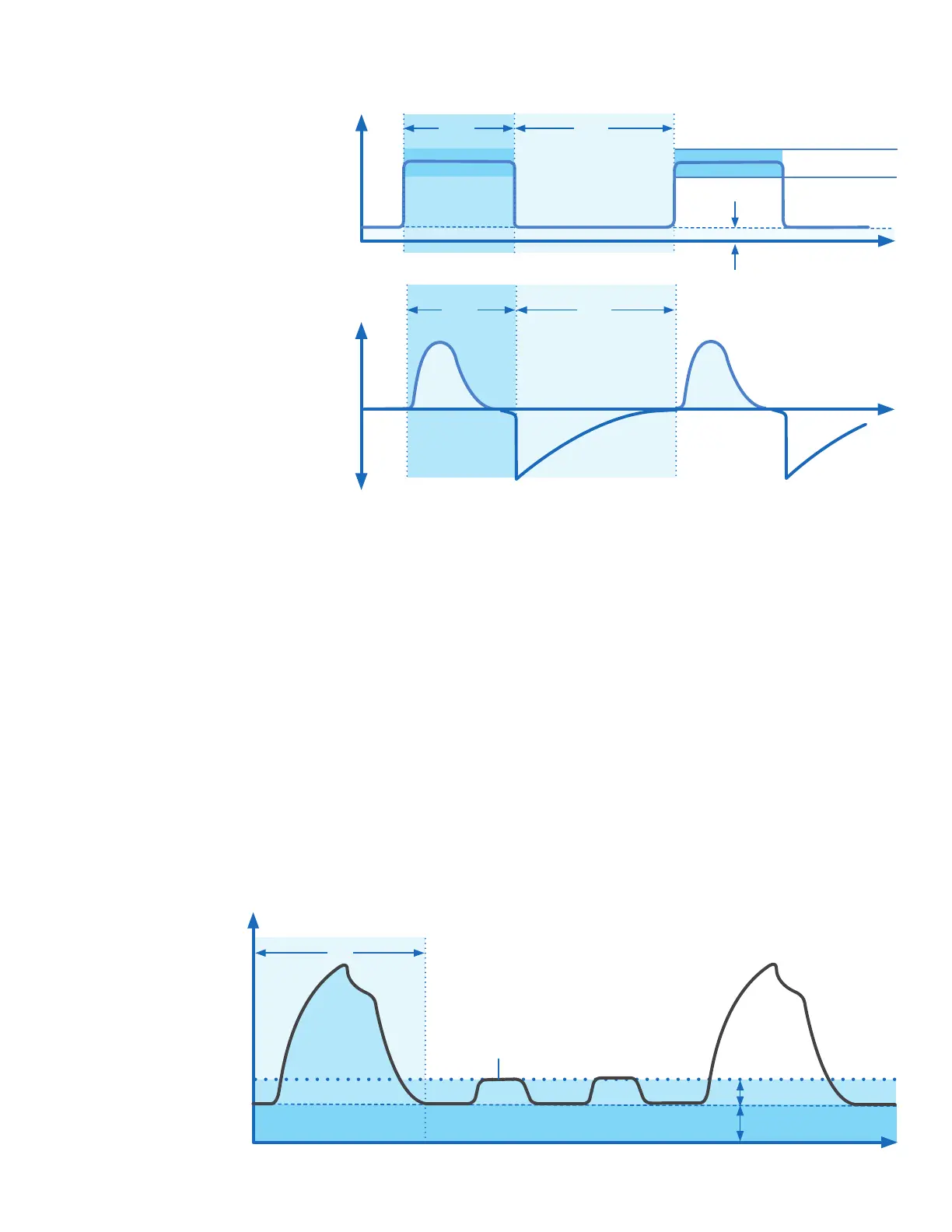

PCV-VG mode
• Tidal volume is set and volume is
delivered using a decelerating
ow and constant pressure
• The ventilator will adjust the
inspiratory pressure needed to
deliver the set tidal volume
breath-by-breath so that the
lowest pressure is used
• The patient’s compliance is
determined from a volume breath
delivered at the set tidal volume,
and the inspiratory pressure level
is then established for the next
PCV-VG
PCV-VG mode settings:
• TV
• RR
• I:E
• PEEP
• Pmax
• Rise Rate
Flow
TV
TV
Time
Tinsp Texp
Pressure
Time
Variable pressure to
deliver desired TV
Tinsp Texp
Peep
SIMV VCV mode
• Periodic volume breaths are delivered at preset intervals
• Between the machine delivered breaths, the patient can breathe spontaneously
• Spontaneous breaths can be pressure supported
• Spontaneous breaths are indicated by a color change in the waveform
SIMV-VCV mode settings:
• TV
• RR
• Tinsp
• Tpause
• Psupport
• PEEP
• Pmax
• Trig Window
• Flow Trigger
• End of Breath
• Rise Rate
Pressure
Mandatory
SIMV breath
Spontaneous Pressure
Supported breath
Psupport
PEEP
Time
T
1
