5-8 120 Series Maternal/Fetal Monitor Revision B
2015590-001
Setup Procedures: FECG Setup Screen
FECG Setup Screen
Select the FECG softkey to access the FECG Setup screen (Figure 5-1). For
information on settings, refer to Appendix A, “Factory Defaults” .

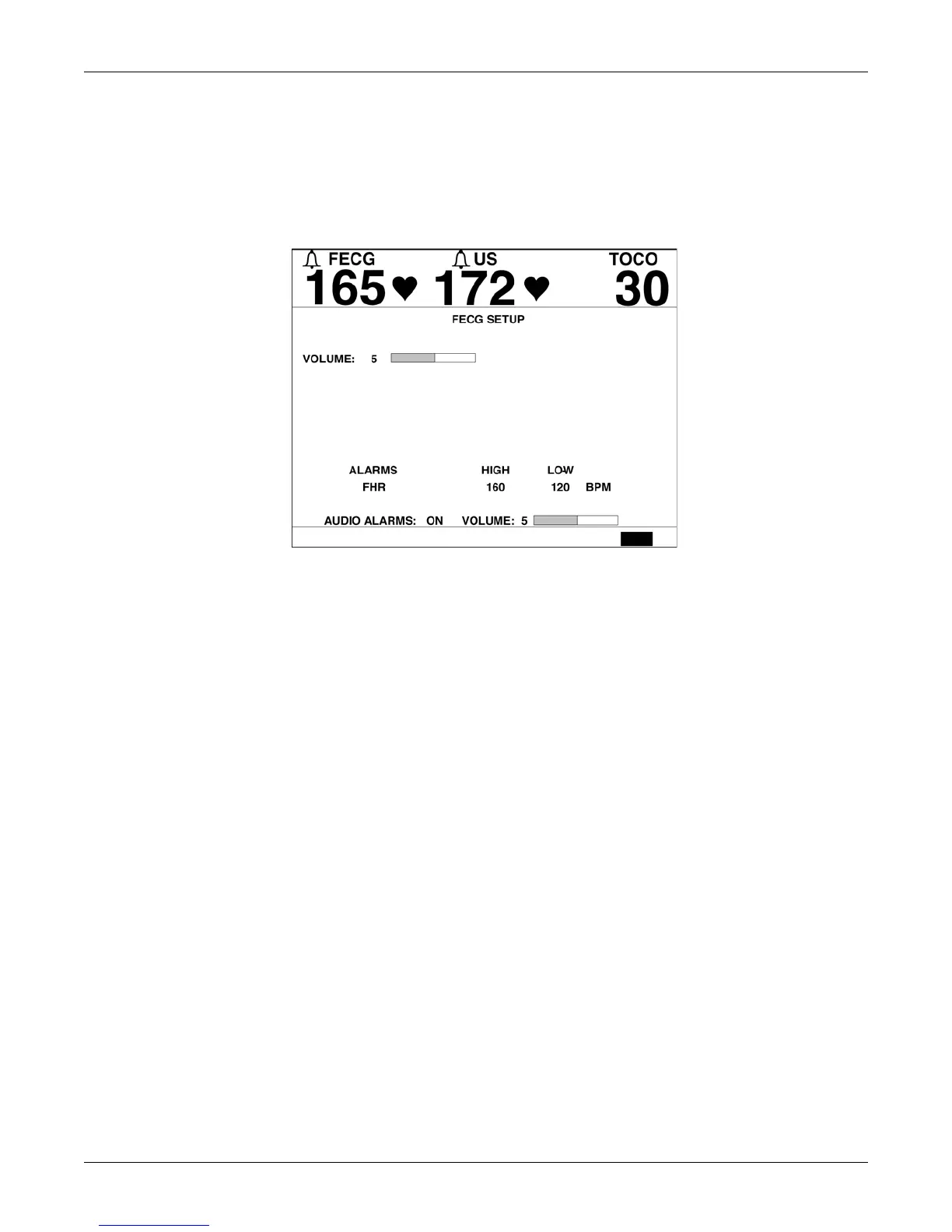

Figure 5-1. FECG Setup Screen
Volume
This field controls the volume for the FHR derived from FECG. This works in
conjunction with the four front panel
Volume pushbuttons.
FHR Alarm Limits
These fields adjust the high and low alarm limits for FHR.
NOTE: The FHR1 and FHR2 alarm limits are set independently of each other.
FHR Audio Alarm
This field enables/disables the audio alarm function for FHR when derived from
FECG.
On: Visual and audible indications are provided during an FHR alarm
condition.
Off: Only a visual indication is provided during an FHR alarm condition.
Alarm Volume
This field controls the alarm volume for FECG alarms.
