Revision B 120 Series Maternal/Fetal Monitor 3-7
2015590-001
Controls, Indicators, and Connectors: Front Panel Displays
Primary Labor Parameters
The primary labor parameters section displays FHR1, FHR2, and UA data.
FHR Display
The FHR1 and FHR 2 areas are summarized by Figure 3-4 and
Table 3-3.

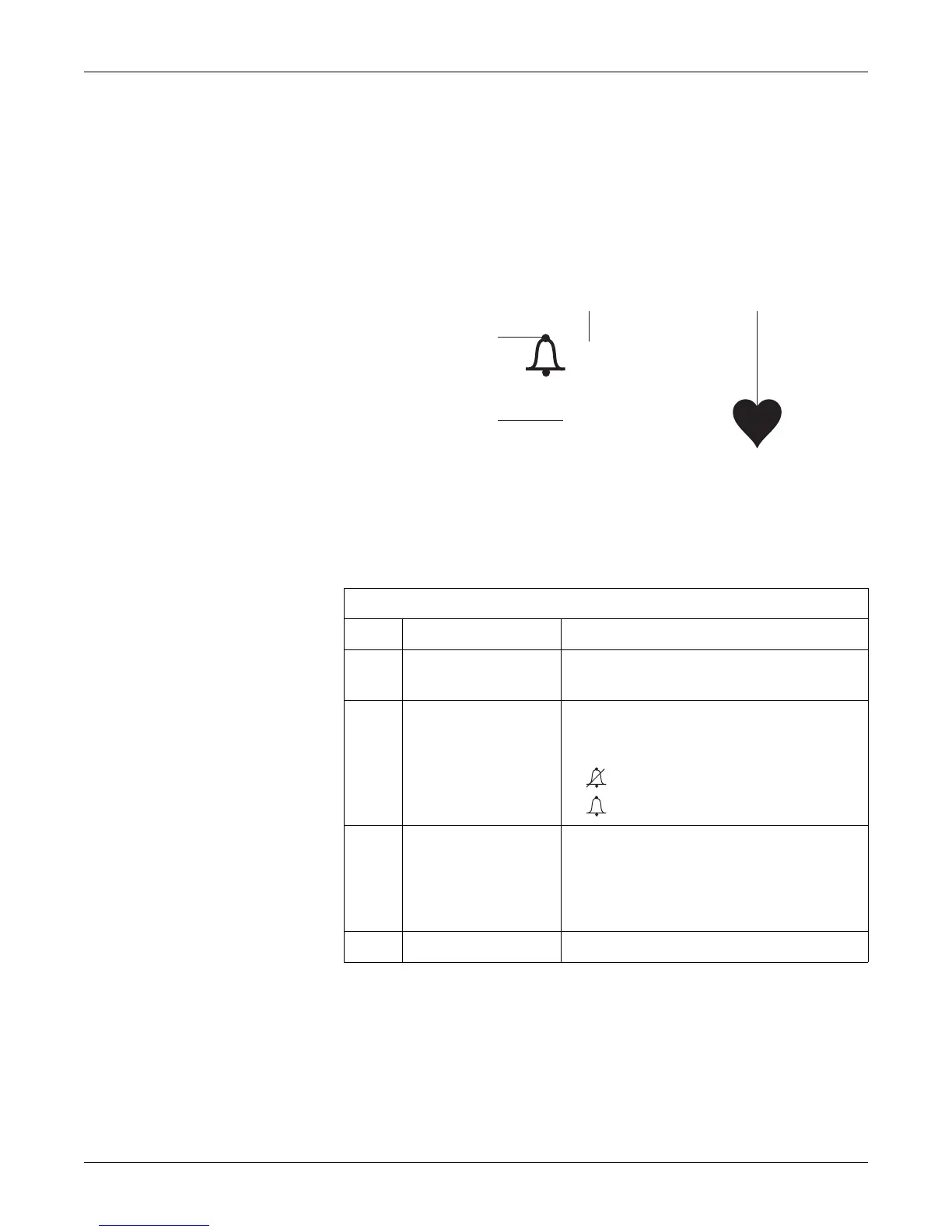

Figure 3-4. FHR Display
Table 3-3. FHR Display
Name Description
A FHR Value
Up to three digits indicate the fetal heart rate in
beats per minute.
B
FHR Alarm Setting
Indicator
This symbol provides information about the FHR
audio alarm and the FHR high/low alarm limit
settings.
îš„ : An alarm setting is turned off.
îš„ : All alarm settings are enabled.
C FHR Mode Title
An abbreviation indicates the monitoring mode in
use:
FECG, US, US2, or INOP. (FECG only displays
in the FHR1 area.) Select the mode softkey to
access the respective setup screen. See Table 3-4
for FHR connection options.
D FHR Heartbeat Indicator Flashes with each detected valid heartbeat.
165
FECG
C
D
B
A
