GE Corometrics 129 User Manual

7-22 120 Series Maternal/Fetal Monitor Revision B
2015590-001

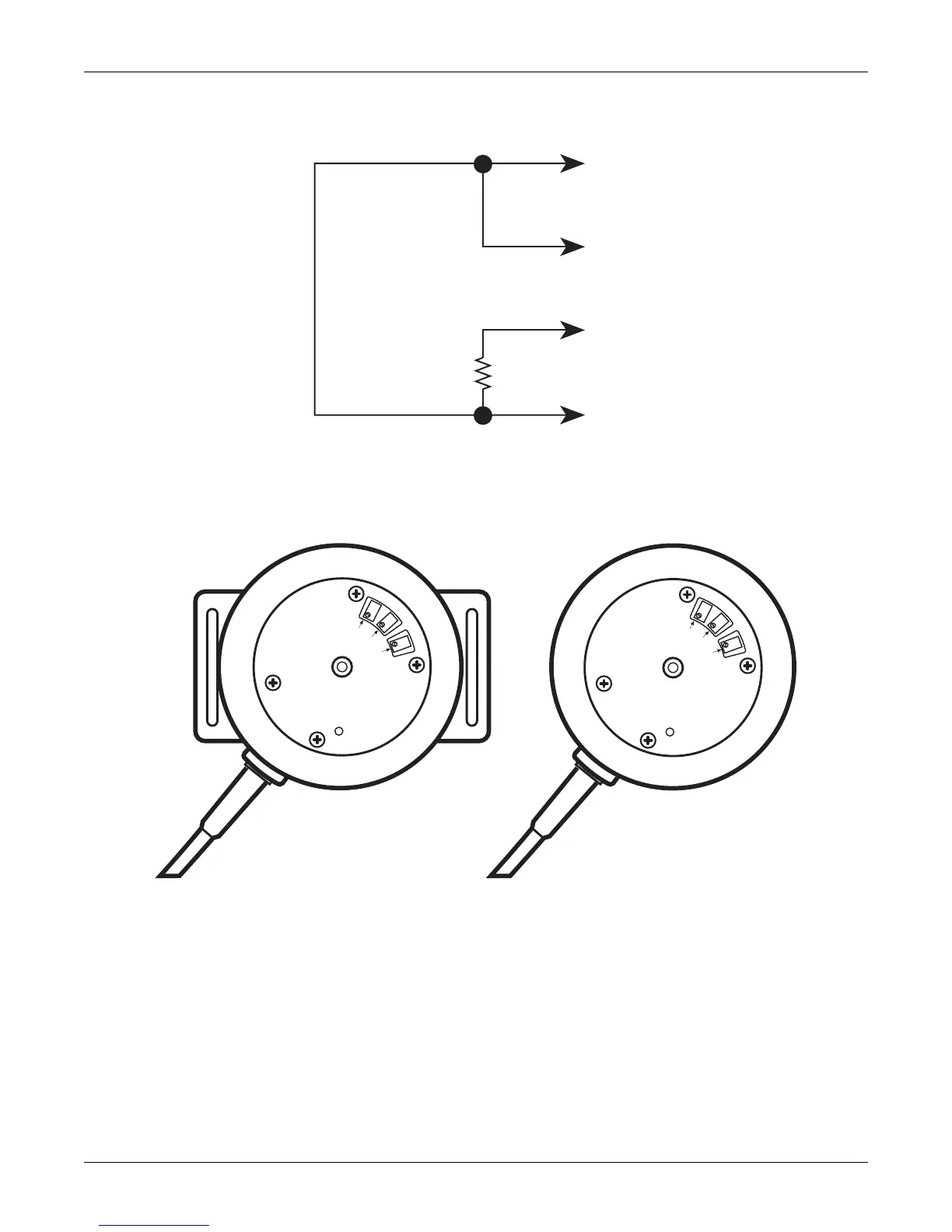

Calibration: Trimline Tocotransducer Calibration
Figure 7-4. CMR Test Jack
Figure 7-5. Trimline Tocotransducer Potentiometer Locations
+P
P
+4 V
REF
Pin 1*
Pin 2*
Pin 4*
Pin 6*
475 W
*Front Panel UA Connector
CW 
CW +
CW 
GAIN
ZERO CTR
ZERO TRIM
CW 
CW +
CW 
GAIN
ZERO CTR
ZERO TRIM
Loop Style
Button-Top Style
