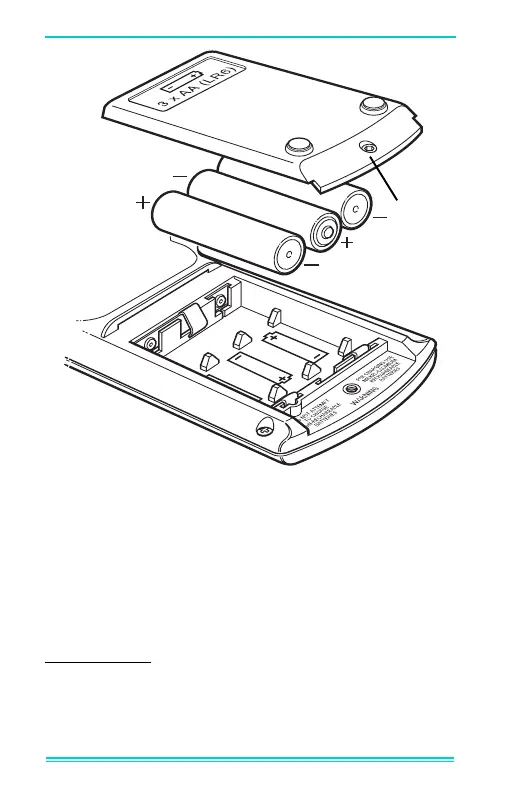

Figure 2-1 Fitting the Battery
2.2 Electrical connections
(Figure 2-2 and 2-3)
The optional adaptor/charger is supplied with a set of
interchangeable connectors so that the unit can be used
worldwide. To change the power pin adaptor push the adaptor
from the charger body, align the replacement adaptor and
push onto the charger body.
Battery charger
This is a two-pole, 2.5 mm, centre pin connector:
-ve - centre pin.
+ve - outer connector casing.
captive
screw
