CONNECT DRAIN LINE
(CONT.)
• Connect drain line to air gap, waste tee or disposer
using the previously determined method. Secure
hose with a screw-type clamp.
Method 1 – Air gap with waste tee or disposer
Method 2 – “High drain loop” with waste tee or
disposer
With this method you will need the drain hose hanger
set aside in Step 1.
Fasten drain hose to underside of countertop with the
provided hanger.
IMPORTANT – When connecting drain line to
disposer, check to be sure that drain plug has been
removed. DISHWASHER WILL NOT DRAIN IF PLUG
IS LEFT IN PLACE.
Tip: Avoid unnecessary service call charges for a
no drain complaint.
Make sure excess drain hose has been pulled through
the cabinet opening. This will prevent excess hose
in the dishwasher cavity from becoming kinked or
crushed by the dishwasher.
Dishwasher Installation
Remove
Drain
Plug
12

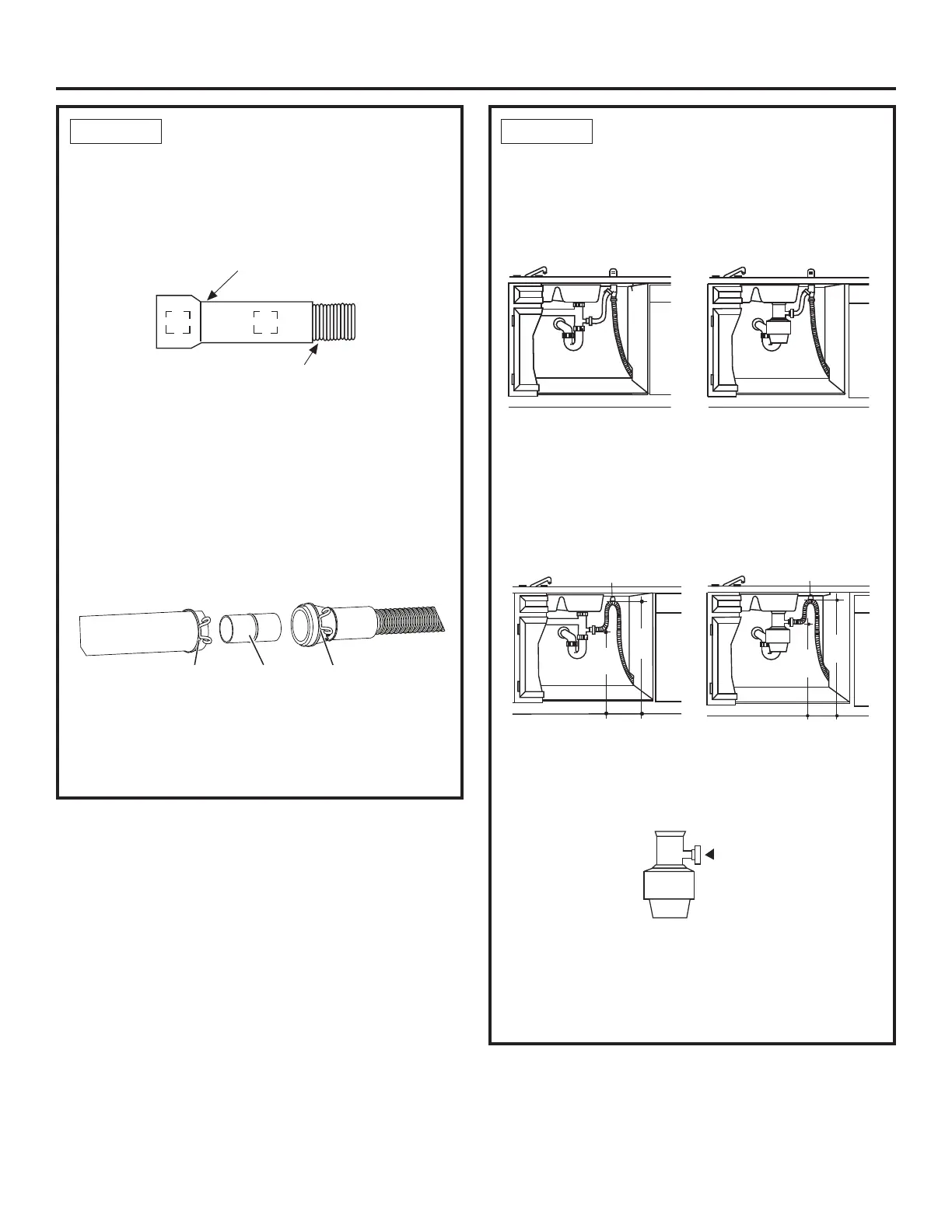

CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8” through 1”
diameter inlet ports on the air gap, waste tee or disposer.
• Determine size of inlet port.
• Cut drain hose connector on the marked line, if required,
to fit the inlet port.
• If a longer drain hose is required, replace the
provided user bag drain hose with GE Appliances
service part WD24X10065, a 12’ long hose which
can be connected directly to the drain loop already
attached to the unit (see Step 7). If service part hose
is not available, an additional hose with coupler, ID of
5/8” or 7/8” and no longer than 66”, may be attached
to the provided user bag drain hose. Secure the
connection with hose clamp (obtain locally) to the
provided user bag drain hose.
NOTE:
• TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
16’ FROM THE REAR OF THE DISHWASHER FOR
PROPER DRAIN OPERATION.
Figure Z
Cutting Line
1"
5/8"
IMPORTANT: Do not cut corrugated
portion of hose
STEP 17 STEP 17
Hose
Clamp
Coupler Hose
Clamp
Figure AA
Figure AB
Disposer Installation
Waste Tee Installation
Waste Tee Installation
Figure AC
18"
Min.
32"
Min.
32"
Min.
18"
Min.
Drain Hose Hanger
Drain Hose Hanger
Disposer Installation
To Next Page
