– 18 –
3. Remove the base grille.

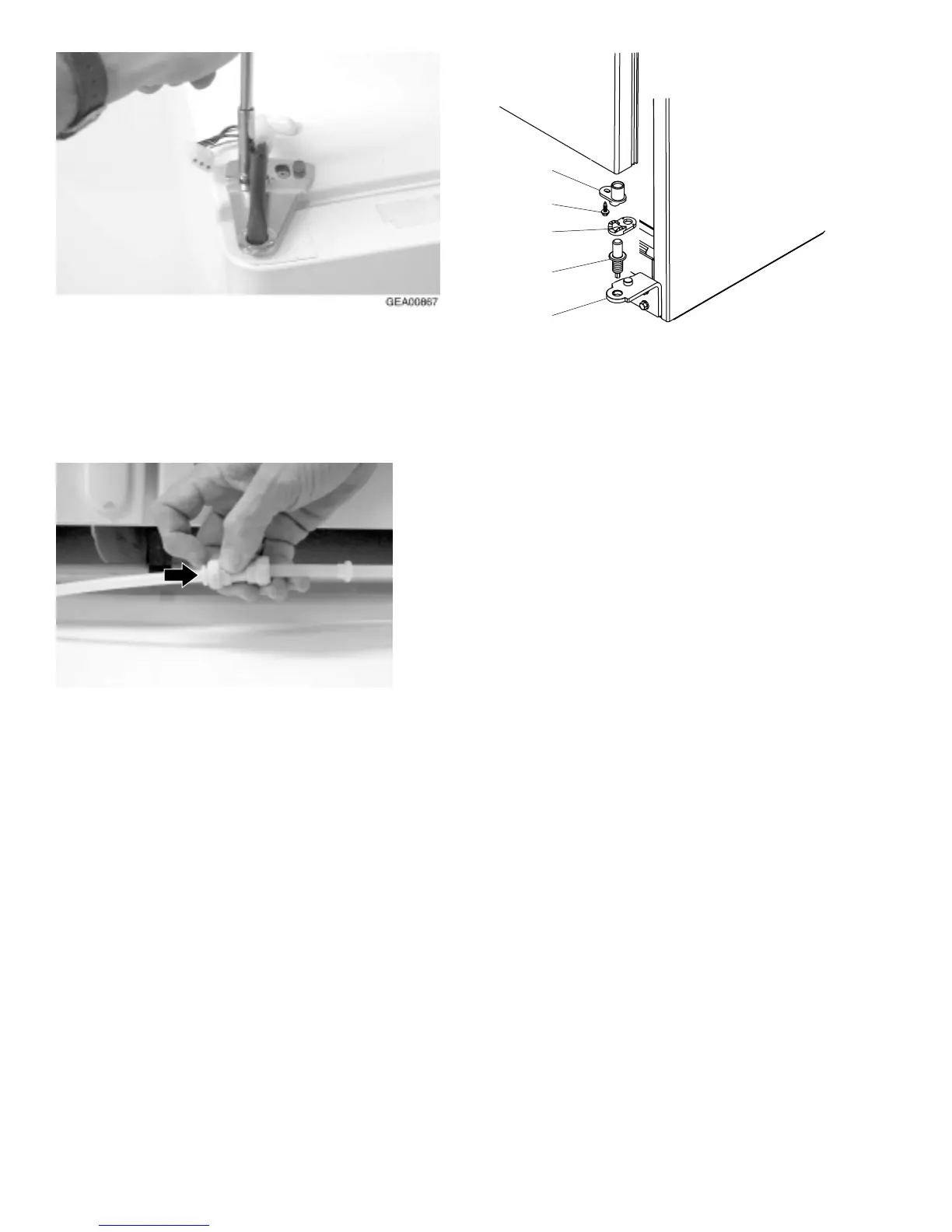

4. Disconnect the water supply tube. To
disconnect the tube, push in the white collar on
the quick connector and pull the tube out.
GEA00869
5. Remove the water tube protection (black
collar).
6. Remove 2 upper hinge screws.
7. Lift the upper hinge and move it to the side (the
gasket is located under the hinge).
CAUTION: Do not side-load hinges.
NOTE: Freezer door only - Guide the water line
through hinge while lifting the door from hinge.
8. Open the door 90 degrees and lift the door
straight up and off the lower hinge.
GEA00909
Screw
Hinge
Adjustment
Pin
Hinge
Cam Riser
Cam with
Thimble
9. Remove the screw, hinge cam, and thimble
from the bottom of the door.
10. Fresh Food Door Only: Remove the hinge
adjustment pin and cam riser from the lower
hinge.
11. Freezer Door Only: Remove the cam riser
and washer from the lower hinge.
12. Remove 2 screws and lower hinge from
cabinet.
Fresh Food Door Adjustment
IMPORTANT: The refrigerator rollers must be
adjusted correctly to ensure proper door closure.
Refer to the Roller Assembly section in this
chapter for more information.
The freezer door is not adjustable. The fresh food
door can be adjusted to match the height of the
freezer door.
1. Remove the base grille (opening the door
makes grille removal easier).
2. Turn the hinge adjustment pin (located on the
fresh food lower hinge) clockwise to raise the
door and counterclockwise to lower the door.
Control Panel
The control panel, located at the front of the fresh
food compartment, contains temperature control
encoders for fresh food and freezer sections and
the fresh food door light switch.
1. Remove 2 screws located in the bottom of the
control panel. Slide the panel down.
To Next Page
