– 21 –
GEA00874
GEA00875

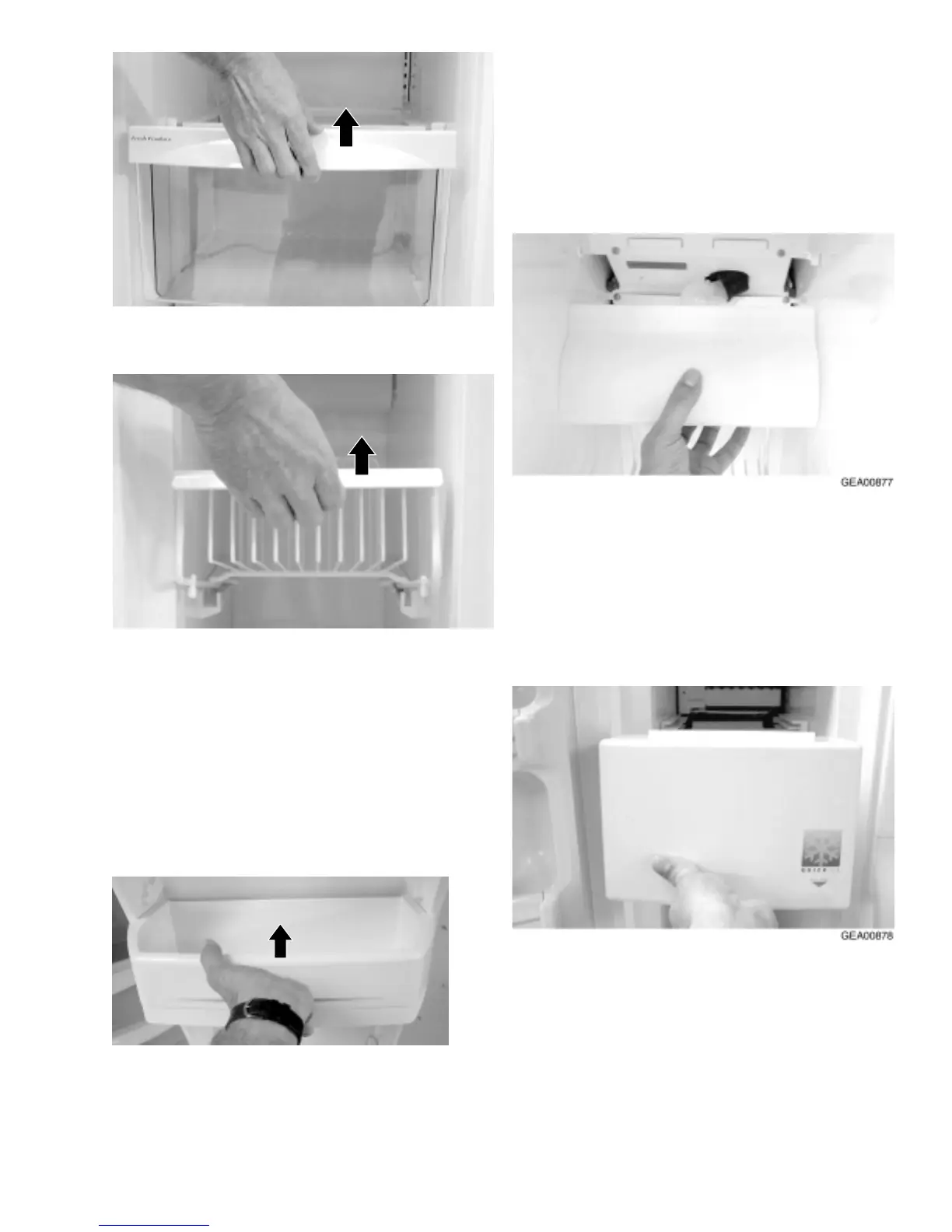

Door Shelf Extenders
Detachable shelf extenders deepen and enclose
fixed door shelves, providing more storage and
greater storage flexibility.
1. Lift the shelf extender straight up until it
disengages from the locking device.
2. Pull out the shelf extender.
GEA00876
Freezer Light
The freezer light is attached to the evaporator fan
housing.
1. Remove the light cover by lifting it off the tabs.
2. Replace the appliance light bulb.
Icemaker
The icemaker is located in the rear of the freezer
compartment. The icemaker must be replaced as
a complete unit.
1. Slide out the upper icemaker dispenser tray
and drawer.
2. Loosen 2 mounting screws.
To Next Page
