– 29 –
GEA00900
Cable
Connector
Cable
Connector

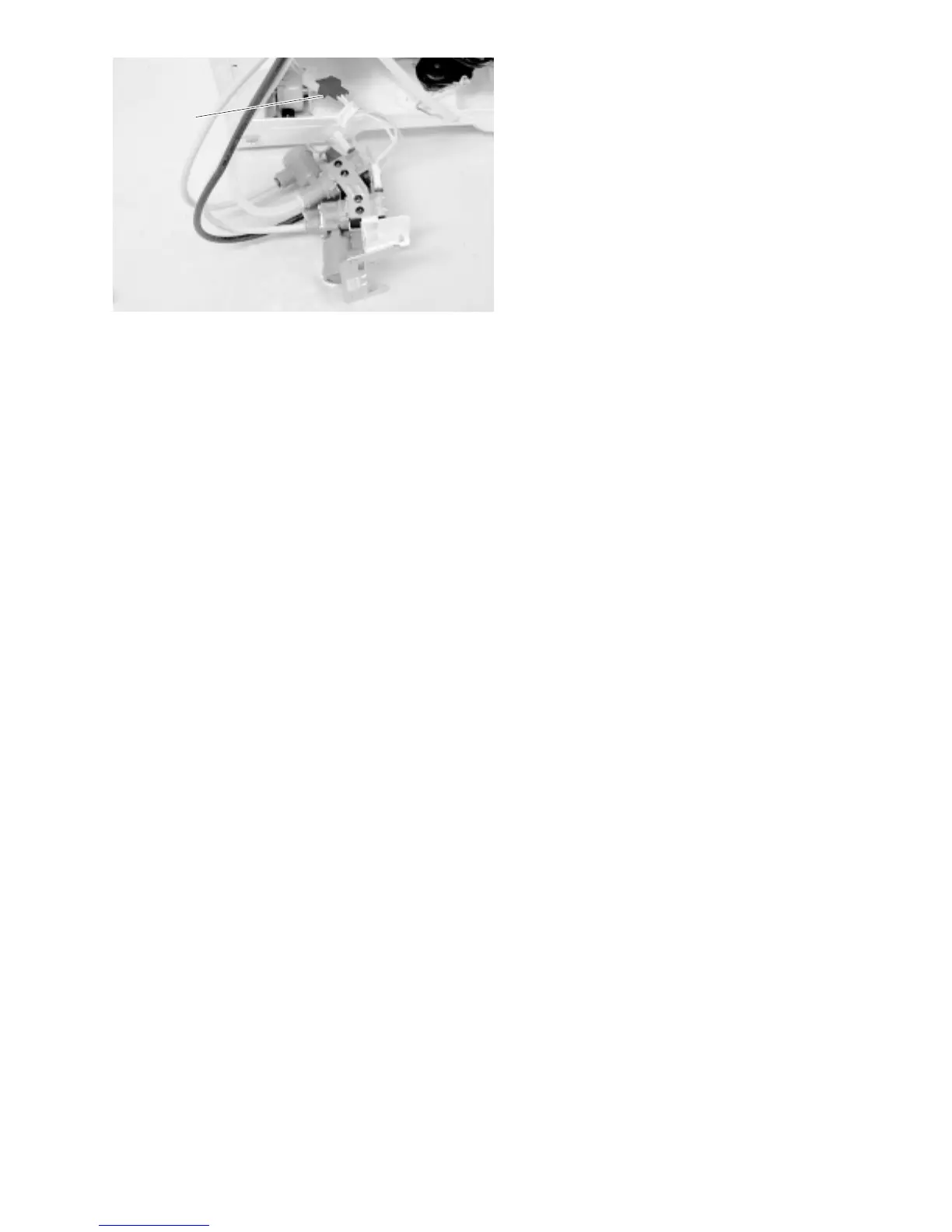

4. Remove 2 Phillips screws from the solenoid
connection.
5. Disconnect the water tube and remove the
solenoid.
Fresh Food Air Damper
The fresh food air damper is located in the upper
left corner of the fresh food compartment. The
damper opens to allow cold air to circulate from
the freezer to the fresh food compartment.
1. Remove 2 damper cover screws.
2. Remove the damper cover.
3. Using a flat-head screwdriver, remove the
damper assembly from the mullion divider until
the wire connector is exposed.
4. Disconnect the motor wire connectors.
5. Damper will be replaced as an assembly.
