– 22 –
GEA00879
Mounting Screws
Mounting Screws
Splash BaffleSplash Baffle

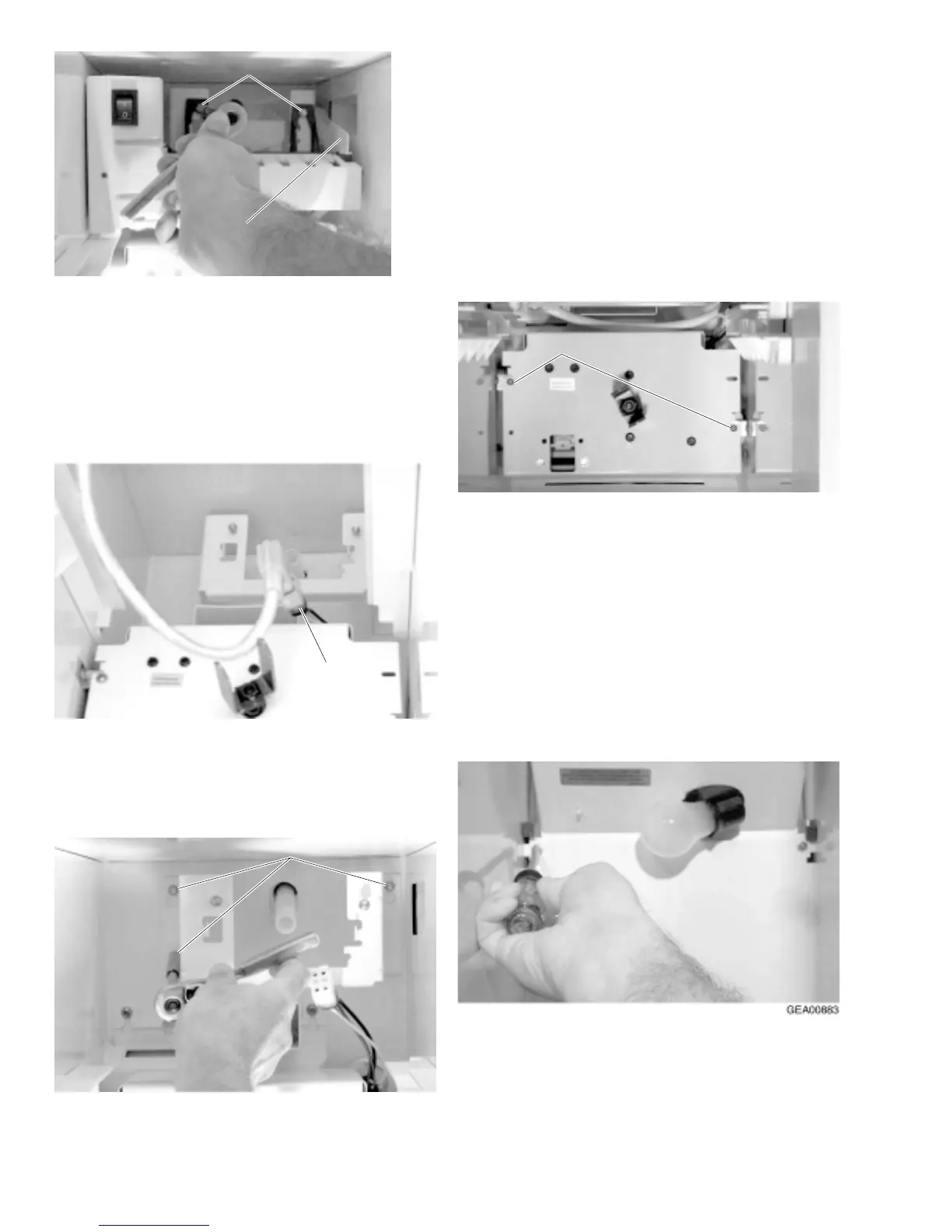

3. Lift up the icemaker and slide it out until the
cable connection is exposed.
Note: When replacing the icemaker, the fill cup
and splash baffle must be reused.
4. Disconnect the cable connector.
GEA00880
Cable
Connector
Cable
Connector
5. Loosen 3 screws on the icemaker bracket.
6. Lift up the bracket and slide it out.
GEA00881
3 Screws
3 Screws
Ice Dispenser Drive
The ice dispenser drive turns the ice dispenser
auger in either crushed or cube mode.
1. Remove 2 Phillips screws from the ice
dispenser drive.
2. Slide the dispenser out until the cable
connector is visible.
3. Disconnect the cable and remove the
dispenser drive.
GEA00882
2 Screws2 Screws
Evaporator Fan
The evaporator fan, located in the upper portion of
the freezer compartment, circulates cold air
through the fresh food and freezer compartments.
1. Remove auger motor housing.
2. Loosen 4 Phillips screws located in the lower
portion of the evaporator fan duct.
3. Lift up the duct and slide it out.
