– 55 –
Drive Motor
The drive motor is a 1/2 horsepower motor. They
DUHPRGHOVSHFL¿FDQGKDYHDVSHFL¿FGULYHEHOW
The drive belt letter color for this model is white.
This allows the machine to spin up to 800 RPM.
'ULYH0RWRUV'LDJQRVLQJ
The motor requires 120 VAC.

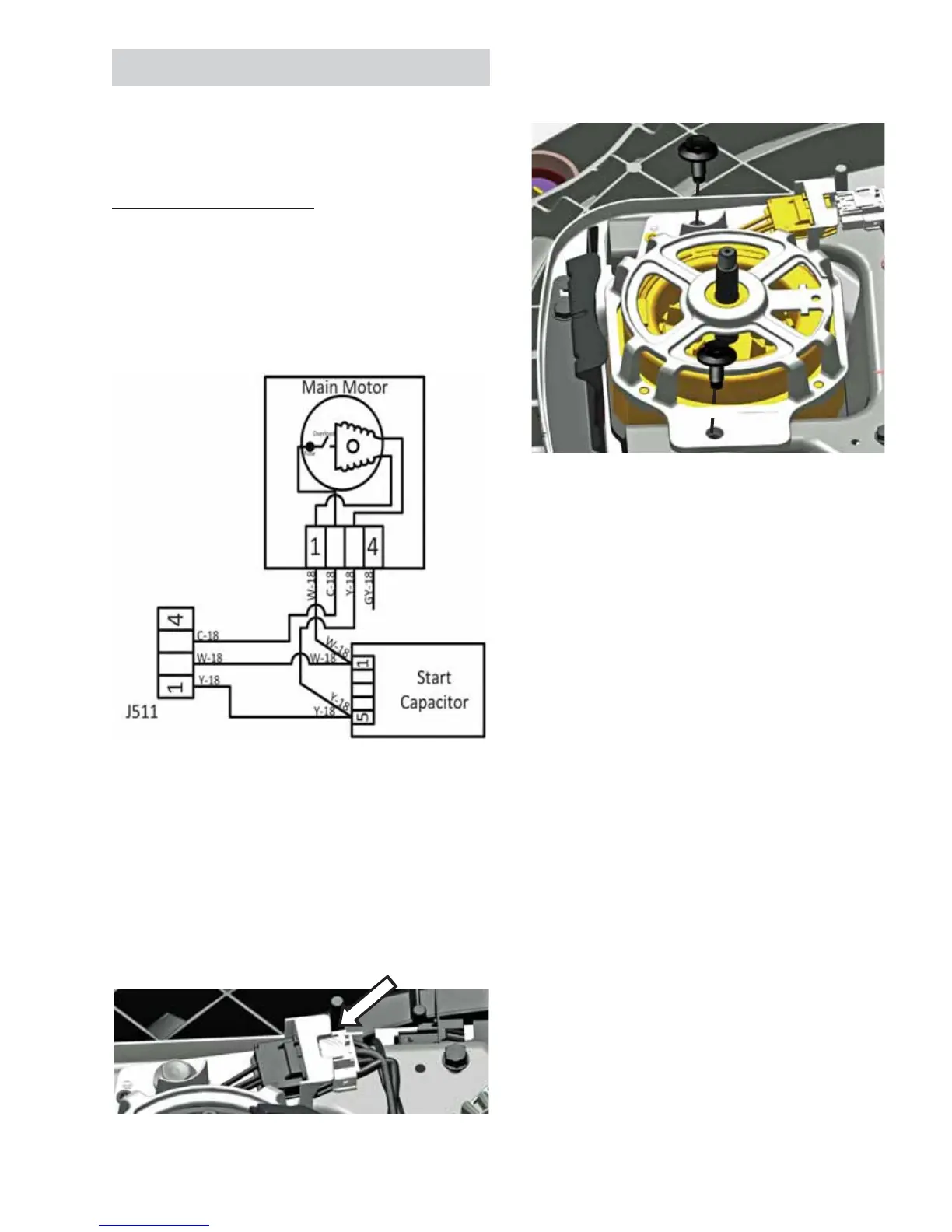

Resistance value from board connector J511 are:
1/2 horsepower motor: brown/white and
brown/yellow should read approximately
3.1 ohms.
Motor Removal
1. Unclip the hall sensor from the motor.
2. Unclip the main harness from the motor
connector by pushing down on the connector
clip. The clip is large enough that it can be
done with one hand. The motor side of the
harness is secured in place.
3. Remove the two 1/2 in. hex bolts that secures
the motor to the platform. When reinstalling
the bolts, torque to 170 in. pounds.
,PSRUWDQWIf removing the motor with the washer
leaning back, be sure to support the weight of the
motor, as it will drop away from the platform once
the second bolt is removed.
