GE GTW750CPLDG

– 60 –

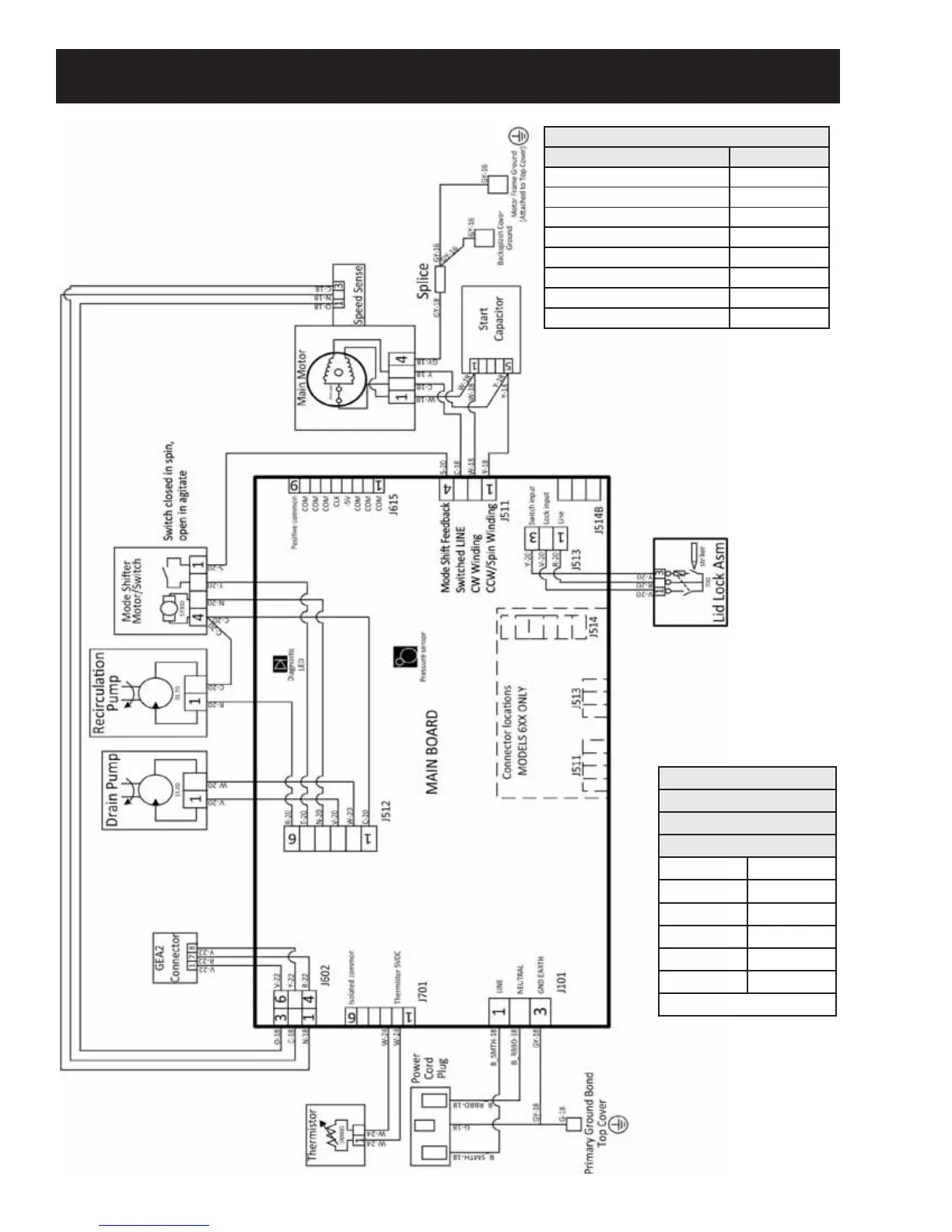

6FKHPDWLFV:LULQJ'LDJUDPV
(Continued Next Page)
Resistance Table
Component 5HVLVWDQFH
Drain Pump 13.2
Lid Lock 70
Mode Shifter 5,700
Motor (1/2 HP) 3.1
Motor (1/3 HP) 3.8
Recirculation Pump 31.7
Water Valves (Cold, Fab_Soft) 1,374
Water Valves (Hot, Rinse) 1,515
Wire Color Key
XX-YY
XX: Wire Color
YY: Wire Gauge
W: White C: Brown
B: Black R: Red
S: Grey P: Pink
N: Blue V: Purple
Y: Yellow O: Orange
G: Green T: Tan
GY: Green with Yellow
