– 18 –

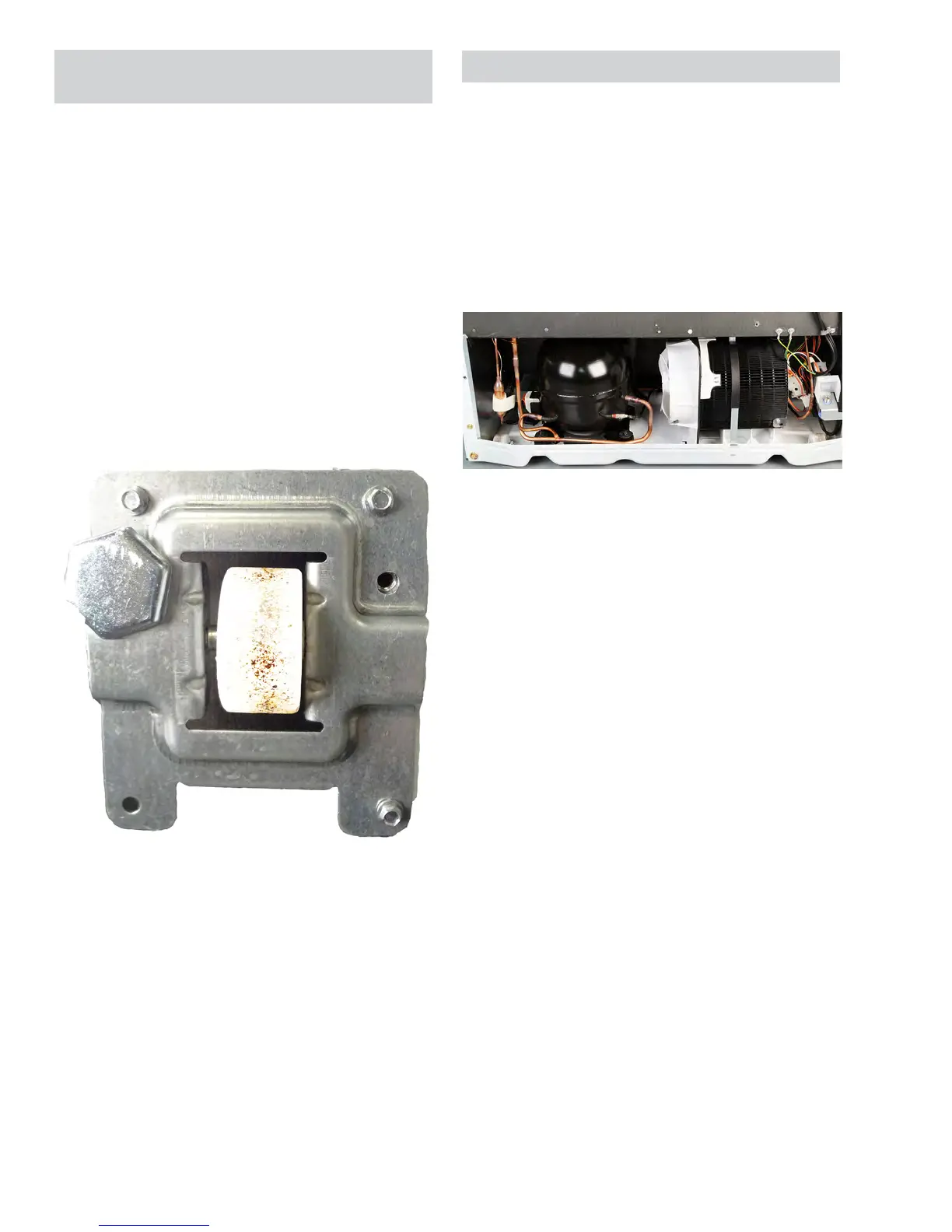

Front Mobility Wheels and Leveling Legs
Removal
Warning: Disconnect power to the refrigerator
prior to servicing the mobility wheel assembly. Also,
before moving the refrigerator from its installation,
make sure that the leveling legs are raised to
prevent damage to the ooring.
1. Remove any items from the Fresh Food
section.
2. Safely tilt the refrigerator back.
3. Remove the three 1/4 in. hex head screws
and remove the mobility assembly.
There are two adjustable legs attached to the
Mobility Wheel assembly. Turn CCW to remove, or
raise the refrigerator and turn CW to re-assemble or
adjust.
Base Pan
The Base Pan is the foundation for the machine
compartment and adds structural strength and
stability to the refrigerator cabinet. It also adds
mobility, and is used for water evaporation. The
base pan supports the following components:
• Compressor
• Condenser/Condenser support
• Condenser fan assembly
• Wire harness
The base pan is fastened to the refrigerator cabinet
with two 3/8 in. hex head screws.
NOTE: The base pan and rear mobility wheels are
not available for replacement.
For more information about machine compartment
components, refer to Machine Compartment
section of this service guide.
