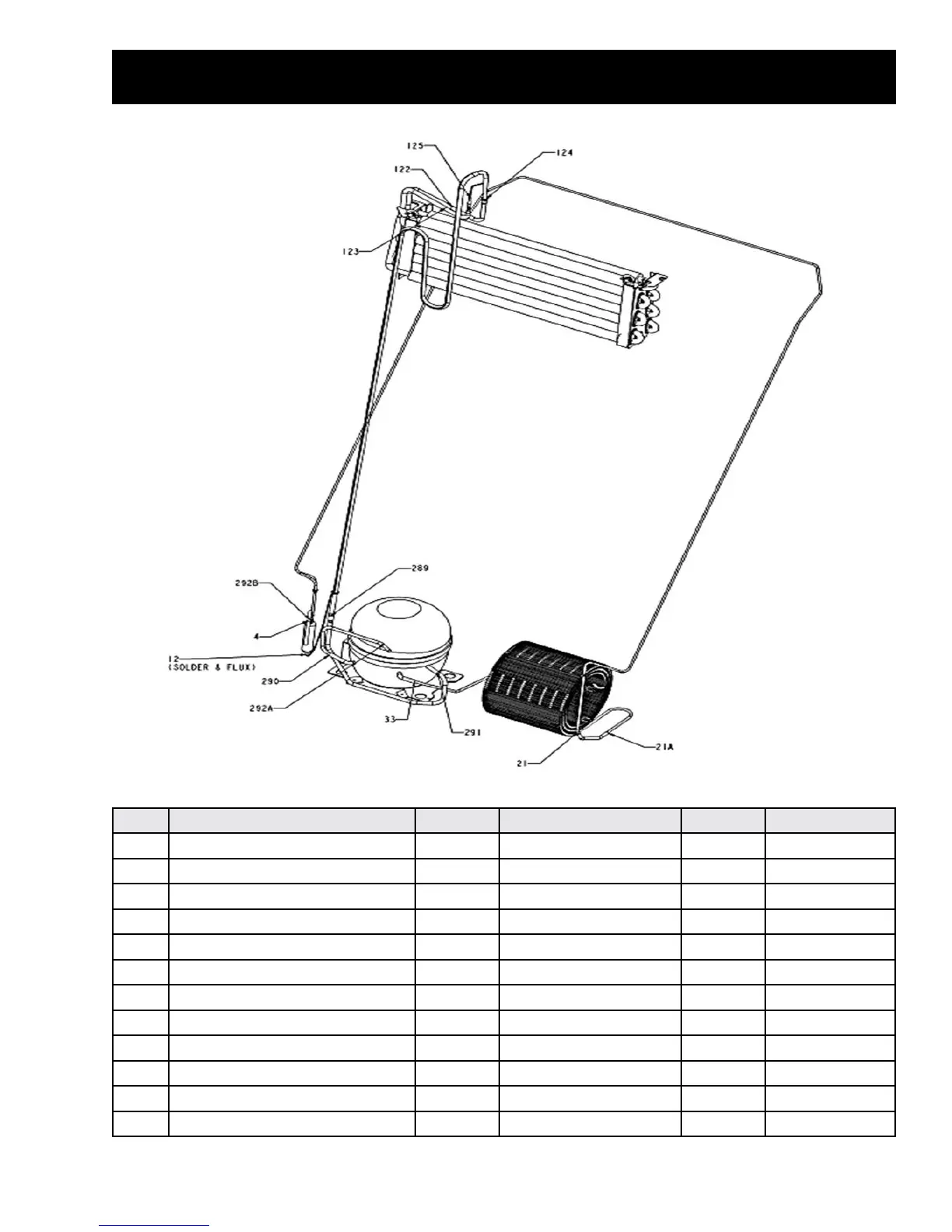

Sealed System Brazed Joints
Joint Connecting Tubing Joint Size Connecting Tubing Joint Size Material
4 (Replacement) Dryer 0.251 HGL (O.D.) 0.156 Copper/Copper
12 (Replacement) Dryer 0.251 Cap Tube (O.D.) 0.076 Copper/Copper
21 HGL Jumper (I.D.) 0.170 HGL (O.D.) 0.156 Copper/Copper
21A HGL Jumper (I.D.) 0.194 Condenser (O.D.) 0.188 Copper/Copper
33 Compressor Discharge port (I.D.) 0.194 Condenser (O.D.) 0.188 Copper/Steele
122 EVAP 0.321 Tube jumper cap (O.D.) 0.312 Copper/Copper
123 EVAP 0.321 Tube jumper Suc (O.D.) 0.312 Copper/Copper
124 Tube Jumper Suc (I.D.) 0.317 Suction tube (O.D.) 0.312 Copper/Copper
125 Tube Jumper cap (I.D.) 0.082 Tube cap (O.D.) 0.076 Copper/Copper
289 Suction Jumper (I.D.) 0.319 Suction tube (O.D.) 0.312 Copper/Copper
290 Compressor Process port (I.D.) 0.256 Process tube (O.D.) 0.250 Copper/Copper
291 Compressor suction port (I.D.) 0.319 Suction Jumper 0.312 Copper/Copper
