– 43 –
Machine Compartment

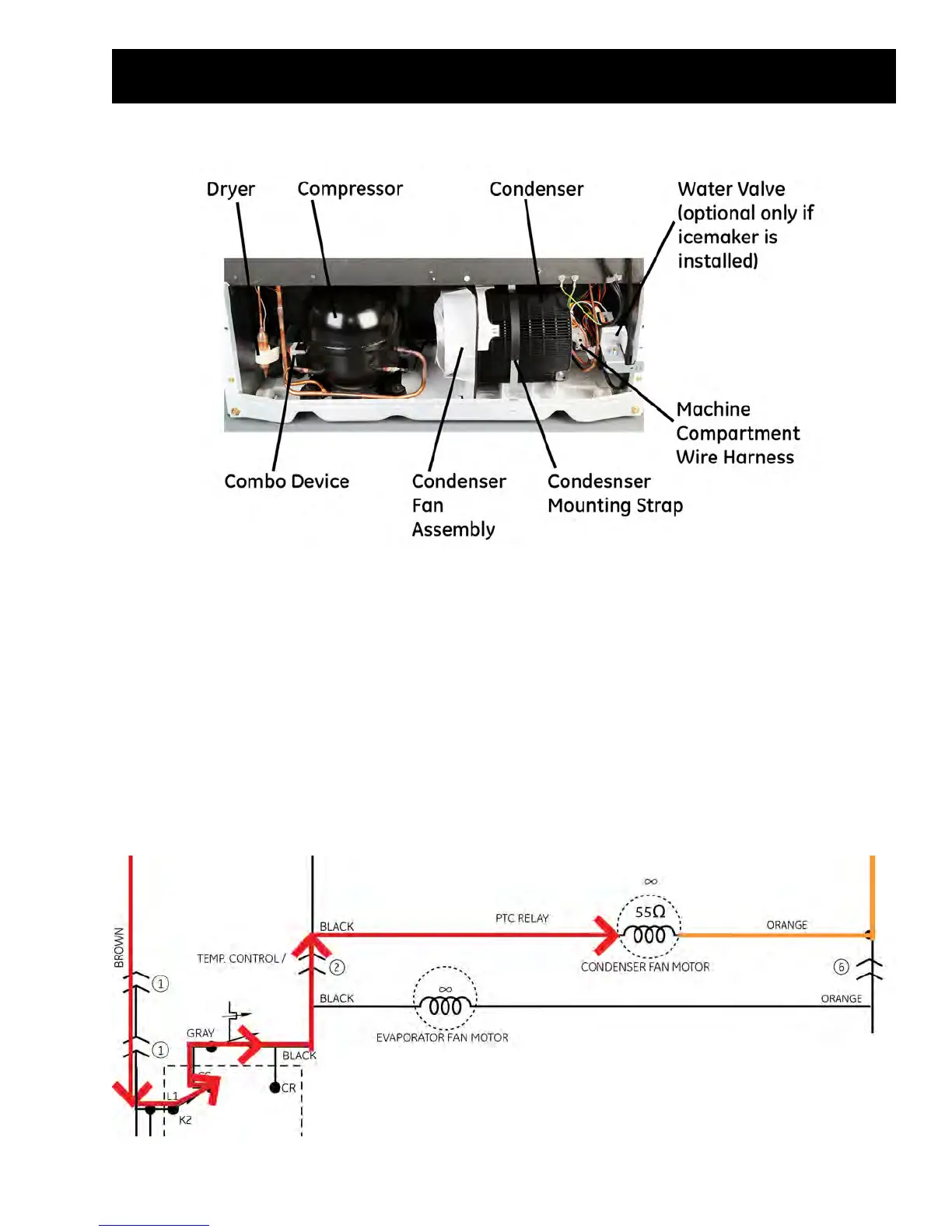

Machine Compartment Components
Condensor Fan
The purpose of the condenser fan is to eciently remove heat from the condenser and compressor.
The condenser fan motor is connected electrically in parallel with the compressor. When the cold control
contacts are closed, the compressor and condenser fan motor are energized simultaneously.
The condenser fan motor is a AC/DC motor; the motor converts AC voltage to DC voltage. The purpose of
using this motor is for energy eciency.
To check the condenser fan motor, safely check for 120 VAC at the fan motor connector BK-OR. If 120 VAC is
present at connector BK-OR and the fan is not operating, replace the fan motor.
Resistance cannot be checked on this device, due to motor design.
*Refer to the model mini manual for the condensor fan motor resistance. (55 Ω / ∞)
