Infinity S (NE-S) Dual Voltage Power System – Quick Start Guide
10
Document 8600243957P Rev 2 Jan 2019
GE
Critical Power
10

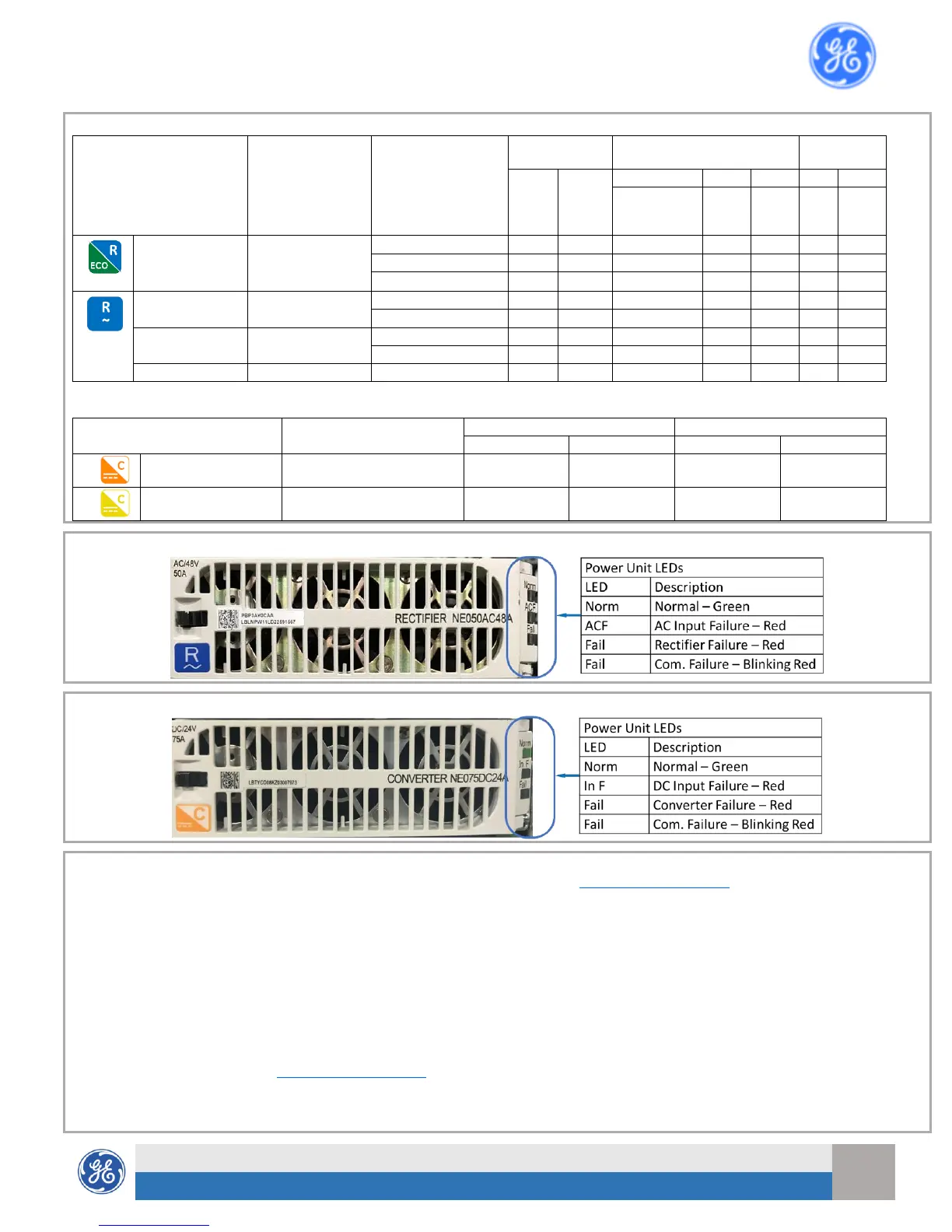

Information – Rectifiers & Converters
Rectifiers
Order Code
Input
DC Output
Recommended AC Breaker 1-
Phase
3-Phase
volts
amps
AC1
(2 rects per
feed)
AC3
AC5
AC6
AC7
NE050ECO48ATEZ
150025074
200-400Vac
48V
50A
40A
20A
20A
40A
20A
100-120Vac
48V
22A
40A
20A
20A
60-300Vdc, 11A max
48V
50A
NE075AC48ATEZ
CC109163473
200-277Vac
48V
75/50A
1
40A
20A
30A
50A
30A
100-120Vac
48V
25A
40A
20A
20A
NE050AC48ATEZ
CC109158878
208-240Vac
48V
50A
40A
20A
20A
40A
20A
100-120Vac
48V
22A
40A
20A
20A
NE050AC48A
CC109124913
200-240Vac
48V
50A
40A
20A
20A
40A
20A
1 75A with AC5 and AC6, 50A with AC1 and AC3.
Converters
Order Code
Input DC
Output DC
Voltage
Current
Voltage
Current
NE075DC24A
CC109142881
48Vdc
54A Max
24Vdc
75A
NE075DC12AZ
150046488
48Vdc
24A Max
12Vdc
75A
Information: Rectifier Status LEDs
Information: Converter Status LEDs
Specifications and Application
Specifications and ordering information are in the Infinity S Ordering Guide available at www.gecriticalpower.com
External Surge Protective Device (SPD) is required on all AC inputs.
Equipment and subassembly ports:
1. are suitable for connection to intra-building or unexposed wiring or cabling;
2. can be connected to shielded intra-building cabling grounded at both ends.
Grounding / Bonding Network – Connect to an Isolated Ground Plane (Isolated Bonding Network) or an Integrated Ground Plane (Mesh-Bonding
Network or Common Bonding Network).
Installation Environment - Install in Network Telecommunication Facilities, OSP, or where NEC applies.
Battery return may be either Isolated DC return (DC-I) or Common DC return (DC-C).
Reference Documents
These documents are available at www.gecriticalpower.com.
Document Title
CC848815341 Galaxy Pulsar Plus Product Manual
Infinity S Ordering Guide (aka product line brochure)
