Infinity S (NE-S) Dual Voltage Power System – Quick Start Guide
Document 8600243957P Rev 2 Jan 2019
Information: AC Cord Options
Molex mini-fit SR-Style, No Plug
Information: Battery Monitoring Connections

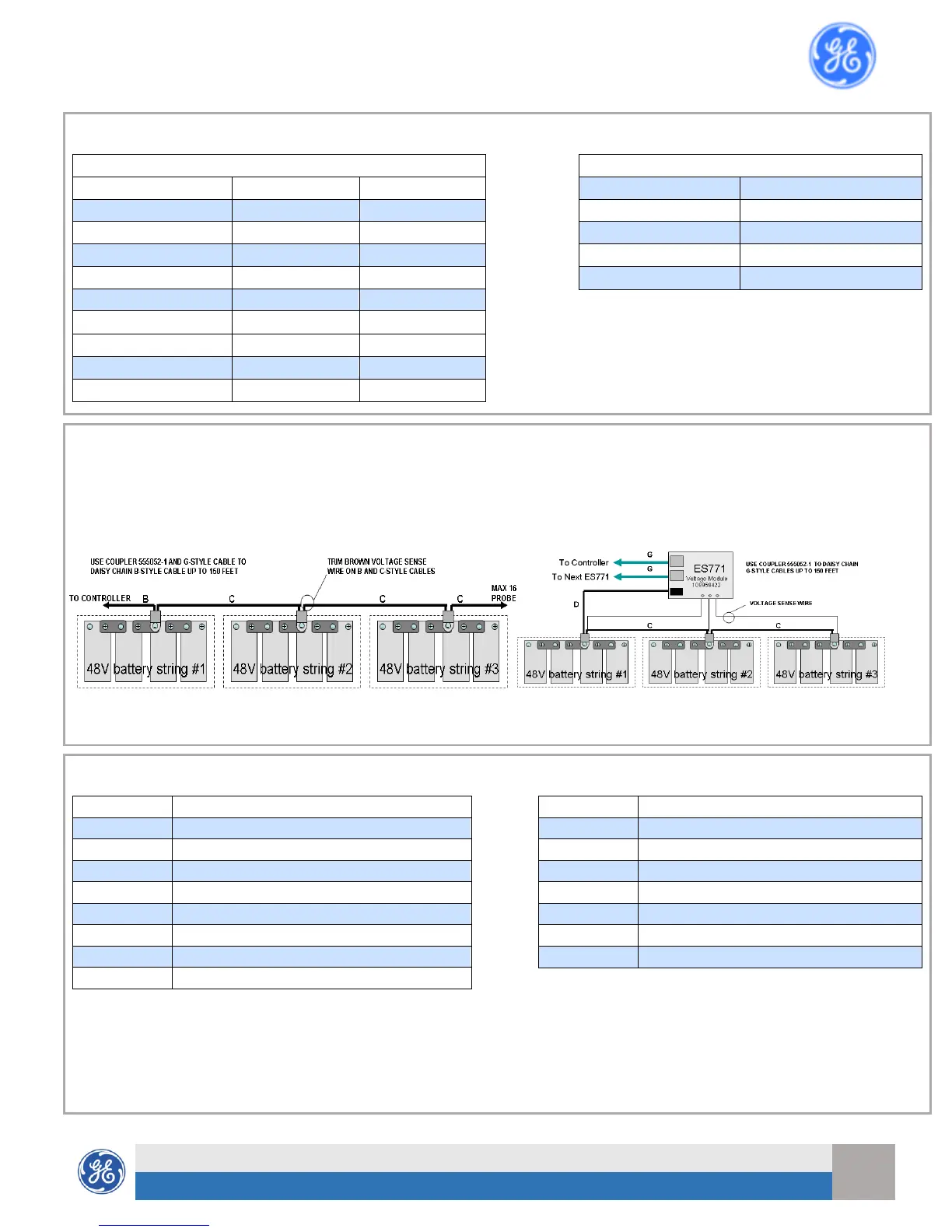

Battery Monitoring is accomplished with a “Daisy Chained” series of probes connected to J2. The Probes monitor battery
temperature and voltage (ES771 required to monitor voltage). Bolt the Probe under the negative terminal connector
hardware; NOT under the connecting lug.
Temperature Measurement Temperature and Voltage Measurement
Information: Battery Monitoring Connections - cables
Temperature Measurement only Temperature and Voltage Measurement
QS873B Ambient Thermal Probe
B 10’ controller to thermal probe wire set
B 20’ controller to thermal probe wire set
C 1’ thermal probe to thermal probe wire set
C 5’ thermal probe to thermal probe wire set
C 10’ thermal probe to thermal probe wire set
C 20’ wire set (thermal probe to thermal probe)
ES771A Voltage Monitor Card
D 2 ½’ ES771A to probe wire set
D 6’ ES771A to probe wire set
D 10’ ES771A to probe wire set
G 4’ ES771A to ES771A or controller wire set
G 10’ ES771A to ES771A or controller wire set
In-Line Coupler (for extending item G above)
To Next Page
