Order codes
A
B
C
X
M-PACT Plus

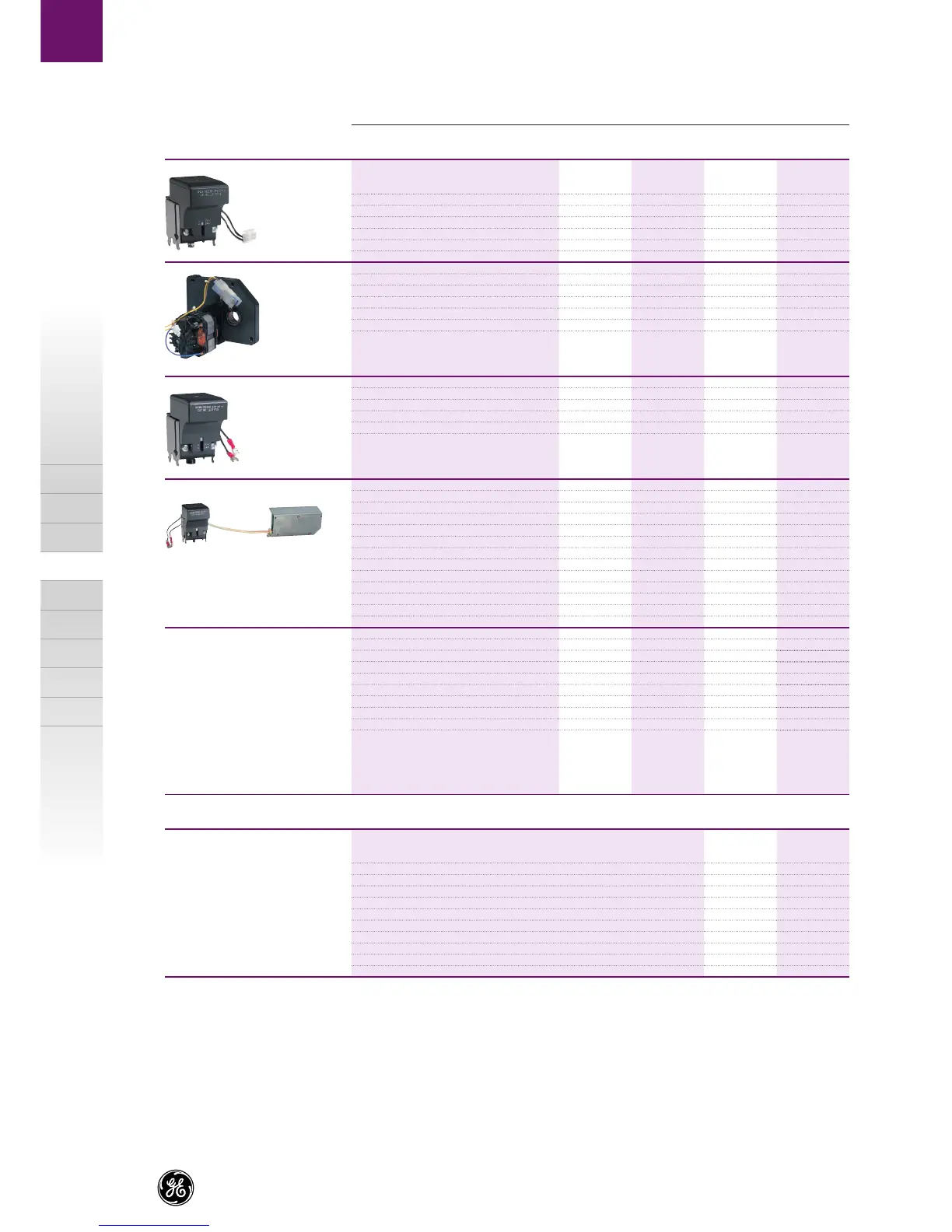

Electrical accessories
MPRO optional features Range Voltage Cat. no. Ref. No.
Shunt Trip (ST)
24/30V DC ST30
405380
48V DC ST48
405382
110/130V AC/DC ST130
405386
220/250V AC/DC ST250
405388
380/440V AC ST440
405389
Motor Operator (MOP)
24/30V DC MOP30
405440
48V DC MOP48
405442
110/130V AC MOP130A
405446
110/130V DC MOP130D
405917
220/250V AC MOP250A
405448
Closing Coil (CC)
24/30 V DC CC30
405420
48 V DC CC48
405422
110/130 V AC/DC CC130
405426
220/250 V AC/DC CC250
405428
Undervoltage release (UV)
24/30V DC UV30
405400
48V DC UV48
405402
110/130V AC UV130A
405406
110/130V DC UV130D
405407
220/250V AC UV250
405408
380/440V AC UV440
405409
Undervoltage release Time Delayed (UVTD)
48V DC UVTD48
406322
110/130V AC UVTD130
406326
220/250V AC UVTD250
405411
380/440V AC UVTD440
405413
Carriage switch Factory fi tted
250V
AC/DC CSWFF
405580
Loose kit form
250V
AC/DC
CSWL
405581
Springs charged signal (x 1NO)
SCC
405450
Springs charged contact (x 1CO)
2WPFC
405451
Trip circuit supervision (shunt trip required)
TRIPCS
406112
Conversion kits
From fi xed to withdrawable version Cat. no. Ref. No.
Type N 3P F1 <1600A FXWD31N16
405666
Type S 3P F1 <1600A FXWD31S16
405667
Type S & N 3P F1 2000/2500 FXWD31SN25
405668
Type S N & H 3P F2 3200A FXWD32SNH32
405669
Type S N & H 3P F2 4000A FXWD32SNH40
405670
Type S 4P F1 <1600A FXWD41S16
405671
Type S & N 4P F1 2000/2500 FXWD41SN25
405672
Type S N & H 4P F2 3200A FXWD42SNH32
405673
Type S N & H 4P F2 4000A FXWD42SNH40
405674
Frame 1 & 2
