GE Marquette MAC 5000 User Manual

Revision B7-28

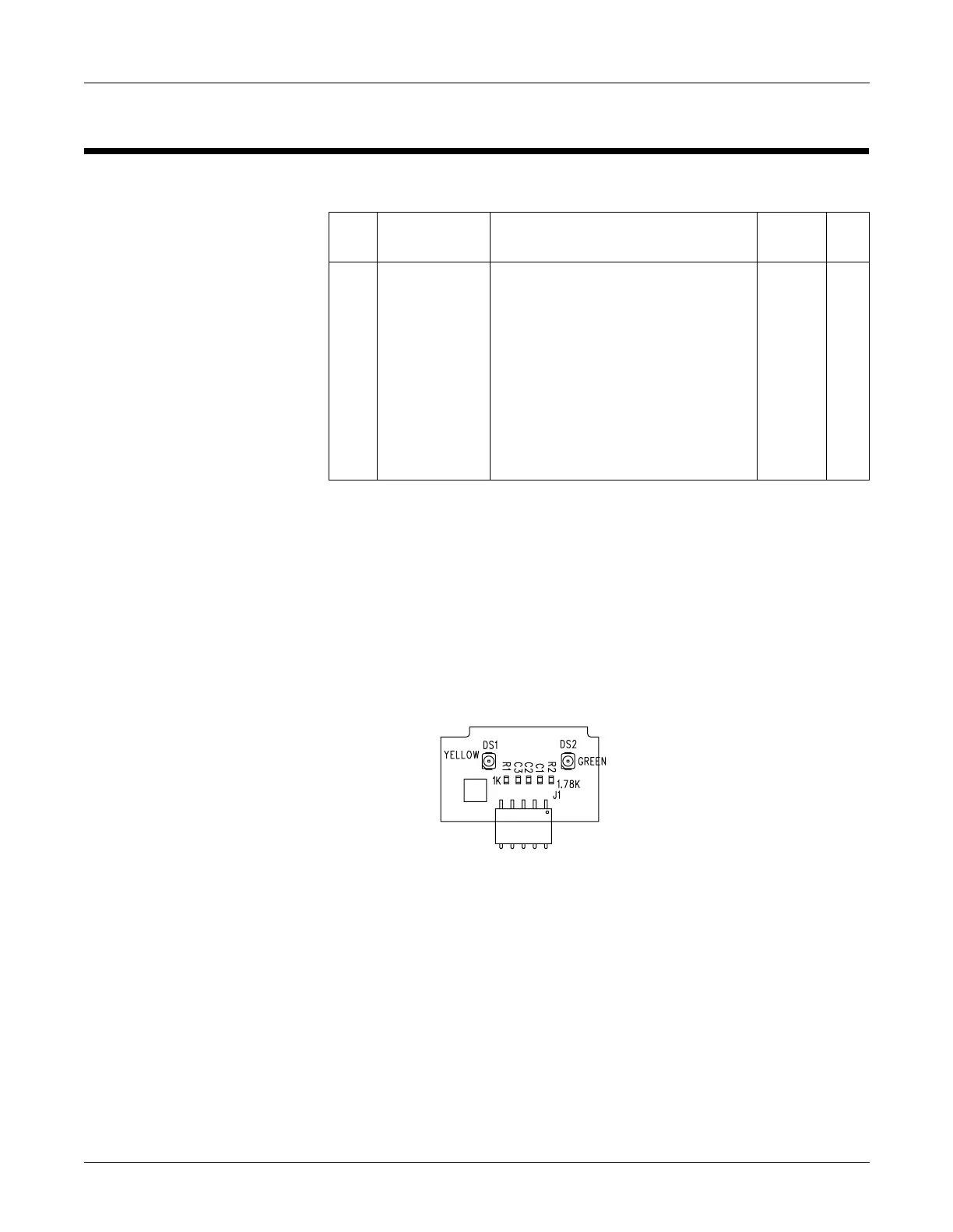

PCB Assemblies: 801222-001A LED PCB
MAC 5000 ECG analysis system
2000657-002
801222-001A LED PCB
Find
Num
Item Number Item Description Ref Des Qty
1 410334-008 RES SM CER 0603 1K 1% 1/16W R1 1
2 410334-250 RES SM 0603 1.78K 1% 1/16W R2 1
4 411843-002 CONN FRICTION LK RA .1CTR 5P 1
5 421205-001 LED YELLOW HYPER-BRIGHT TOPLED DS1 1
6 421205-002 LED PURE GREEN TOPLED LAMP DS2 1
7 801223-001 CKT BD LED MAC 5000 1
8 SD801222-001 SCHEM LED BOARD MAC 5000 0
Note: C1, C2, C3 are not installed.
