Equipment Overview: Preparation for Use
MAC 5000 resting ECG analysis system
2000657-002
Preparation for Use
Trolley Assembly

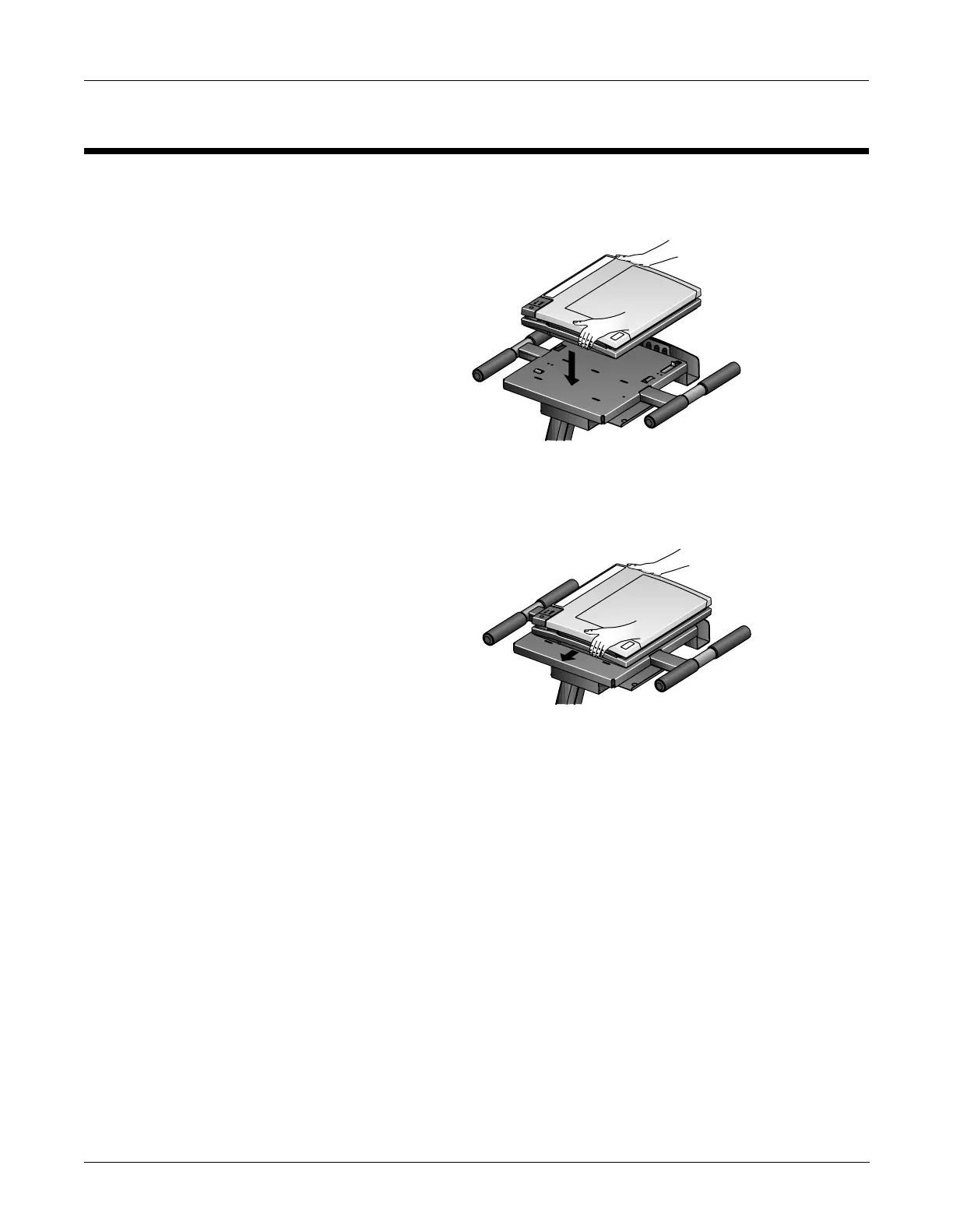

1. Mount the unit to the optional trolley by lining up the left edge
of the unit to the two slots at the left edge of the trolley.
2. Place the unit on the trolley surface, then slide it to the left until
the tabs click and the unit is firmly in place on the trolley.
3. From under the trolley, tighten two captive screws.
1
MD1325-171A
2
MD1325-172A
