GE Marquette MAC 5000 - Controls and Indicators

Revision B2-8
Equipment Overview: Preparation for Use
MAC 5000 resting ECG analysis system
2000657-002
Controls and Indicators

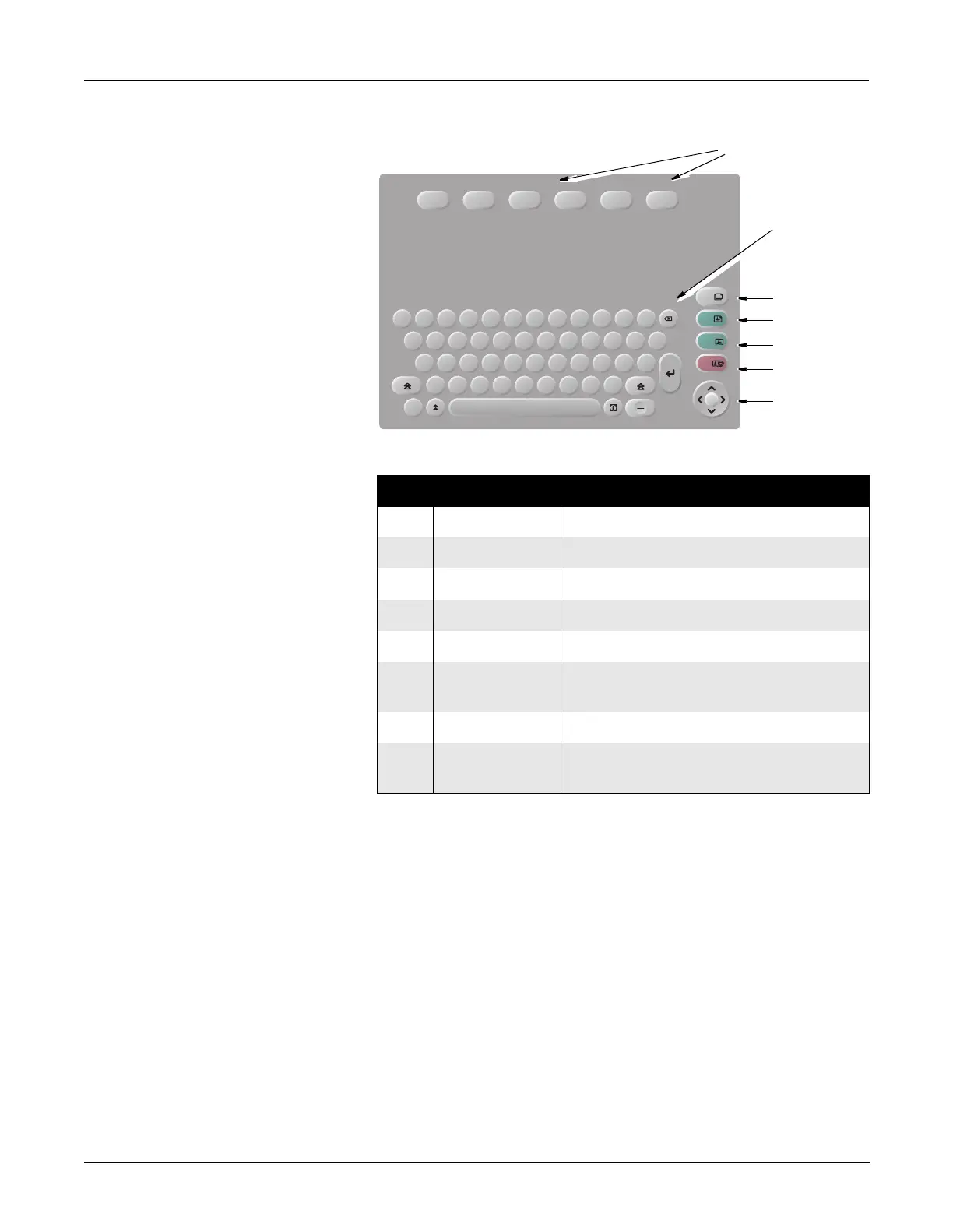

Table 2-2. Keypad
Item Name Description
A function keys Selects screen menu functions
B delete Erases typed characters
C copy Prints another ECG report
D ECG Acquires an ECG
E rhythm Prints continuous ECG data (This data cannot
be stored or transmitted.)
F stop Stops the writer from printing
G arrow pad Moves the cursor left, right, up, down and
selects a highlighted menu or screen item.
!
"
