Note
Power on and off are marked with a vertical line
in the graphic trends.
↓
ECG SpO2
etCO2
QRSPulse
Tone
OFF
Next
Menu

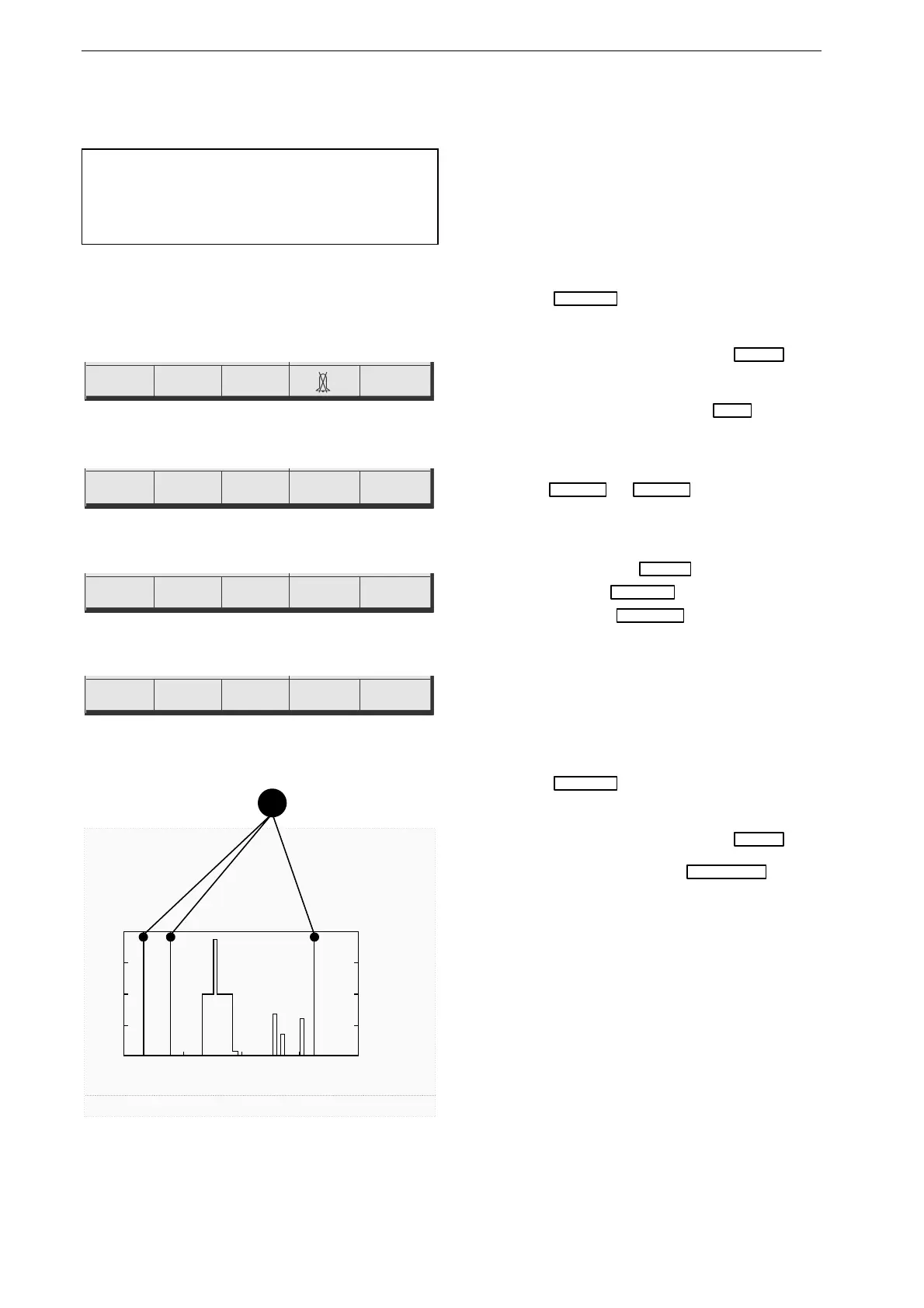

Figure 11-6. Main menu
↓
Filter
ON
Assign
Channel
Waveform
DisplayMemory
Previous
Menu
Figure 11-7. Main menu, page 2
↓
Event
Text
Trend Playback
Clear
Memory
Previous
Menu
Figure 11-8. Memory menu
↓ ↓ ↓ ↓
Print
HR
Trend
4 h
Print
etCO2
Previous
Menu
Print
SpO2
Figure 11-9. Trend menu
60min 45min 30min 15min 0min
0
60
120
HR BPM
Patient..........................:
Date of birth.................:
User..............................:
Comments....................:
TREND 01.10.99
a
Figure 11-10.Graphic trend
a
device OFF
Trend Memory
In the trend memory the device collects the HR,
SpO
2
and etCO
2
values of the past 4 hours. The
trend data, too, are automatically updated. The
stored data can be printed out in the form of
graphic trends. You can choose between a 1-hour
and a 4-hour trend window.
•
Press
F5
Next Menu
in the main menu to display
page 2 (Figure 11-7).
•
Display the memory menu with
F3
Memory
(Figure 11-8).
•
Display the trend menu with
F2
Trend
(Figure
11-9).
•
In the trend menu (Figure 11-9), select the time
window
Trend 4 h
or
Trend 1 h
with
F4
.
•
The following graphic trends are now available
for printing:
−
heart rate with
F1
Print HR
,
−
SpO
2
with
F2
Print SpO2
,
−
etCO
2
with
F3
Print etCO2
.
Clearing the Memories
The memories cannot be cleared individually, all
of them are cleared in one pass .
•
Press
F5
Next Menu
in the main menu to display
page 2 (Figure 11-7).
•
Display the memory menu with
F3
Memory
.
•
Clear the memories with
F3
Clear Memory
. Keep
the button depressed until the text disappears.
