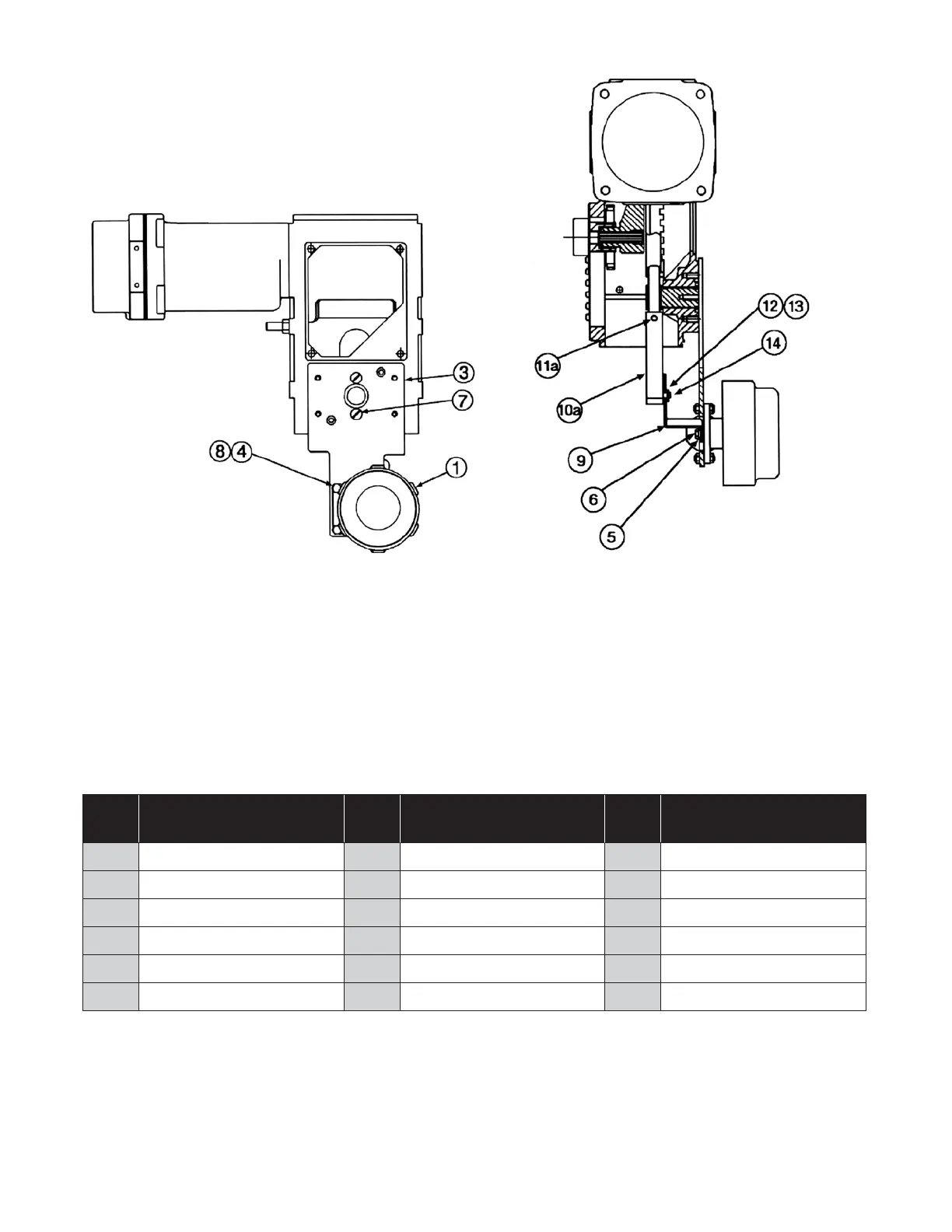

Figure 4
35002 Series Camflex II
30000 Series Varimax
Ref.
No.
Description
Ref.
No.
Description
Ref.
No.
Description
1 496 Rotary Switch 7 Flat Head Screw 11 Cap Screw
2 Bottom Cover* 8 Hex Nut 11a Set Screw
3 Mounting Bracket 9 Back Lever 12 Lever Pin
4 Cap Screw 10 Lever 13 Washer
5 Lock Washer 10a Lever 14 Retaining Clip
6 Cap Screw
*Used with 7" Actuator only
