GE Modular MAC Trolley User Manual

Maintenance
ReplacingtheModularorMAC1600Top
Thisprocedureappliestoalltrolleystyles.
Beforeremovingthetopfromthetrolleycolumn,theMACunitneedstoberemoved.
See“RemovingtheMACUnitfromtheModularMACTrolley”onpage22forinstructions
onremovingtheMACfromtheModularMACTrolley.See“RemovingtheMACUnit
fromtheMAC1600Trolley”onpage23forinstructionsonremovingtheMACfromthe
MAC1600Trolley.
OncetheMACunitisremoved,usethefollowingproceduretoremovethetrolleytop.
1.Usingthe1/2"socketwrenchsuppliedwiththetrolley,removethefour5/16-18
x1"angedHHCSthatsecurethetoptothetrolleycolumn.

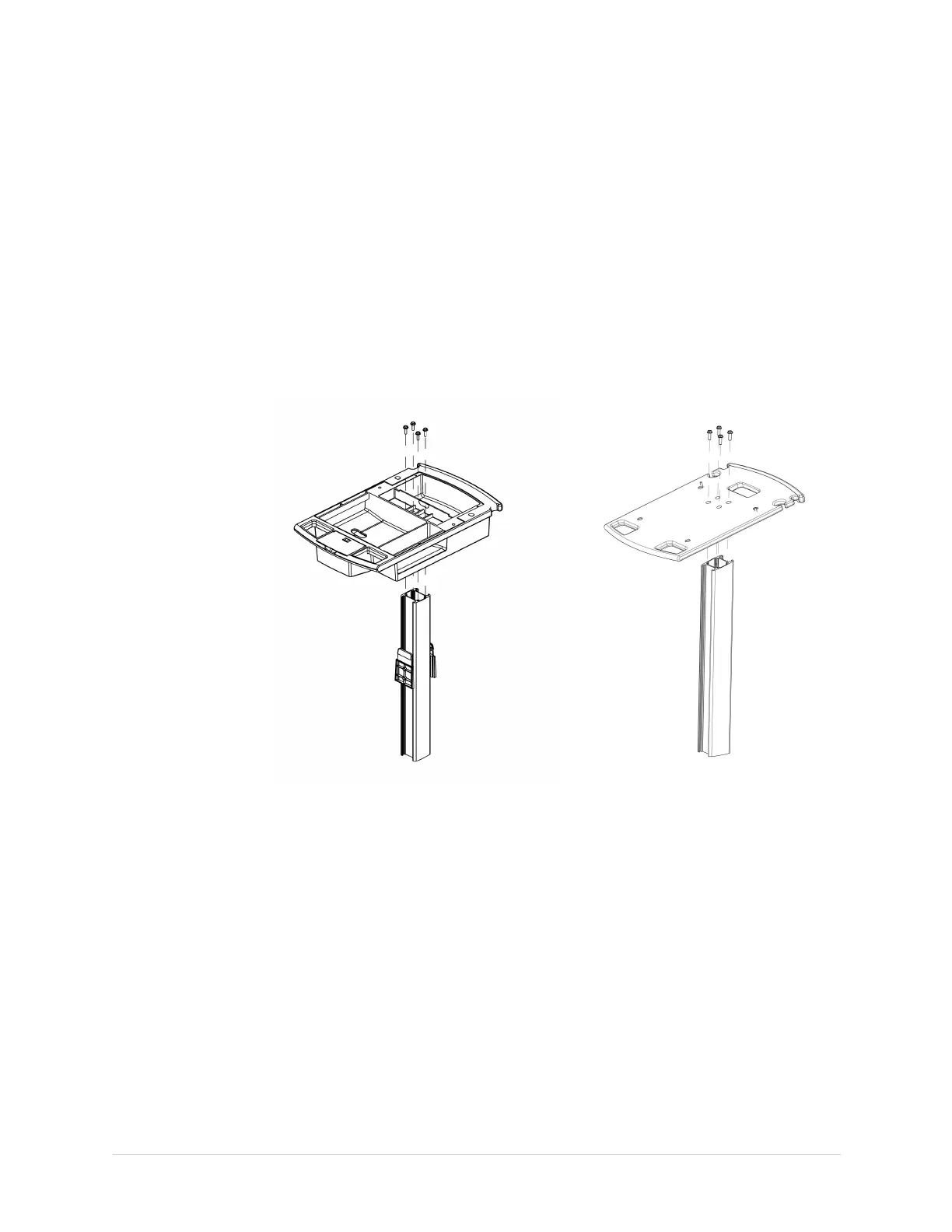

TopforModularMACTrolleyTopforMAC1600Trolley
Retainthescrewsforlaterreattachmentofthetoptothecolumn.
2.Removethetopfromthecolumn.
3.Performtherequiredmaintenance.
4.Positionthetopoverthecolumnandaligntheholeswiththeholesinthecolumn.
5.Usingthe1/2"socketwrenchsuppliedwiththetrolley,insertthefour5/16-18x
1"angedHHCSandtightenthehardware.
6.Afterattachingthetoptothetrolleycolumn,reattachtheMACunit.
•See“RemovingtheMACUnitfromtheModularMACTrolley”onpage22for
instructionsonreplacingthedeviceontheModularMACTrolley.
•See“RemovingtheMACUnitfromtheMAC1600Trolley”onpage23for
instructionsonreplacingthedeviceontheMAC1600Trolley.
7.Replacetheequipmentthatwasremovedandreconnectpowercablestothe
equipmentonthetrolley.
24
MAC™ECGTrolley
2044854-012E
