GE Monogram ZDP48N4G Installation Instructions

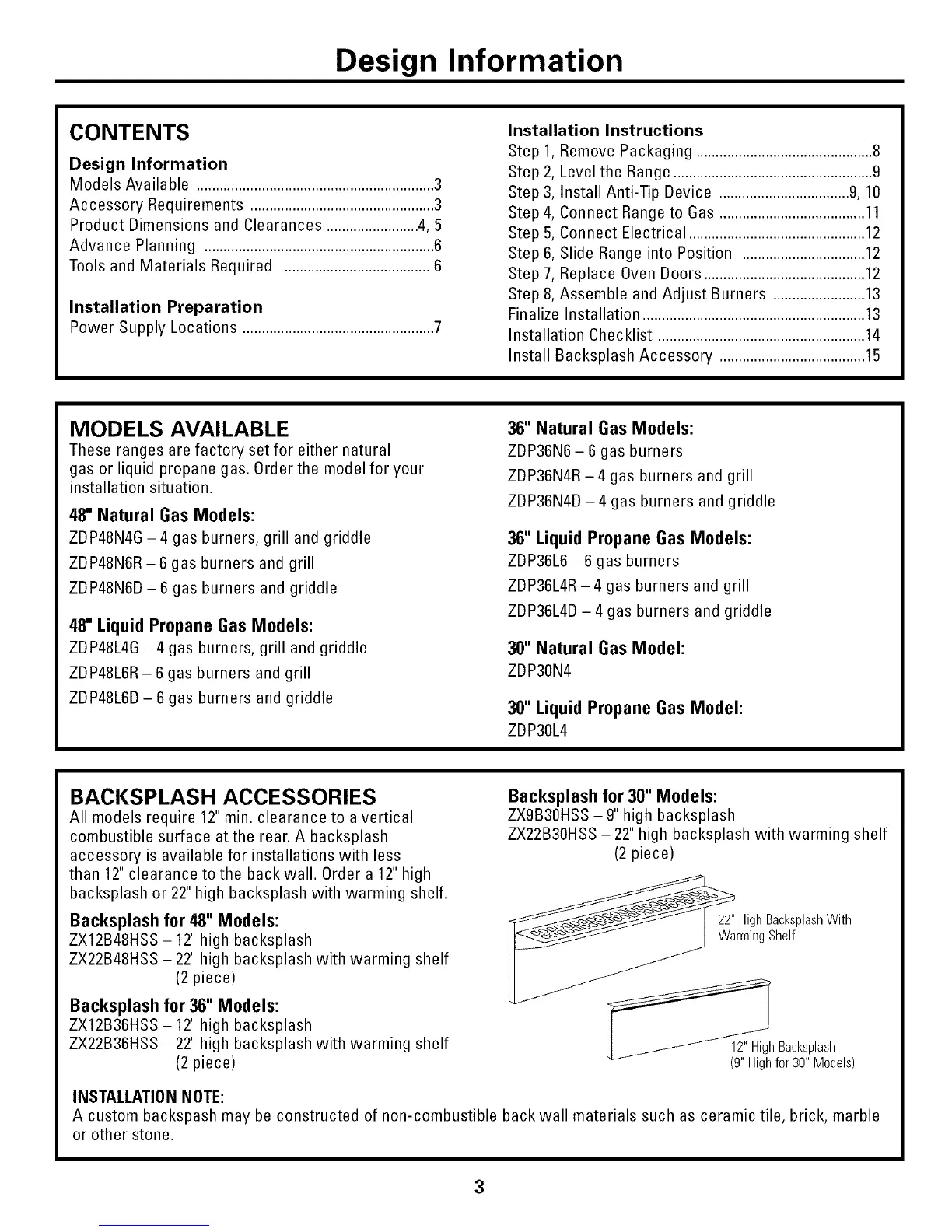

Design Information
CONTENTS
Design Information
Models Available ..............................................................3
Accessory Requirements ................................................3
Product Dimensions and Clearances ........................4, 5
Advance Planning ............................................................6
Tools and Materials Required ......................................6
Installation Preparation
Power Supply Locations ..................................................7
Installation Instructions
Step 1, Remove Packaging ..............................................8
Step 2, Level the Range ....................................................9
Step 3, Install Anti-Tip Device ..................................9, 10
Step 4, Connect Range to Gas ......................................11
Step 5, Connect Electrical ..............................................12
Step 6, Slide Range into Position ................................12
Step 7, Replace Oven Doors ..........................................12
Step 8, Assemble and Adjust Burners ........................13
Finalize Installation ..........................................................13
Installation Checklist ......................................................14
Install Backsplash Accessory ......................................15
MODELS AVAILABLE
These ranges are factory set for either natural
gas or liquid propane gas. Order the model for your
installation situation.
48" Natural Gas Models:
ZDP48N4G -4 gas burners, grill and griddle
ZDP48N6R-6 gas burners and grill
ZDP48N6D -6 gas burners and griddle
48" Liquid Propane Gas Models:
ZDP48L4G - 4 gas burners, grill and griddle
ZDP48L6R- 6 gas burners and grill
ZDP48L6D - 6 gas burners and griddle
36" Natural Gas Models:
ZDP36N6 - 6 gas burners
ZDP36N4R - 4 gas burners and grill
ZDP36N4D - 4 gas burners and griddle
36" Liquid Propane Gas Models:
ZDP36L6 - 6 gas burners
ZDP36L4R- 4 gas burners and grill
ZDP36L4D - 4 gas burners and griddle
30" Natural Gas Model:
ZDP30N4
30" Liquid Propane Gas Model:
ZDP30L4
BACKSPLASH ACCESSORIES
All models require 12" rain. clearance to a vertical
combustible surface atthe rear. A backsplash
accessory is available for installations with less
than 12" clearance to the back wall. Order a 12" high
backsplash or 22" high backsplash with warming shelf.
Backsplash for 48" Models:
ZX12B48HSS - 12" high backsplash
ZX22B48HSS - 22" high backsplash with warming shelf
(2 piece)
Backsplash for 36" Models:
ZX12B36HSS - 12" high backsplash
ZX22B36HSS - 22" high backsplash with warming shelf
(2 piece)
Backsplash for 30" Models:
ZX9B30HSS - 9" high backsplash
ZX22B30HSS - 22" high backsplash with warming shelf
(2 piece)
HighBacksplashWith
helf
12"HighBacksplash
(9" Highfor 30"Models)
INSTALLATION NOTE:
A custom backspash may be constructed of non-combustible back wall materials such as ceramic tile, brick, marble
or other stone.
3
