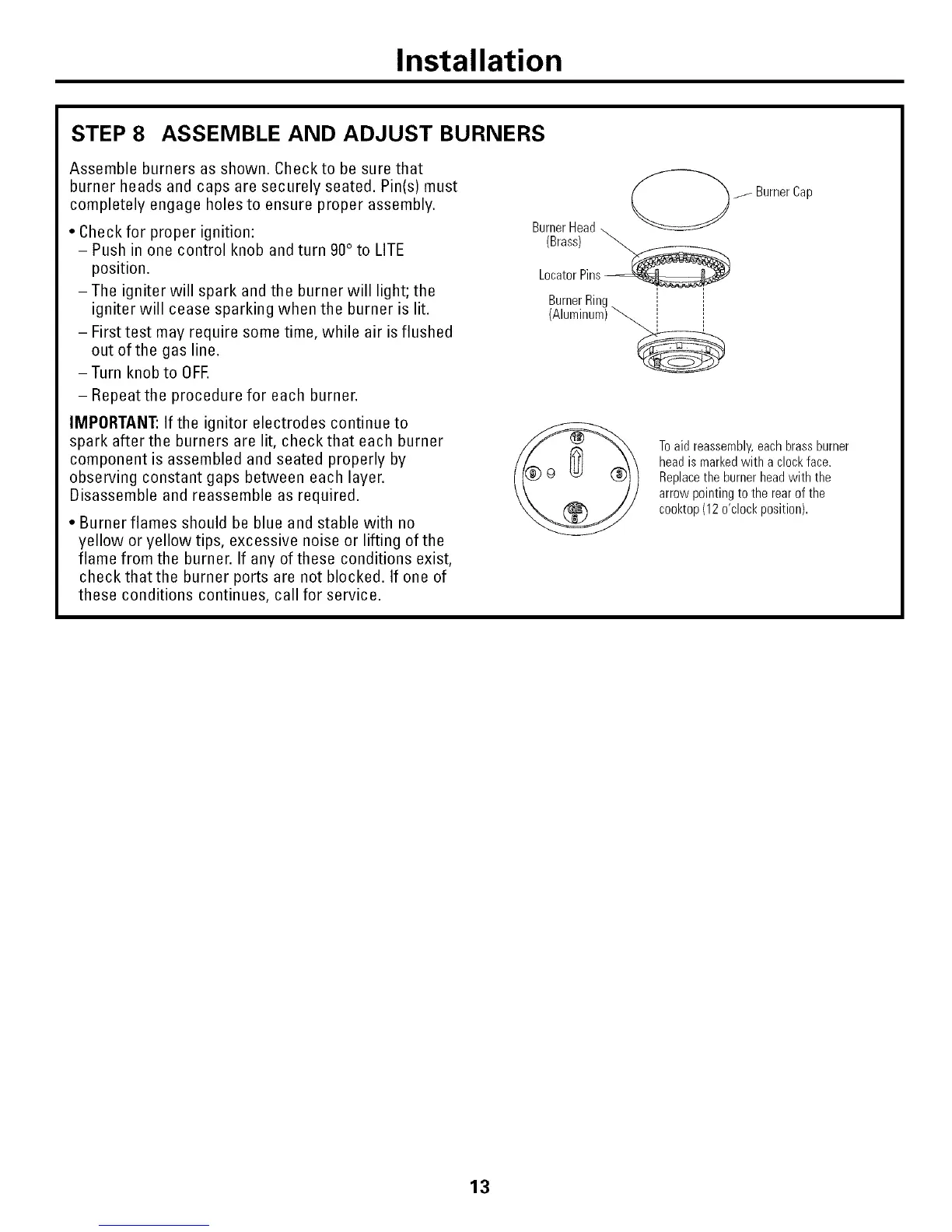

Installation
STEP 8 ASSEMBLE AND ADJUST BURNERS
Assemble burners as shown. Checkto be sure that
burner heads and caps are securely seated. Pin(s) must
completely engage holes to ensure proper assembly.
• Check for proper ignition:
- Push in one control knob and turn 90° to LITE
position.
- The igniter will spark and the burner will light; the
igniter will cease sparking when the burner is lit.
- First test may require some time, while air is flushed
out of the gas line.
- Turn knob to OFE
- Repeat the procedure for each burner.
IMPORTANT: If the ignitor electrodes continue to
spark after the burners are lit, check that each burner
component is assembled and seated properly by
observing constant gaps between each layer.
Disassemble and reassemble as required.
• Burner flames should be blue and stable with no
yellow or yellow tips, excessive noise or lifting of the
flame from the burner. If any of these conditions exist,
check thatthe burner ports are not blocked. If one of
these conditions continues, call for service.
(__ _- Burner Cap
BurnerHead._
(Brass) _
LocatorPins_
Toaid reassembly,eachbrassburner
headis markedwith a clockface.
Replacethe burnerheadwith the
arrow pointingto the rearofthe
cooktop(12o'clockposition).
