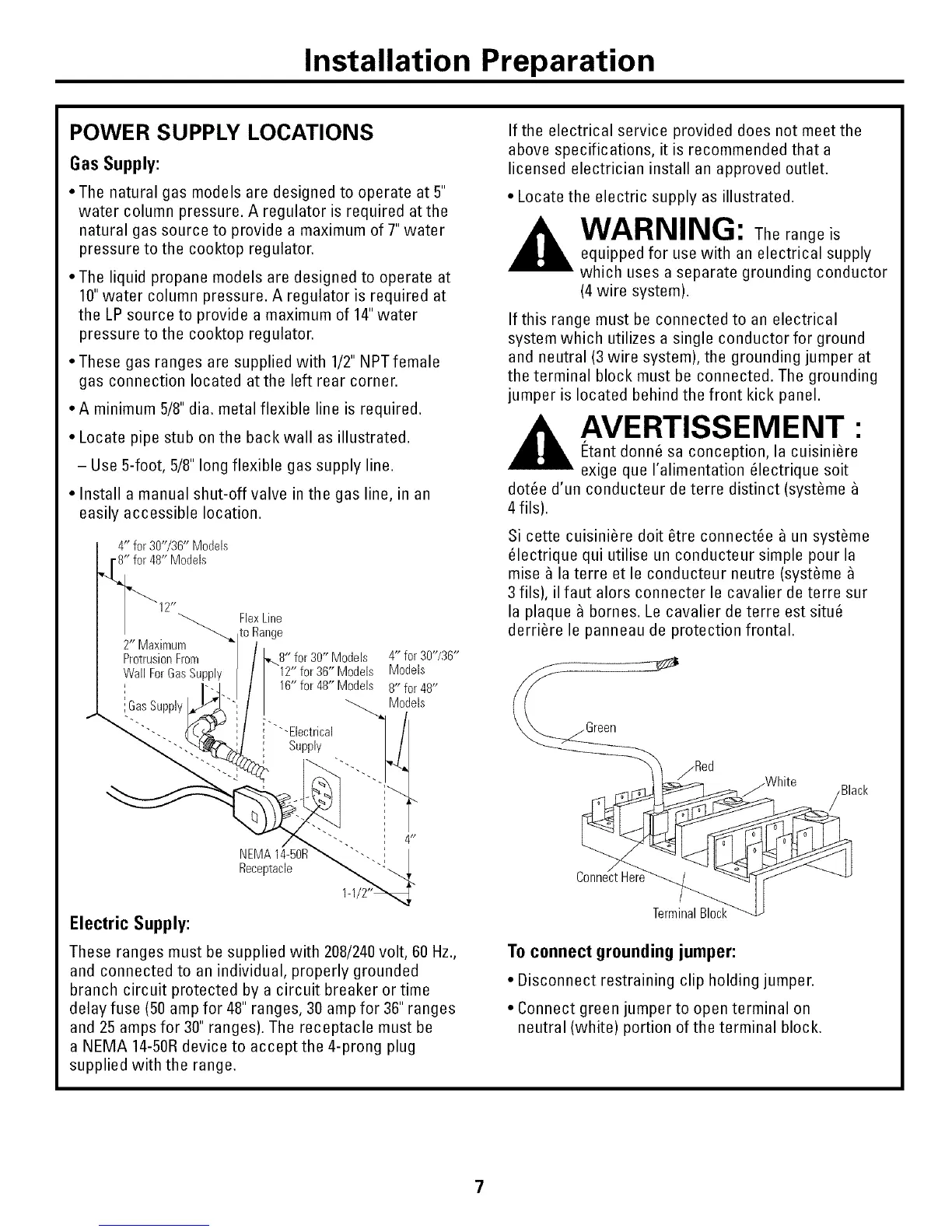

Installation Preparation
POWER SUPPLY LOCATIONS
Gas Supply:
• The natural gas models are designed to operate at 5"
water column pressure. A regulator is required at the
natural gas source to provide a maximum of 7" water
pressure to the cooktop regulator,
• The liquid propane models are designed to operate at
10"water column pressure. A regulator is required at
the LP source to provide a maximum of 14" water
pressure to the cooktop regulator,
• These gas ranges are supplied with 1/2" NPT female
gas connection located atthe left rear corner.
• A minimum 5/8" din, metal flexible line is required,
• Locate pipe stub on the back wall as illustrated.
- Use 5-foot, 5/8" long flexible gas supply line.
• Install a manual shut-off valve in the gas line, in an
easily accessible location.
4" for 30"/36" Models
8" Models
2" FlexLine
toRange
2" Maximum
Protrusion From
Wall ForGas Supply
iGasSupply
8" for 30" Models 4" for 30"/36"
12" for 36" Models Models
16" for 48" Models 8" for 48"
"_ Models
i'"-Electrica, | /I
i Supply /
Receptacle
Electric Supply:
These ranges must be supplied with 208/240 volt, 60 Hz.,
and connected to an individual, properly grounded
branch circuit protected by a circuit breaker or time
delay fuse (50 amp for 48" ranges, 30 amp for 36" ranges
and 25 amps for 30" ranges). The receptacle must be
a NEMA 14-50R device to accept the 4-prong plug
supplied with the range,
If the electrical service provided does not meet the
above specifications, it is recommended that a
licensed electrician install an approved outlet,
• Locate the electric supply as illustrated.
WARNING: The range isequipped for use with an electrical supply
which uses a separate grounding conductor
(4 wire system).
If this range must be connected to an electrical
system which utilizes a single conductor for ground
and neutral (3 wire system), the grounding jumper at
the terminal block must be connected. The grounding
jumper is located behind the front kick panel.
AVERTISSEMENT :
I_tant donn_ sa conception, la cuisini@e
exige que I'alimentation _lectrique soit
dot_e d'un conducteur de terre distinct (syst_me
4 fils).
Si cette cuisini_re dolt _tre connect_e _ un syst_me
_lectrique qui utilise un conducteur simple pour la
mise _ la terre et le conducteur neutre (syst_me
3 fils), il faut alors connecter le cavalier de terre sur
la plaque _ bornes. Le cavalier de terre est situ_
derri@e le panneau de protection frontal.
jWhite /Black
Co
TerminalBlock
To connect grounding jumper:
• Disconnect restraining clip holding jumper.
• Connect green jumper to open terminal on
neutral (white) portion of the terminal block,
To Next Page
