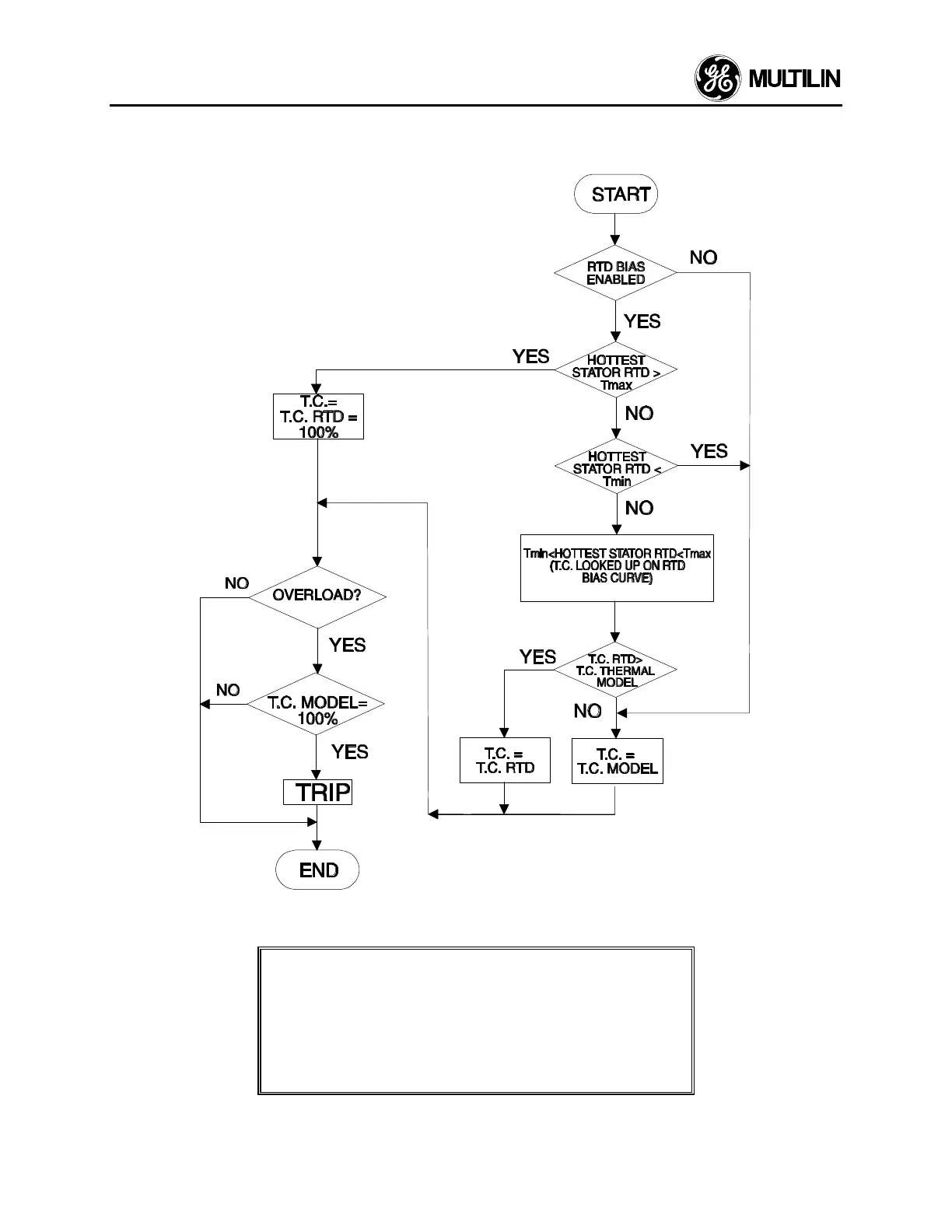

269 RTD Bias Feature
LEGEND
Tmax.............. RTD Bias Maximum Temperature Value
Tmin............... RTD Bias Minimum Temperature Value
Hottest RTD.... Hottest Stator RTD measured
TC.................. Thermal Capacity Used
TC RTD.......... Thermal Capacity Looked up on RTD Bias Curve.
TC Model........ Thermal Capacity based on the Thermal Model
