2 INSTALLATION
2-9

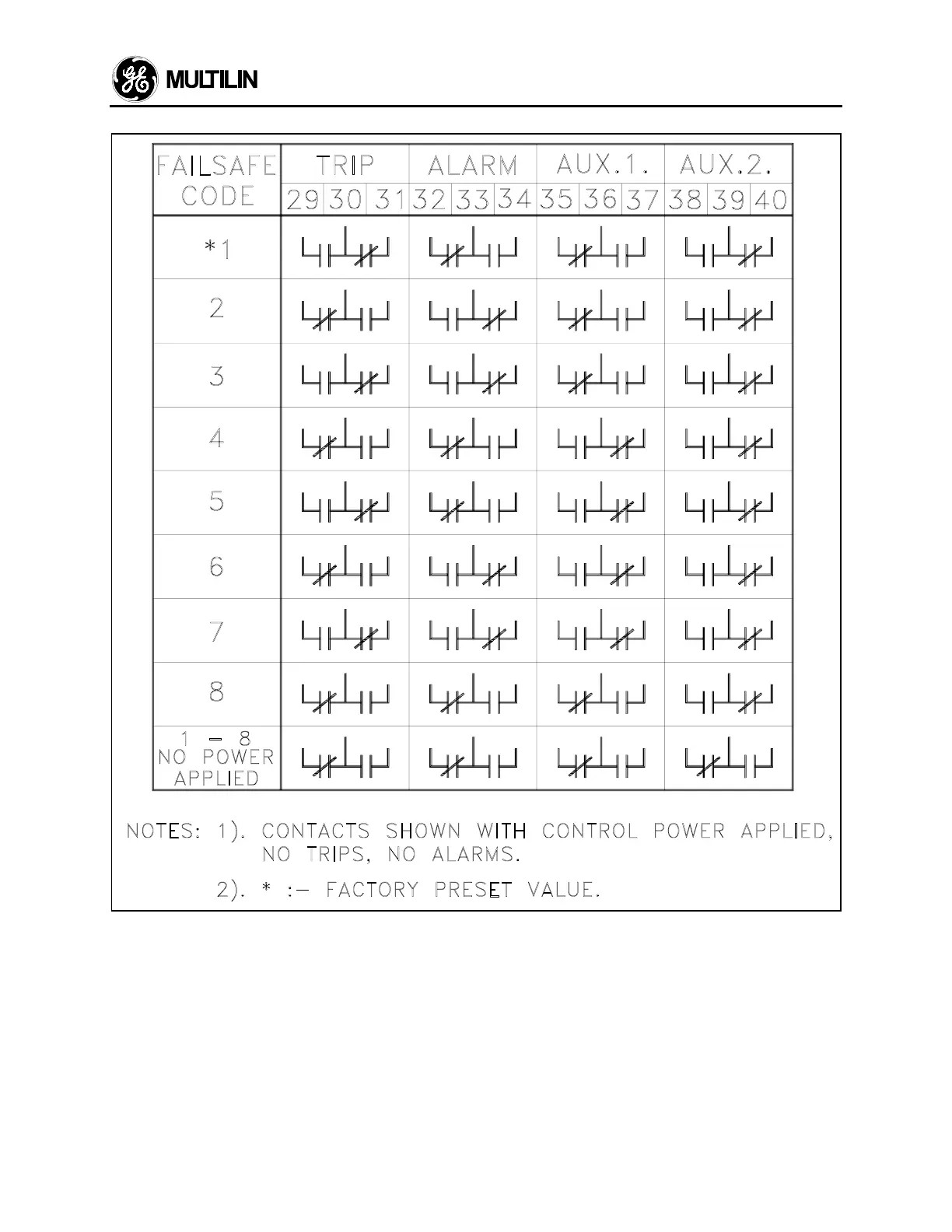

Figure 2.5
Output Relay Contact States
WARNING: In locations where system voltage
disturbances cause voltage levels to dip below the
range specified in the Specifications (1.5), any relay
contact programmed failsafe may change state.
Therefore, in any application where the "process" is
more critical than the motor, it is recommended that
the trip relay contacts be programmed non-failsafe. In
this case, it is also recommended that the AUX2
contacts be monitored for relay failure. If, however,
the motor is more critical than the "process," then the
trip contacts should be programmed failsafe.
