MULTILIN 489 TO 889 RETROFIT KIT – INSTRUCTION MANUAL 1
Multilin 489 to 889 Retrofit Kit
Chapter 1: Overview
GE
Grid Solutions
Over view
1.1 Introduction
Traditionally, retrofitting or upgrading an existing relay has been a challenging and time
consuming task, often requiring re-engineering, panel modifications, and re-wiring. The
Multilin
TM
489 to 889 Retrofit Kit provides a quick 3-step solution to upgrade previously
installed Multilin relays, reducing upgrade costs and minimizing effort.
The Retrofit Kit comes factory assembled and tested as a complete unit with the 889
protection relay. Optional replacement hardware is available (terminal blocks and screws)
for use if the existing hardware is significantly aged or damaged. An optional 3" collar is
available to ensure the depth of the existing and replacement relays matches, eliminating
the need to push or pull cables.
Note
This is an 850 Retrofit model. The 889 Retrofit upper terminal blocks differ somewhat
from what is shown.

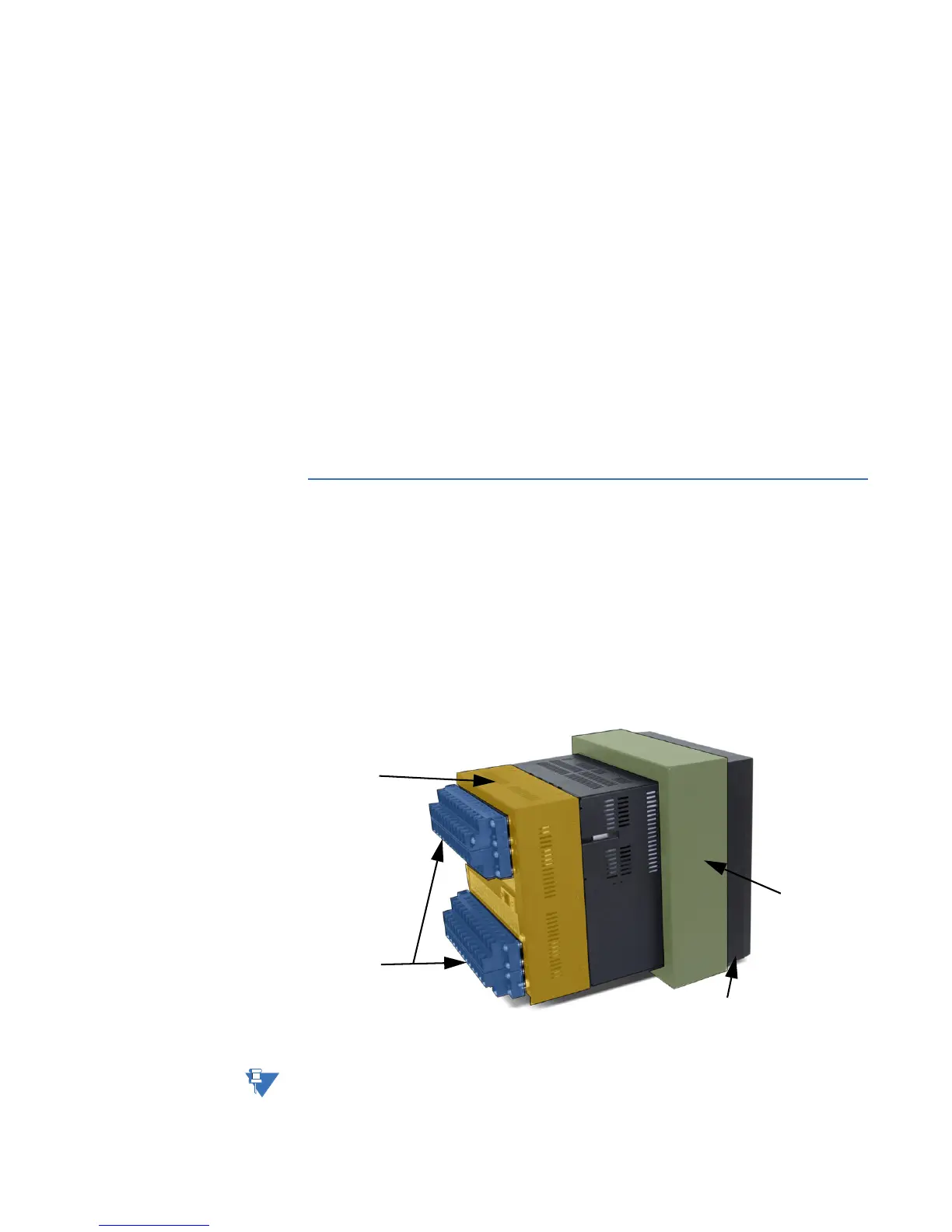

Existing terminal
blocks and wire labels
plug directly in
A factory wired terminal block
frame ensures accurate
mapping of existing terminal
locations to the 889 terminal
block
889 Protection Relay, mapped
to the existing 489 device
3" depth
reduction collar
eliminates the
need to push or
pull cables
