5 BOOTCODE AND FIRMWARE UPGRADE 5.3 FIRMWARE VERSION UPGRADE
5
5.3FIRMWARE VERSION UPGRADE
The relay settings and configuration will be lost, so it is advisable to save them to a file. For firmware revisions
lower than 1.50, it is required to save calibration settings in a file before upgrading the F650 to a new firmware
version. Take into account that if the boot code has been previously upgraded, all the data (including calibration settings)
was lost.
In case of error during the firmware upgrading process, the user could repeat the whole process as many times as
necessary, this is possible thanks to an independent boot memory (bootcode).
The firmware upgrading process should be done using the EnerVista 650 Setup software, after connecting the relay by
Ethernet port (COM3).
5.3.1 FIRMWARE UPGRADE
Once the communication with the relay through Ethernet connection has been verified
1
, enter the EnerVista 650 Setup
program, select Communication and the Upgrade Firmware Version option.
At this point, proceeding with the upgrade will erase all the data stored in the equipment, including the calibration settings in
firmware version previous to 1.50. Therefore, it is necessary to save all settings to a file before following with the process.

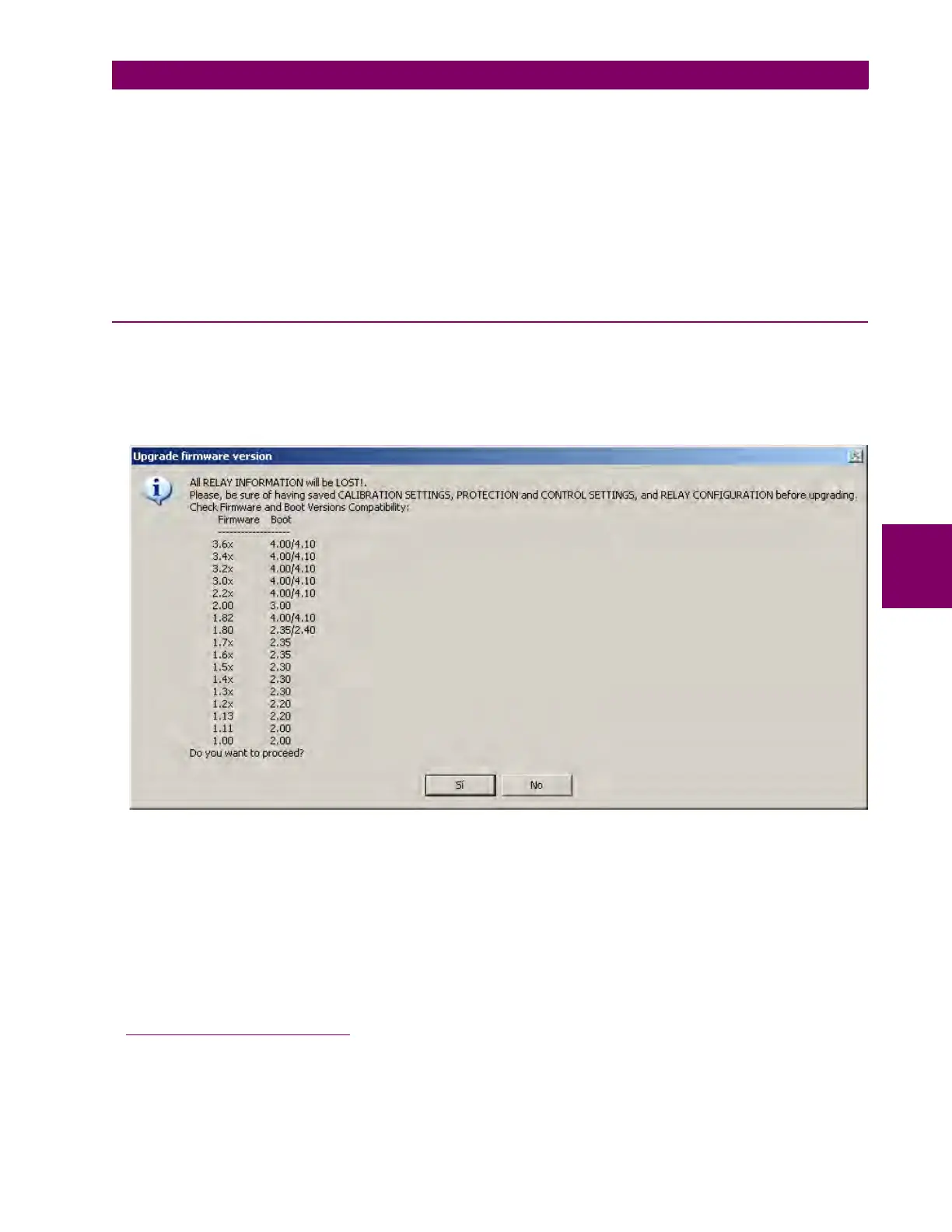

Figure 5–16: FIRMWARE-BOOT VERSION COMPATIBILITY
After accepting to proceed, a window will open up for the upgrade parameter. In firmware version previous to 1.70 the
EnerVista 650 Setup program asks for the IP address of the relay to be upgraded and its serial number. In versions 1.70
and higher it is also necessary to enter the ordering code for the relay. See figure below:
1. Calibration settings should be stored in a file before upgrading the firmware.
Go to EnerVista 650 Setup main menu “Communication > Calibration > Get Calibration Settings”
Store the file in the PC using the relay serial number, for instance, as the name of the file.
