GE P50 Agile P253 - 2.4.8 Configuration Menu

5 Configuration
P50 Agile P253
5-74
P253/EN M/C

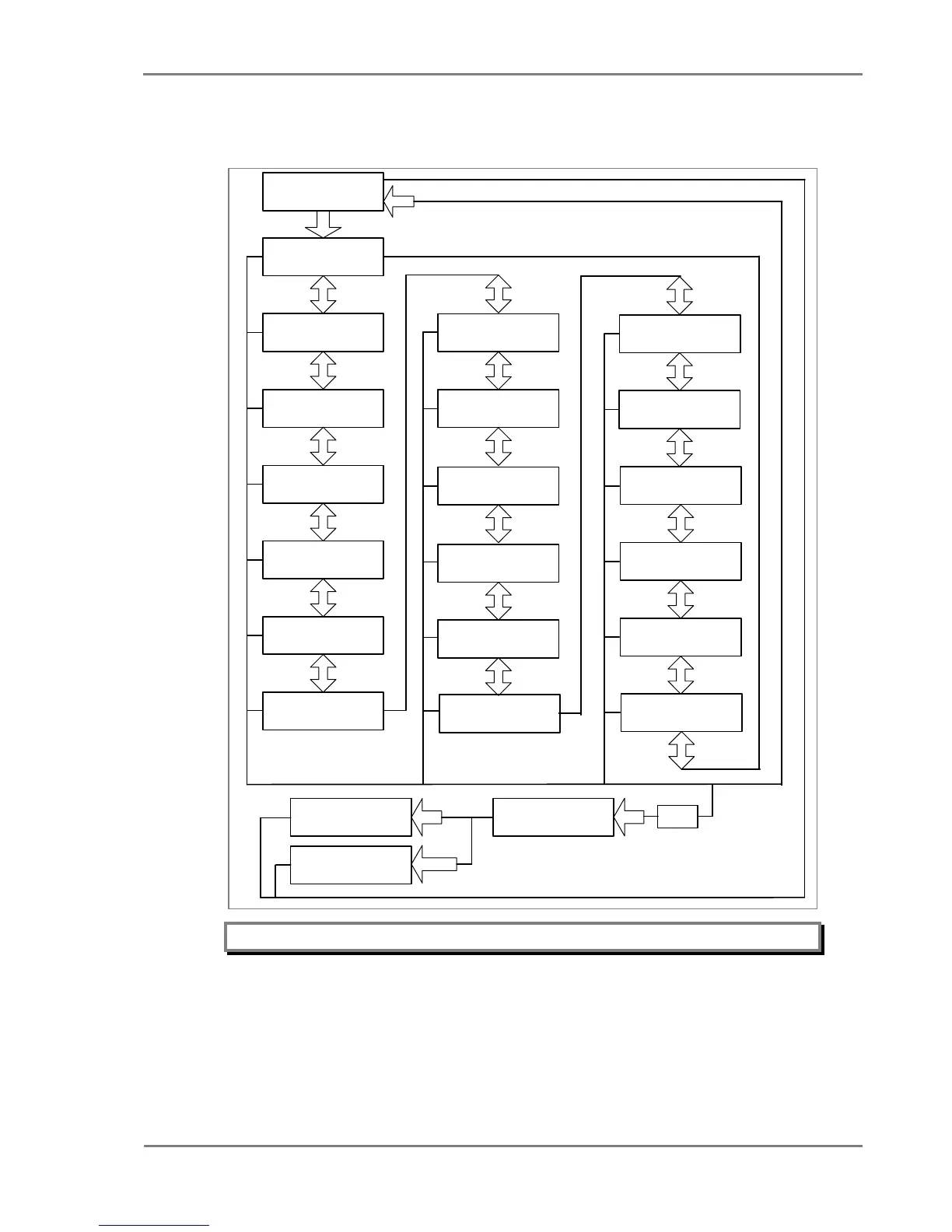

2.4.8 Configuration Menu
2.4.8.1 View / Edit Settings
CONFIGURATION
Restore Defaults
No Operation
Active Settings
Group 1
Copy From
Group 1
Copy To
No Operation
Setting Group 1
Enabled
Setting Group 2
Disabled
System Config
Enabled
Overcurrent
Enabled
Neg Sequence O/C
Enabled
Earth Fault 1
Enabled
Earth Fault 2
Enabled
Thermal Overload
Enabled
CB Fail
Enabled
3 43 4 3 4 3 4 3 4 3 4
3 4 3 4
3 4
Stall Detection
Enabled
3 4
3 4
3 43 4
Limit NB Starts
Enabled
3 4
IFL
1.00
3 4
Measure’t setup
ABC
3 4
3 4
34
3 4
6
SET For Save
CLEAR For Cancel
34
SAVE Settings
SET
CLEAR
DISCARD Settings
EDIT
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*) (*)
(*)
(*)
(*)
(*)
Loss of Load
Enabled
(*)
Setting Values
Secondary
3 4
(*)
Note: (*) indicates EDIT key is used to modify settings. Refer to the View and Edit settings section.
