6 Protection Functions
P253/EN M/C
6-7
ON
OFF
Start
Inhibition
SUPERVISING TIME =60 min
tn = 8 min
INHIB. START TIME =10 min
SUPERVISING TIME – tn = 60 – 8 = 52 min
Motor start
ON
OFF
SUPERVISING TIME =60 min
P0654ENa

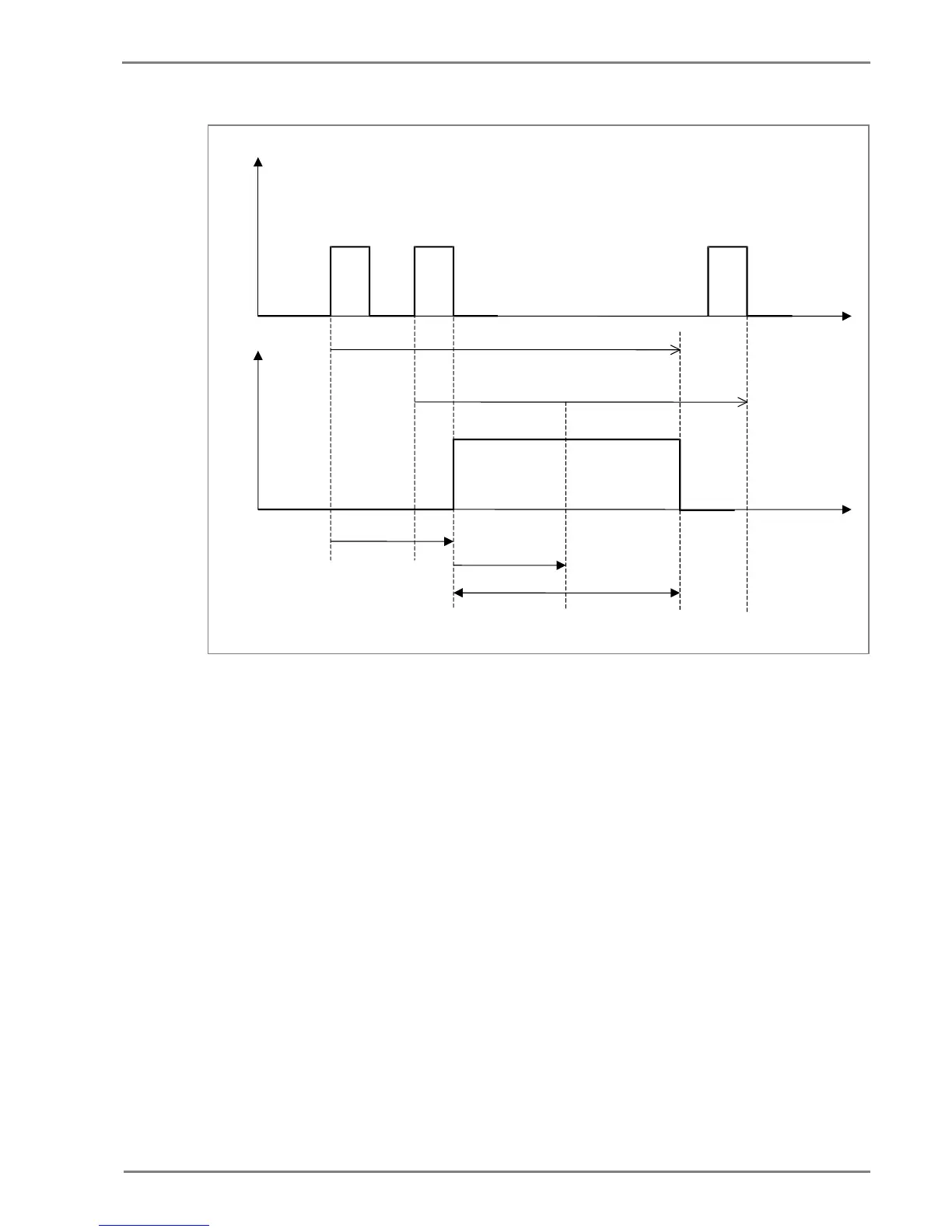

Figure 3: Start inhibition example 1
Start inhibition example 2:
The maximum number of starts within the Supervising Time has been reached so the Inhib. Strt
Time is initiated. The remaining time Supervising Time – tn is shorter than the Inhib. Strt Time, so
the start inhibition remains for duration equal to Inhib. Strt Time. Therefore, with the default settings
and a tn of 55 mins for example, the inhibition time before a new start is 10 mins.
