2.7 Human Machine Interface Module
The HMI module is provided with 16x2 LCD, 8 numbers of soft feather touch keys and 8 numbers of
LEDs for indication. The cover at right side of the front panel houses following:
• Female USB connector
• Serial number of relay
• Model number of relay
• Voltage and Current ratings

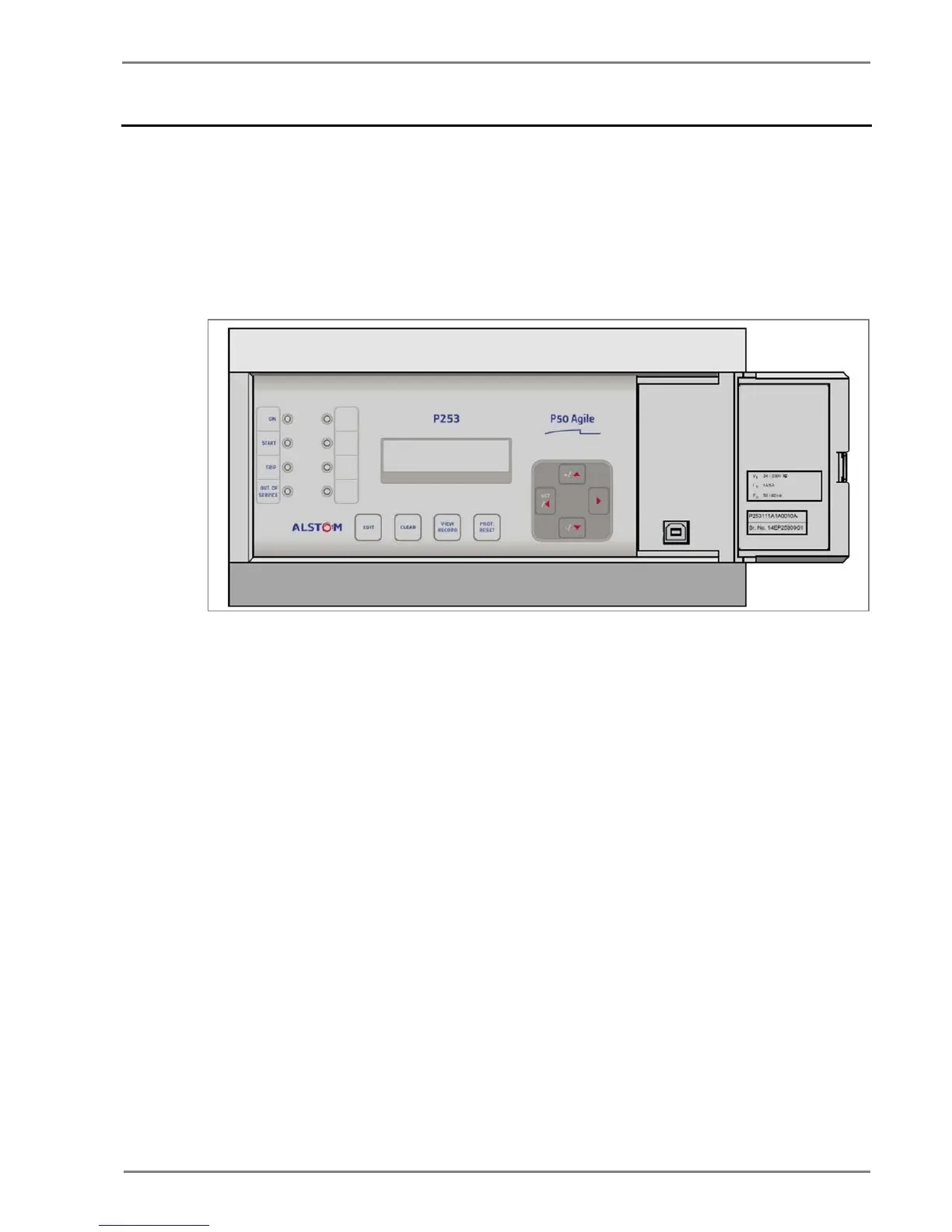

Figure 5: Front panel of P253 relay
