Installation Instructions

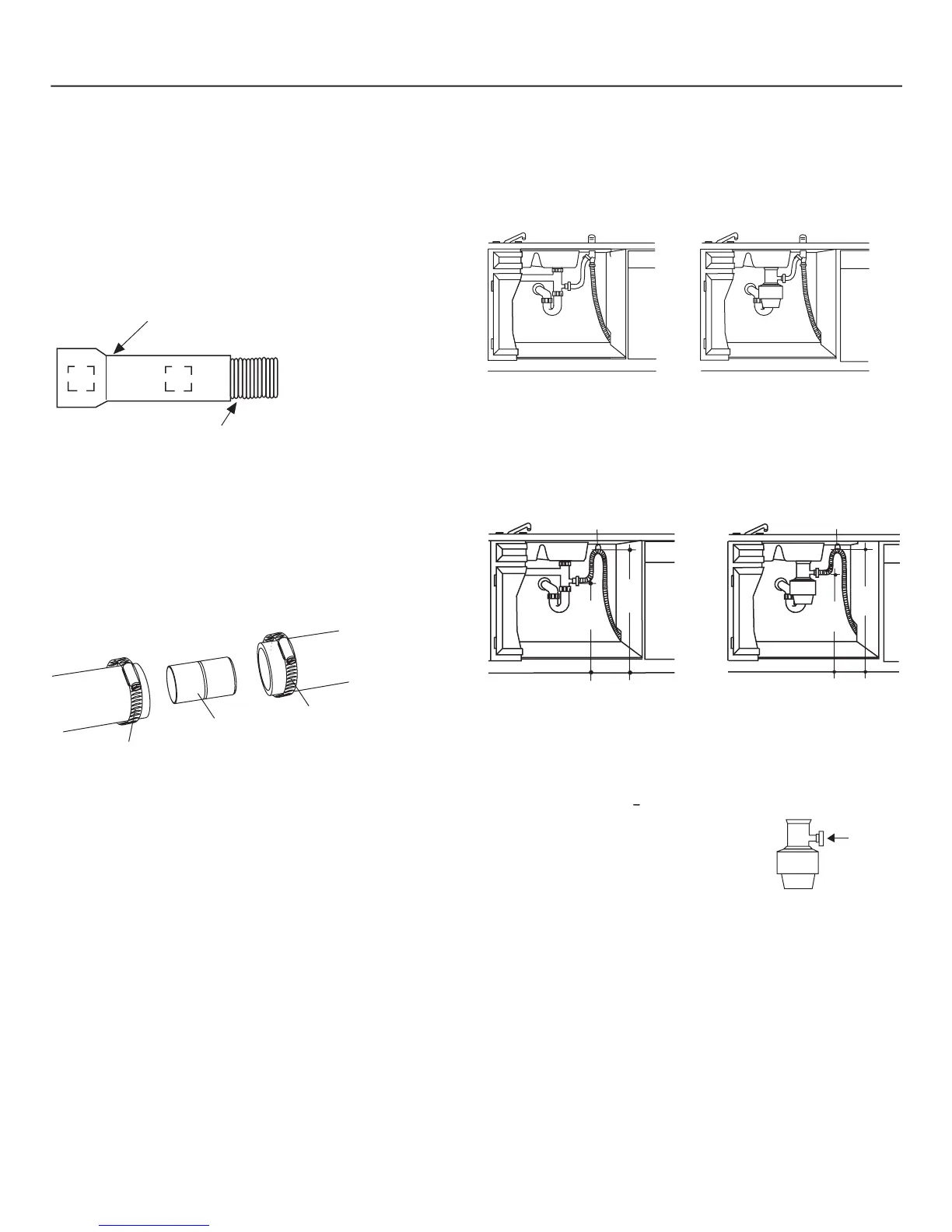

STEP 17–CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
The molded end of the drain hose will fit 5/8" through 1"
diameter inlet ports on the air gap, waste tee or disposer.
• Determine size of inlet port
• Cut drain hose connector on the marked line, if required, to fi t
• Connect drain line to air gap, waste tee or disposer using the
previously determined method.
Method 1 – Air gap with waste tee or disposer
• If a longer drain hose is required and you did not purchase
drain hose GPF10L, add up to 42" length for a total of 120"
(10 feet) to the factory installed hose. Use 5/8" or 7/8" inside
diameter hose and a coupler to connect the two hose ends.
Secure the connection with hose clamps.
• Secure the drain hose to the air gap, waste tee or disposer with
TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED 10 FEET
FOR PROPER DRAIN OPERATION.
Method 2 – Built-in “High drain loop” with waste tee or
Avoid unnecessary service call charges. Prior to connecting
drain hose be sure excess hose is not trapped, kinked or crushed
by the dishwasher. Pull excess hose through the cabinet opening
to prevent hose damage and pump out issues.
923-10A
Cutting Line
1"
5/8"
IMPORTANT: Do not cut corrugated portion of hose
Fasten to underside
of countertop
32"
Min.
18"
Min.
06C-1683C
18"
Min.
32"
Min.
06C-1683D
Fasten to underside
of countertop
When connecting drain line to disposer,
check to be sure that the drain plug has
been removed. DISHWASHER WILL NOT
To Next Page
