PREPARE ELECTRICAL WIRING
Remove house fuse or open circuit breaker
before beginning installation. Do not use
an extension cord or adapter plug with this
The improper connection of the equipment
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt that the appliance is properly
For models equipped with power cord:
provided with the appliance; if it will not fit the outlet, have a
proper outlet installed by a qualified technician.

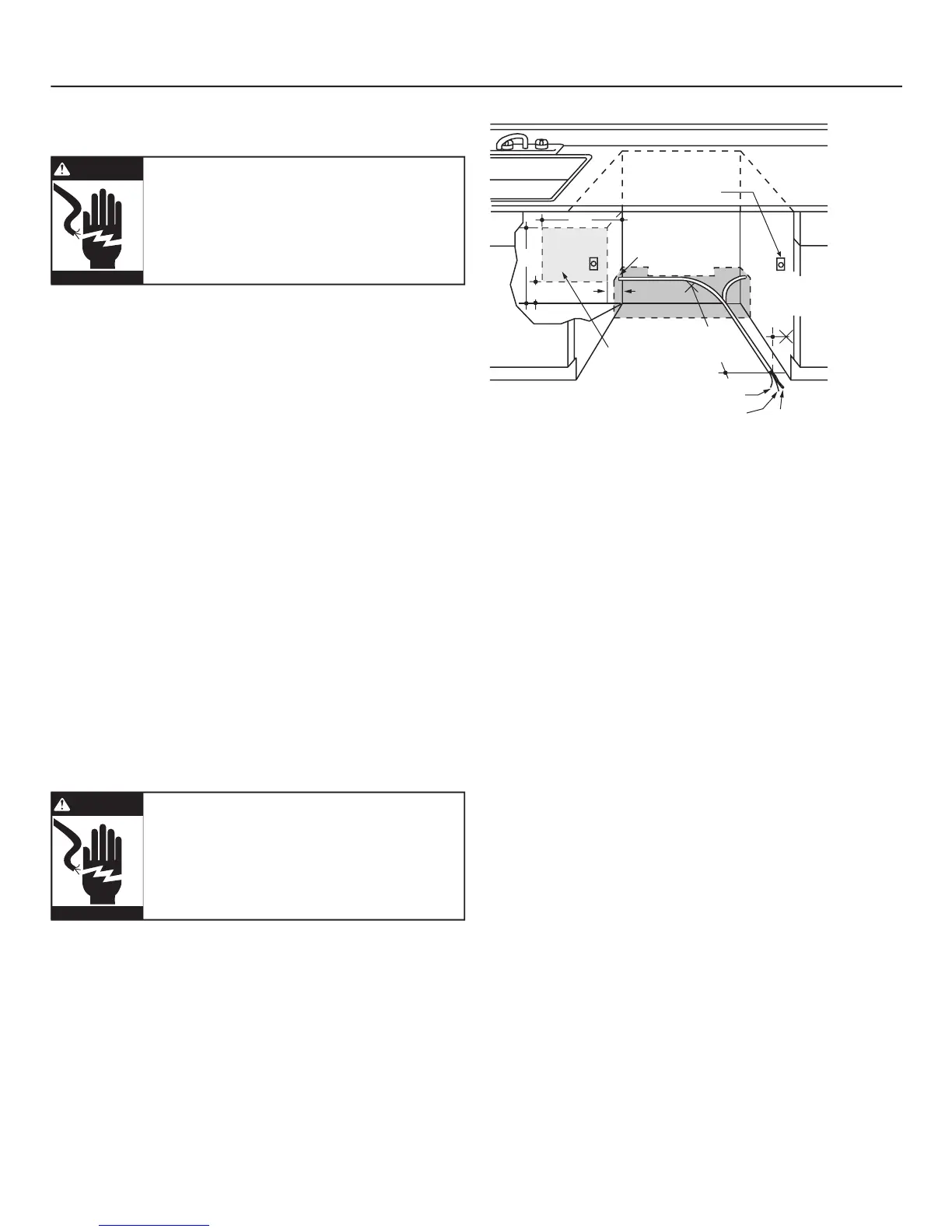

Cabinet Preparation and Wire Routing
• The wiring may enter the opening from either side, rear or the
fl oor within the shaded area.
• Cut a 1-1/2" maximum diameter hole to admit the electrical
cable. Cable direct connections may pass through the same
hole as the drain hose and hot water line, if convenient. If
cabinet wall is metal, the hole edge must be covered with
Power cords with plug must pass through a separate
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwasher.
• For cable direct connections the cable must be routed as
shown in Figure E. Cable must extend a minimum of 24" from
• For power cord connections, install a 3-prong grounding type
receptacle in the sink cabinet rear wall, 6" min. or 18" max.
from the opening, 6" to 18" above the fl oor.
WARNING
WARNING
• This appliance must be supplied with 120V, 60Hz., and
connected to an individual properly grounded branch circuit,
protected by a 15 or 20 ampere circuit breaker or time delay
• Wiring must be 2 wire with ground and rated for 75°C (176°F).
• If the electrical supply does not meet the above requirements,
call a licensed electrician before proceeding.
Grounding Instructions–Cable Direct
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and be
connected to the equipment grounding terminal or lead on the
Grounding Instructions–Power Cord Models
This appliance must be grounded. In the event of a
or breakdown, grounding will reduce the
by providing a path of least resistance
This appliance is equipped
with a cord having an equipment
and a grounding plug. The plug must be
appropriate outlet that is installed and grounded
accordance with all local codes and ordinances.
