GE PDW7000 Series Installation Instructions

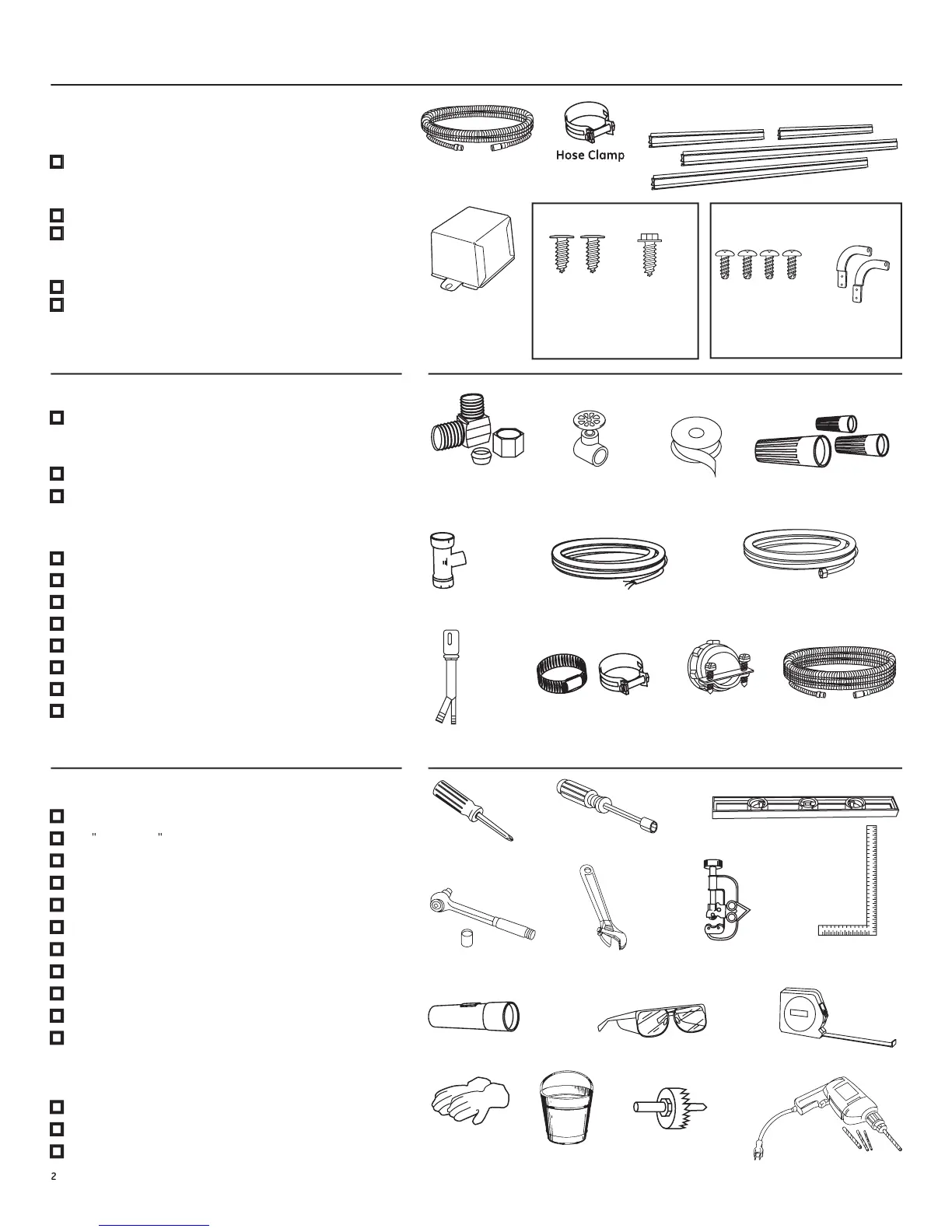

PARTS SUPPLIED
IN INSTALLATION PACKAGE:
■
Two #8-18 x 5/8" Phillips special head screws, to
Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop or
sides of cabinets.
■
Junction box cover and #10 hex head screw
Junction box cover and #10 hex head screw
■
2 Side-mounting brackets with four #8 Pan-head
2 Side-mounting brackets with four #8 Pan-head
mounting screws for non-wood countertops (some
models)
■
Drain Hose and Hose Clamp
Drain Hose and Hose Clamp
■
Side and top trim pieces (some models)
Side and top trim pieces (some models)
Installation Preparation
TOOLS YOU WILL NEED:
■
Phillips head screwdriver
■
1/4
"
and 5/16
"
nutdriver
■
6" Adjustable wrench
■
Level
■
Carpenters square
■
Measuring tape
■
Safety glasses
■
Flashlight
■
Bucket to catch water when flushing the line
■
15/16" socket (optional for skid removal)
■
Gloves
For New Installations Only:
■
Tubing cutter
■
Drill and appropriate bits
■
Hole saw set
MATERIALS YOU WILL NEED:
■
Ferrule, compression nut and 90° Elbow (3/8"NPT
external thread on one end, opposite end sized to fit
water supply)
■
Thread seal tape
■
UL Listed wire nuts (3)
Materials For New Installations Only:
■
Air gap for drain hose, if required
■
Waste tee for house plumbing, if applicable
■
Electrical cable or power cord, if applicable
■
Screw type hose clamps
■
Strain relief for electrical connection
■
Hand shut-off valve (recommended)
■
Water line–3/8" minimum copper tubing
■
GPF10L drain hose, if needed
Hose Clamps
90 ϒ Elbow
Air Gap
Carpenters Square
Crescent Wrench
Drill & Bits
Electrical Cable
Flashlight
Hand Valve
Hole Saw Bit
Level 2
Measuring Tape
Nutdriver
Hose Clamps
Ratchet & Socket
Safety Glasses
Screw Driver II
Tape
Tubing Cutter
Wire Nuts
Hose Clamp
Drain Hose
Side and Top Trim Pieces on some models
Hand
Shut-Off
Valve
90° Elbow,
Ferrule and
Compression Nut
Thread
Seal Tape
Wire Nuts (3)
Hot Water Line
Electrical Cable
(or Power Cord, if applicable)
Waste Tee
Air
Gap
Screw Type
Hose Clamps
Strain Relief
Phillips
Head
Screwdriver
1/4" and
5/16" Nutdriver
Level
Carpenters
Square
15/16" Socket
6" Adjustable
Wrench
Tubing Cutter
Measuring Tape
Safety Glasses
Flashlight
Bucket
Hole Saw Set
Drill and Bits
#8 Phillips
Special
Head Screws
5/8" long
#8 Phillips Special
Head Screws
Waste Tee
Strain Relief
Hot Water Line
Gloves
GLOVES
Bucket
2
#8 Phillips
Pan-head Screws
3/8" long for
side-mounting
Side-
Mounting
Brackets




Junction
Box Cover
Screw Kit
Side Mount Kit
(some models)
#10
Hex- Head
J-Box Screw
1/2" long

Optional
10' Drain Hose
GPF10L
Drain Hose 10ft.
Drain Hose
