Power Cord
(If Used)
Insulation
Blanket
Water
Line
House Wiring
(If Power Cord
is NOT Used)
Drain
Hose
Maximum Drain
Hose Length 10'
05A-1182J

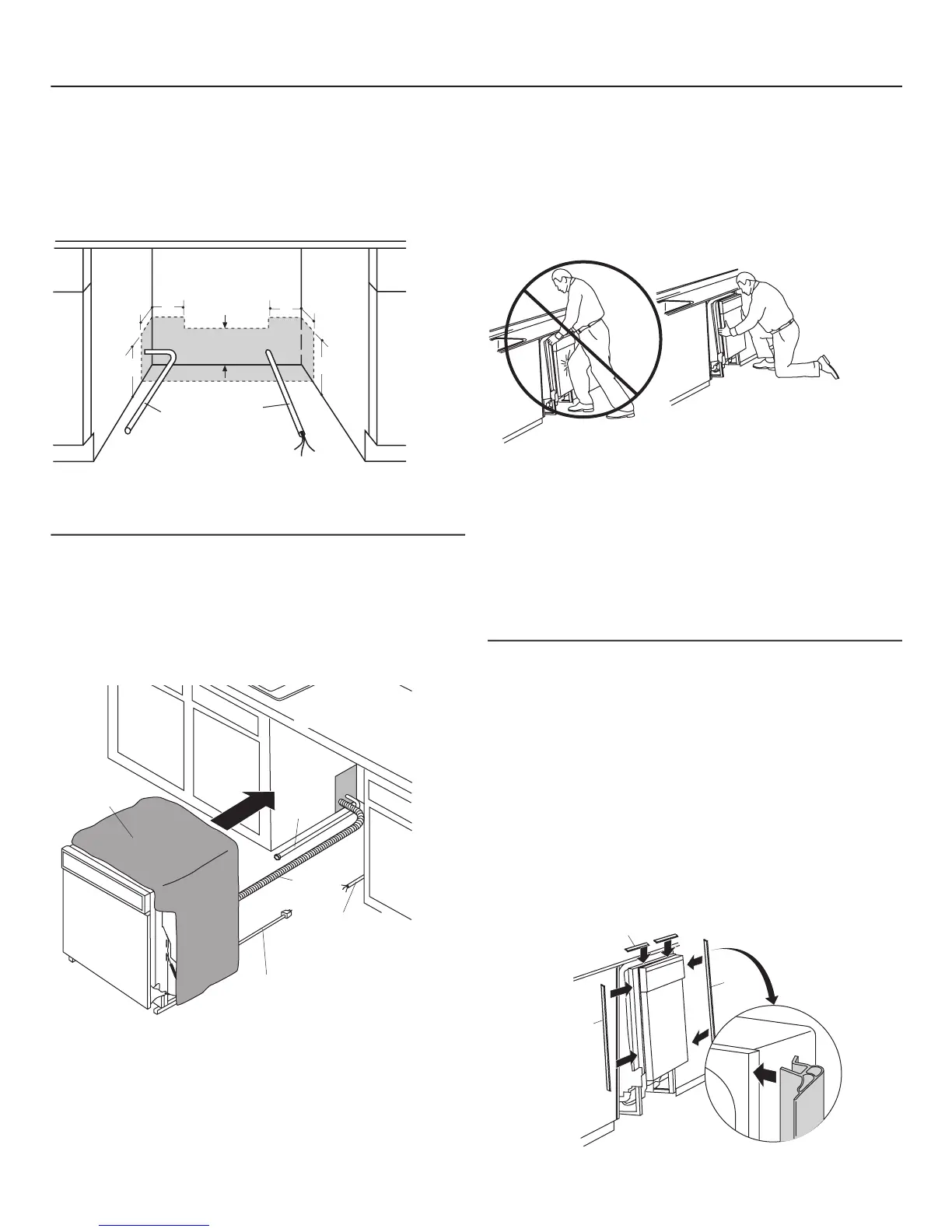

STEP 8– POSITION WATER LINE
• Position water supply line and house wiring on the fl oor of the
opening to avoid interference with base of dishwasher and
components under dishwasher.
Installation Instructions
STEP 9– INSERT DRAIN HOSE
• Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. If a power cord is used, guide
the end through a separate hole.
STEP 10– SLIDE DISHWASHER
DO NOT PUSH AGAINST FRONT PANEL WITH KNEES. DAMAGE
• Slide dishwasher into the opening a few inches at a time.
• As you proceed, pull the drain hose through the opening under
the sink. Stop pushing when the dishwasher extends about 6
inches forward of adjacent cabinets.
• Make sure drain hose is not kinked under the dishwasher and
there is no interference with the water line and wiring or any
Position water line and house wiring on the floor to avoid
interference with base of dishwasher.
STEP 11–INSTALL TRIM PIECES
Skip this step if trim is not supplied with the
• Locate the four trim pieces set aside in Step 1.
• Position the trim pieces so the lips face toward the dishwasher
• Select a long trim piece and press it onto the left side tub
fl ange. Start with the top edge and press the trim piece
completely onto the tub fl ange as you move towards the
bottom. Repeat for the right side tub fl ange trim piece.
• Select one of the short trim pieces. Install it on the top tub
fl ange to the left of the door latch. Select the remaining short
piece of trim and install it on the top tub fl ange to the right of
Trim Strip
Trim
Strip
Trim
Strip
06E-1774B
Top View
To Next Page
