How to access the evaporator (cont.)
11. Pull the left side of the fan cover out approximately 90 degrees, then
remove the fan cover.

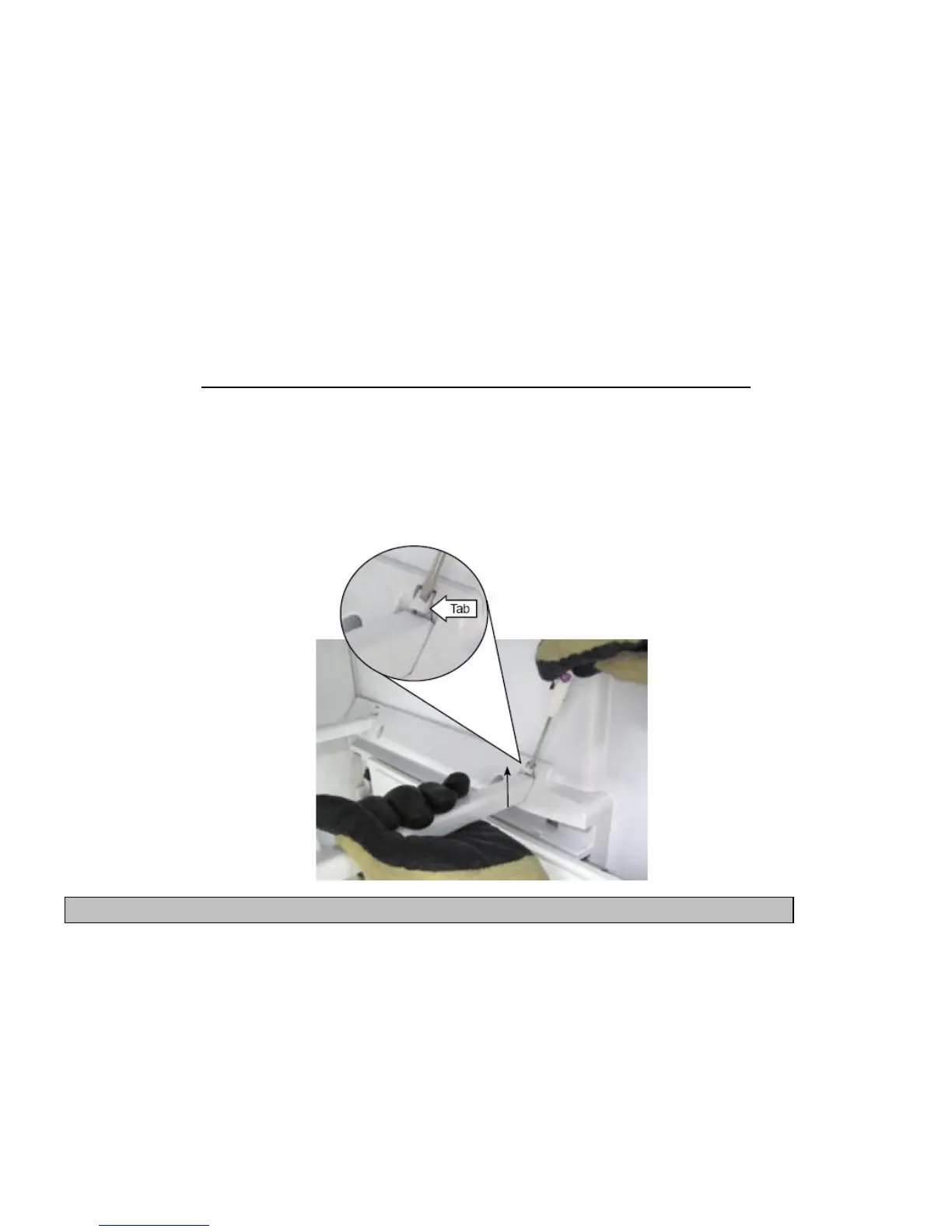

12. Using a flat-blade screwdriver, press the tab in and sharply lift up one
end of each support rail and remove each rail.
