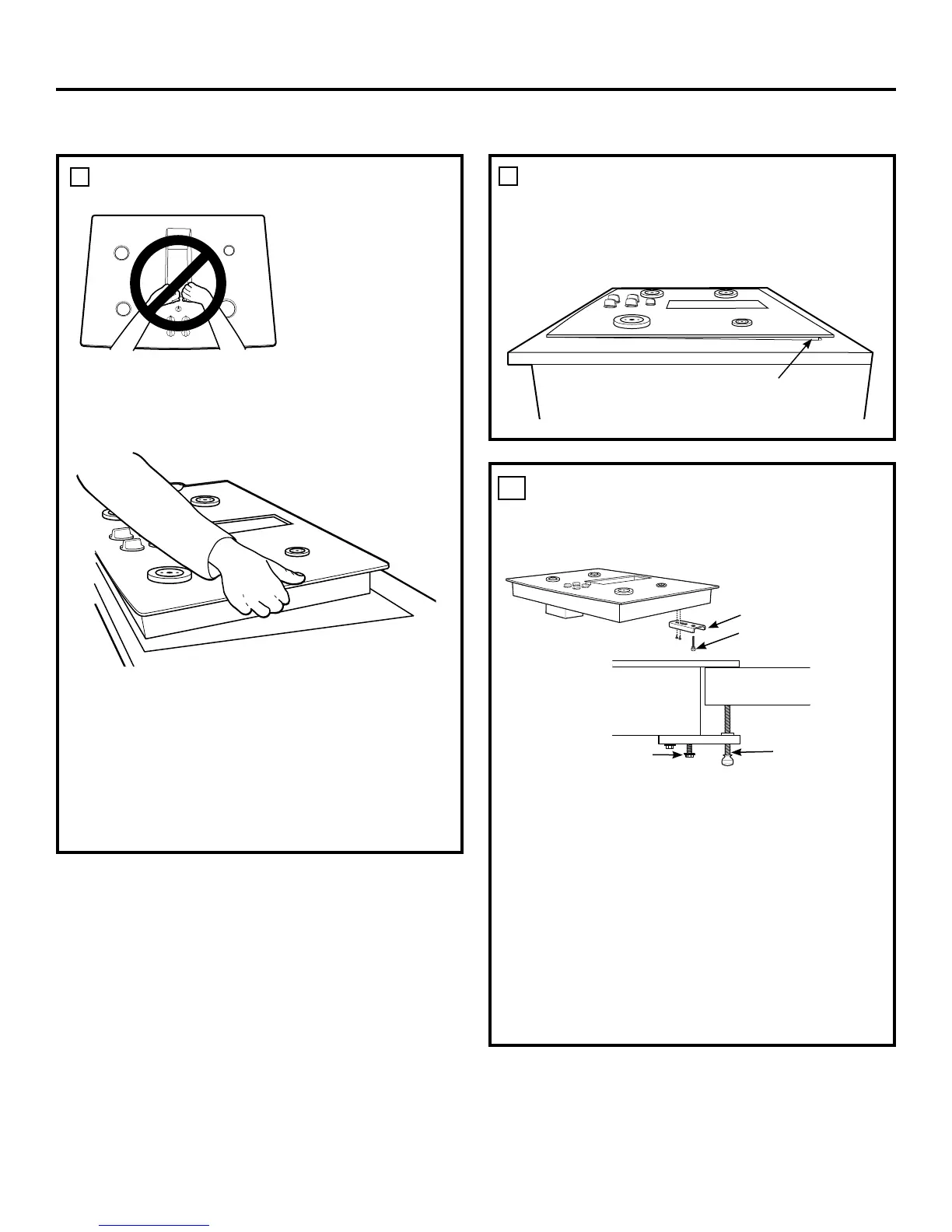

Lift the cooktop by the glass side edges as shown
Do not use the glass top vent opening to lift
or move the cooktop into position
Lower the cooktop into the countertop opening,
guiding it into position Glass is fragile—do not allow
it to drop onto the countertop Support from the
underside and lower slowly
Carefully remove your fingers one corner at a time
to lower the cooktop into position
use Silicone RTV or caulk to bond
cooktop glass to countertop
Inspect the cooktop glass for rocking or uneven
gap on all four sides at the countertop surface
Do not attempt to force the glass to meet the
countertop
Check for
uneven gaps
8
9
Check for glass flatness in Step 9 before
installing optional installation brackets
To order optional installation brackets/thumb screws,
call the National Parts Center at 8006262002
Order two of each part: WB02X11331 Bracket
WB01X10353 Screw
To install optional installation brackets:
Remove 2 screws on both sides under cooktop
Align optional installation bracket under cooktop
and reinstall screws through the slot in the bracket
Do this on both sides of the cooktop
Thread the thumb screw through the hole in the
bracket and tighten to secure the cooktop to the
countertop Repeat on the other side
Turn thumb screw until it touches the
bottom of the countertop Do not overtighten
Optional installation
bracket and thumb
screw (not included)
Cooktop
Countertop
10
Screws supplied with
cooktop
Thumb screw
