Conguring for a Probe and Wedge

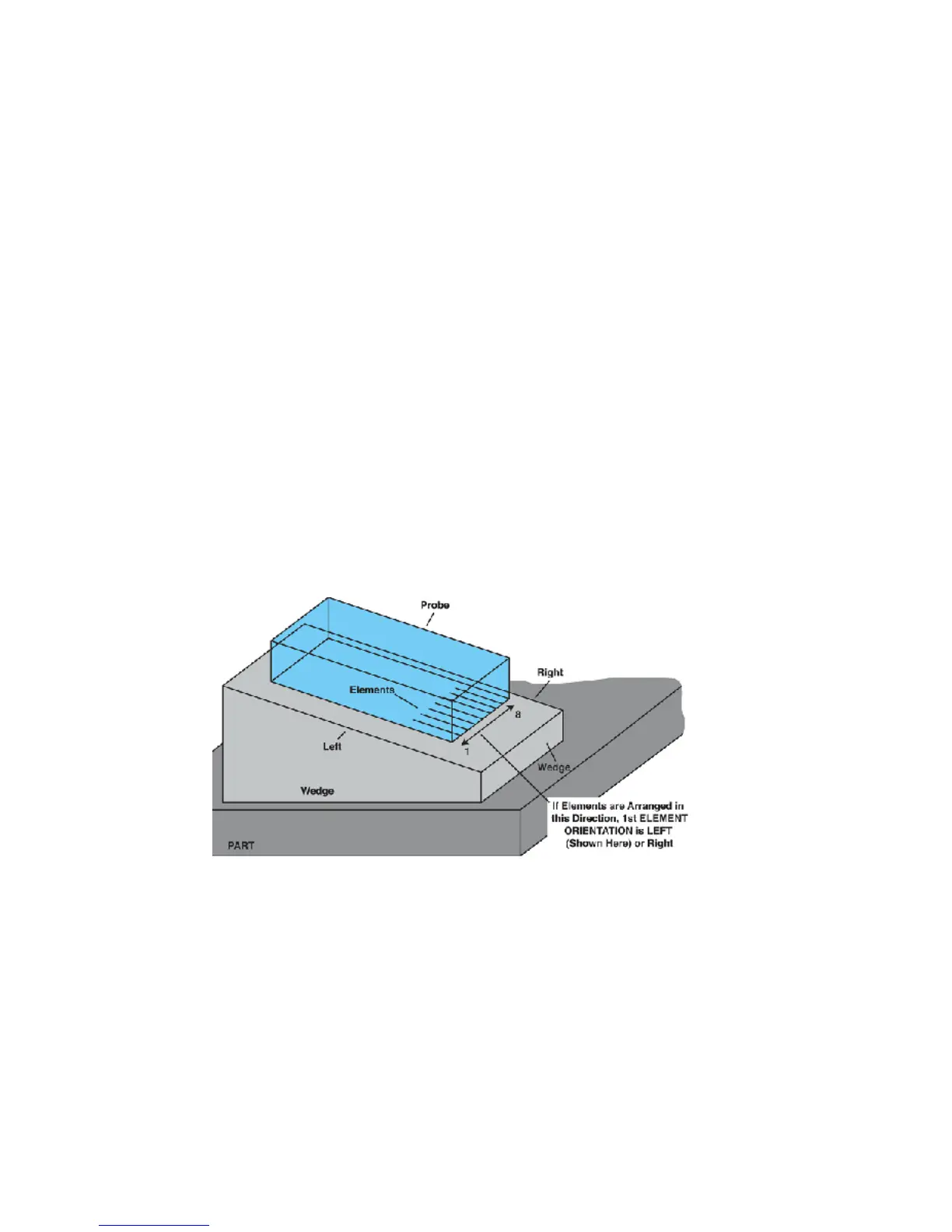

Markings on the probe body indicate the location of element 1 and the
direction that additional elements are arranged. To dene the
orientation of the probe’s elements with respect to the wedge’s
geometry, access PROBE menu then WDGE DAT submenu.
