REVERSING THE DOOR SWING (if desired)
Installation Instructions
36
REVERSE DOOR HANDLE
AND CAPS

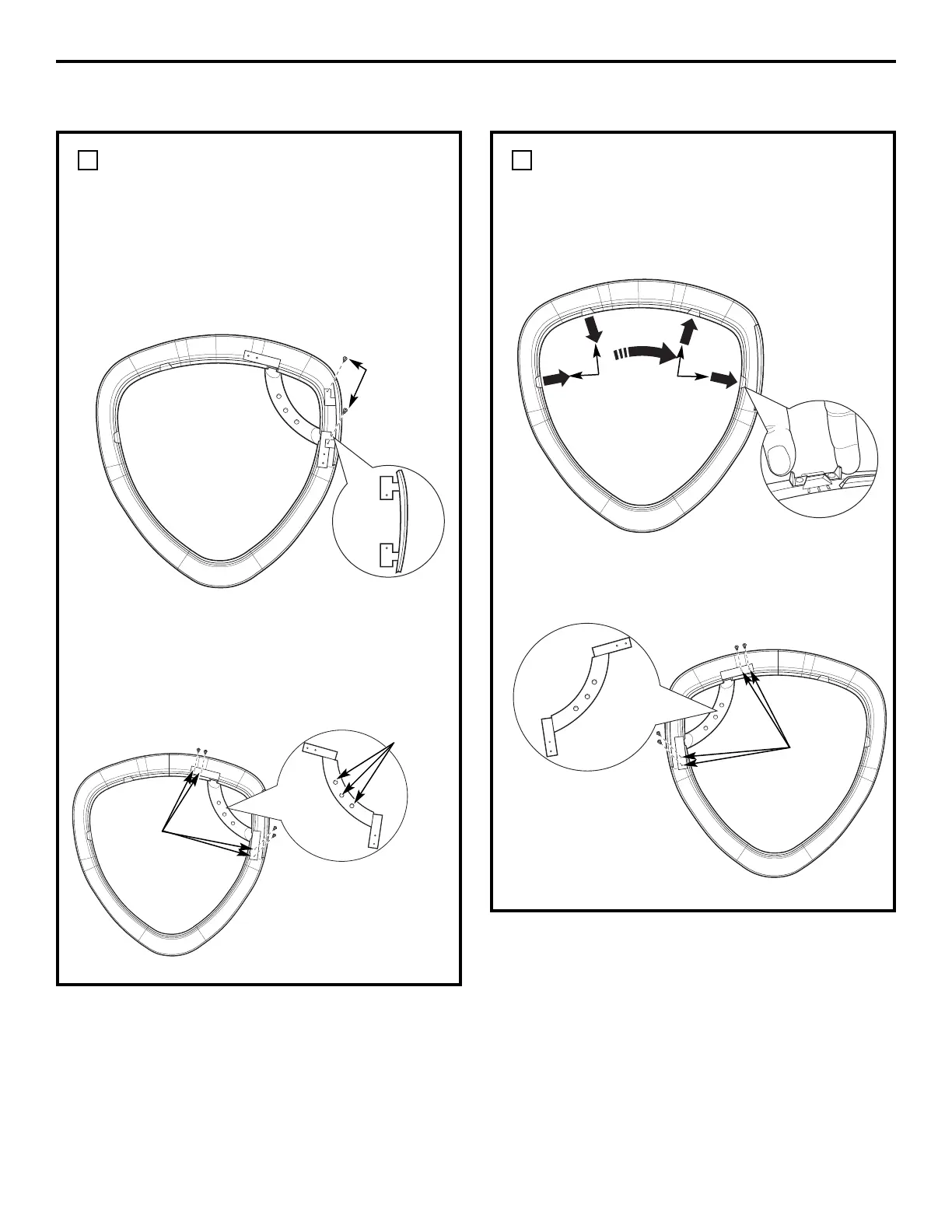

A Lay the chrome cover down on a soft,
protected, flat surface so that the inner part
faces upward (resting on the handle side).
Disassemble the door cap from the chrome
cover on the handle side by removing 2 screws
(#8 x 0.625″ tapping screws).
Door cap
3
D Assemble the outer handle onto the opposite
side of the chrome cover, using 4 screws
(#8 x 0.625″ tapping screws).
REVERSE DOOR HANDLE
AND CAPS (CONT.)
C Pop the 2 handle caps out toward you and
reassemble on the opposite side of the chrome
cover, where you removed the outer handle.
Handle caps
3
B Disassemble the inner handle from the outer
handle by removing 3 screws (#8 x 0.625″
tapping screws). Disassemble the outer handle
from the chrome cover by removing 4 screws
(#8 x 0.625″ tapping screws).
2 x D
Screws
Remove
4 x D screws
(outer handle)
Replace
4 x D
screws
(outer
handle)
Outer
handle
3 x D
Screws
(inner
handle)
Outer
handle
To Next Page
