REVERSE DOOR HANDLE
AND CAPS (CONT.)
Put the chrome cover aside on a soft, protected
flat surface.
Door cap
3
F Assemble the new right-side door cap
(from reversibility kit), using 2 screws
(#8 x 0.625″ tapping screws).

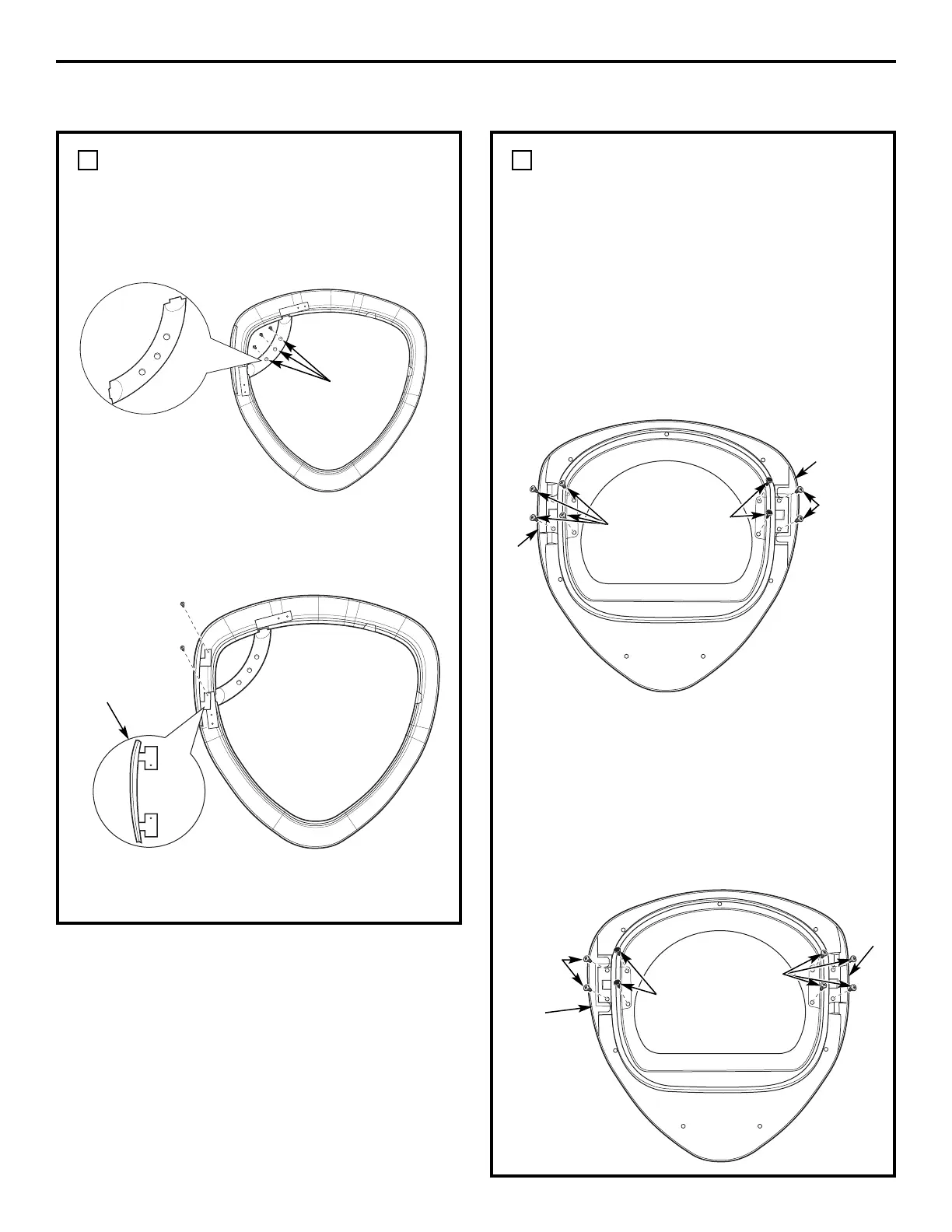

REVERSE HINGE AND CAPS
• Lay the inner door down on a soft, protected
flat surface so that the inner part faces up.
• Remove the 2 black plug buttons on the opposite
side of the hinge, using a putty knife or thin-blade
screwdriver.
• Disassemble the inner door cap from the inner
door by removing 2 screws (#8 x 0.75″ tapping
screws).
• Disassemble the hinge from the inner door
by removing 4 screws (#8-32 x 0.50″ machine
screws).
Hinge
4
• Assemble the hinge to the opposite side
of the inner door, using 4 screws (#8-32 x 0.50″
machine screws).
• Assemble the new inner door cap (from
reversibility kit) on the opposite side of the hinge,
using 2 screws (#8 x 0.75″ tapping screws).
• Install the 2 black plug buttons on the opposite
side of the hinge in the 2 remaining holes.
Remove
4 x E screws
2 x D
Screws
Replace
2 x D
screws
Hinge
Replace
4 x E
screws
2 black
plug buttons
Replace
2 black
plug buttons
Installation Instructions
37
2 x D Screws
Inner door
cap
Inner
door cap
3 x D
Screws
(inner
handle)
E Reassemble the inner handle to the outer handle,
using 3 screws (#8 x 0.625″ tapping screws).
Inner
handle
