– 34 –

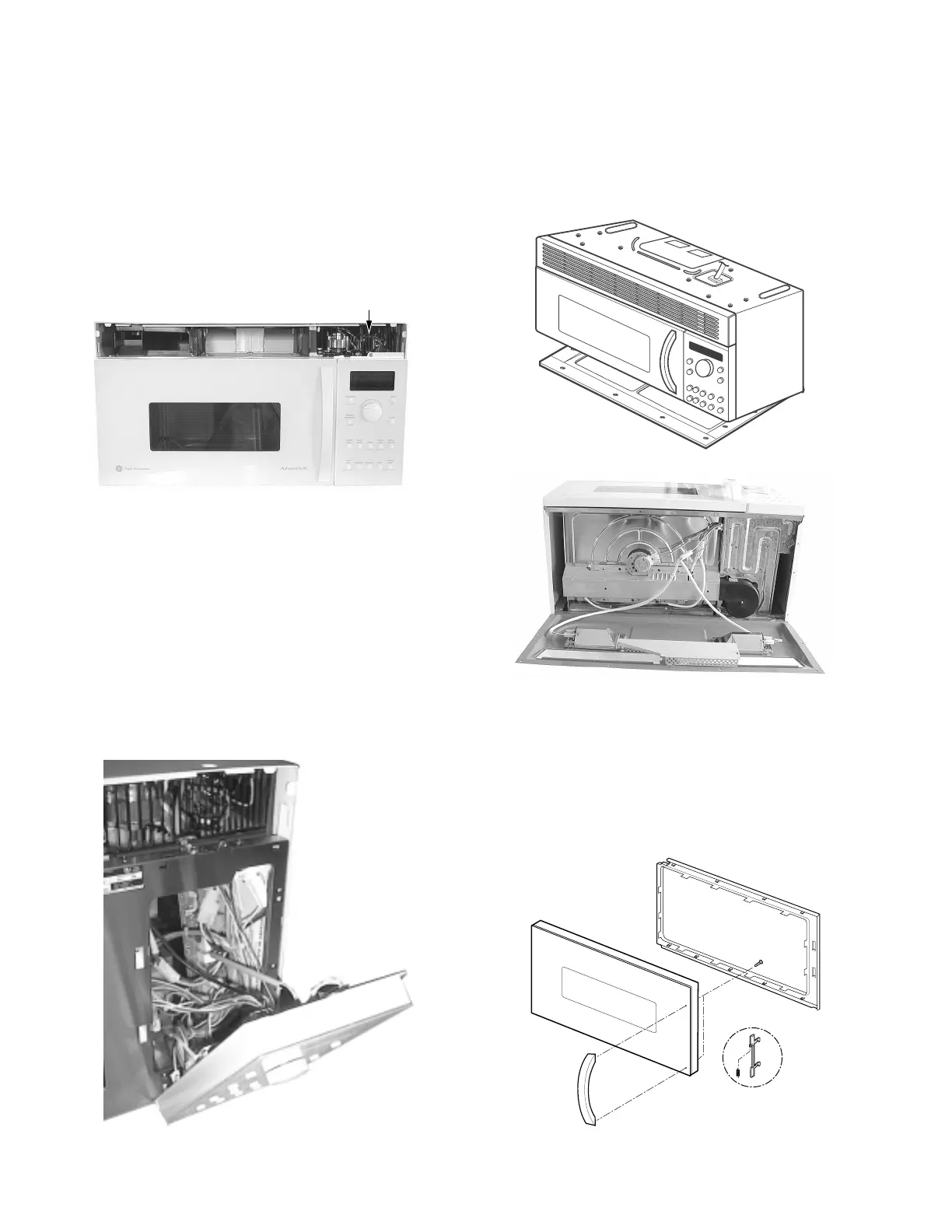

SERVICEABILITY WITH OVEN INSTALLED
The following components can be accessed from
the front of the oven with the unit installed:
Accessible after removing top front grille
assembly:
• High voltage capacitor
• 20 amp line fuse
• High voltage diode
Accessible after removing top front grille
assembly & front control panel assembly:
• Low voltage transformer
• Base hood thermal cut-out (TCO)
• Relay board (halogen lamp relay board)
• Smart board
• Vacuum fluorescent display (VFD)
• LED board assembly
• Control panel assembly (key pads & panel)
• Oven door switches & damper door switch
Accessible after lowering the bottom
base plate assembly
• Turntable drive motor & spindle
• Lower halogen lamp
• Lower halogen thermal cut-out (TCO)
• Base hood lamps
Accessible after removing the top front
grille and the complete door assembly
• Latch/spring assembly
• Door panel assembly
• Choke cover
• Door handle
LOCATED IN
THIS AREA
CONTROL
PANEL
LOWERED
TOP FRONT
GRILL REMOVED
