GE Profile Performance ADVANTIUM SCA2000BAA - Illustrated Parts Breakdown

– 56 –
M
A
IN
P
. C
. B
O
A
R
D
LED BOARD
V F D
Grille Assembly:
WB07X10268 AD
WB07X10260 WH
WB07X10270 SS
WB07X10266 BK
WB02X10625 (2)
Front Grille Clips
WB18X10095
Wiring Harness
WB18X10096
Power Cord
WB26X10064
Vent Motor
WB55X10297
Choke Cover
WB10X10021
Latch/Spring Assy
Handle Door:
WB15X10043 AD
WB15X10040 WH
WB15X10044 SS
WB15X10042 BK
Door Assembly:
WB55X10300 AD
WB55X10298 WH
WB55X10301 SS
WB55X10299 BK
WB27X10336
Vacuum Flor. Display
WB27X10328
LED Display
WB27X10333
Smart Board, Main
Control Panel Assy:
WB07X10269 AD
WB07X10265 WH
WB07X10271 SS
WB07X10267 BK
Knob:
WB03X10078 AD
WB03X10072 WH
WB03X10081 SS
WB03X10077 BK
Buttons (14):
WB03X10079 AD
WB03X10073 WH
WB03X10080 SS
WB03X10076 BK
The Control Panel Assembly Includes:
• Control panel front
• Knob
• Buttons
• Switch assembly circuit board

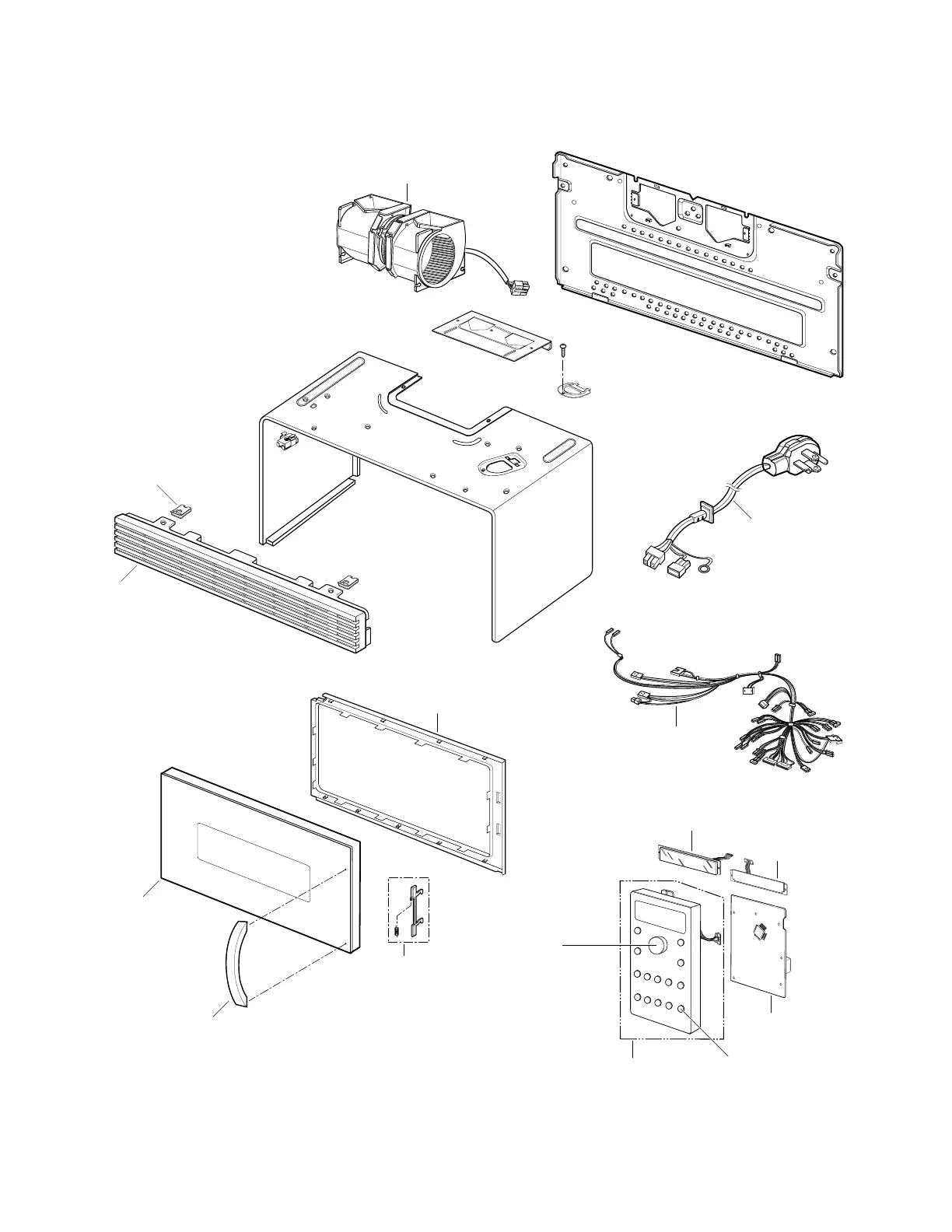

ILLUSTRATED PARTS BREAKDOWN
• SCA2000BAA04
• SCA2000BWW04
• SCA2000BCC04
• SCA2000BBB04
