GE Profile Performance ADVANTIUM SCA2000BAA - Page 54

– 52 –

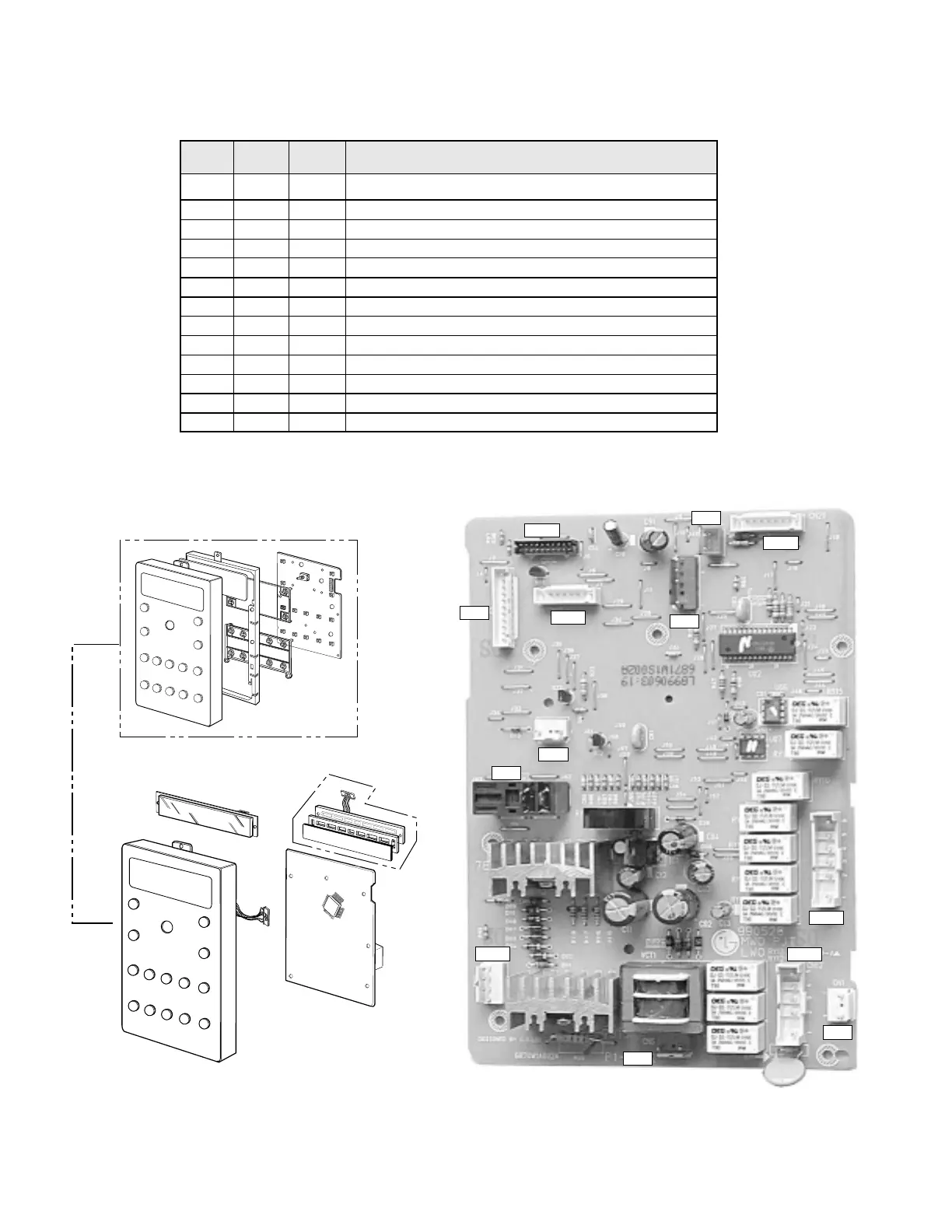

CN17
CN11
CN12
CN14
CN20
CN13
CN3
CN4
CN2
CN6
CN5
CN1
CN1 White 3 Pin LV transformer primary
CN2 Blue 3 Pin Dr sensing sw, damper dr monitor sw & base hood TCO
CN3 White 11 Pin User control switch assembly (control panel assy)
CN4 Red 3 Pin Humidity sensor
CN5 Blue 5 Pin From volt. comp. transformer primary (on smart board)
CN6 Yellow 3 Pin Oven cavity thermistor
CN11 White 4 Pin LV transformer secondary
CN12 White 5 Pin (see schematic / legend)
CN13 White 6 Pin (see schematic / legend)
CN14 Black 20 Pin Vacuum fluorescent display
CN17 White 8 Pin Relay board
CN20 White 9 Pin LED board
RY2 Clear 2 Pin To HV transformer and Nuetral
CONN COLOR # PINs DESCRIPTION
S
M
A
R
T B
O
A
R
D
LED BOARD ASSY
V F D
CONTROL PANEL ASSY
RY2
SMART BOARD - WB27X10333
SMART BOARD
