Daughter Relay Module (DRM)
To replace the DRM:
Remove the glass top. (See
Glass Top.)
Mark and disconnect wiring from the module.
1.
2.

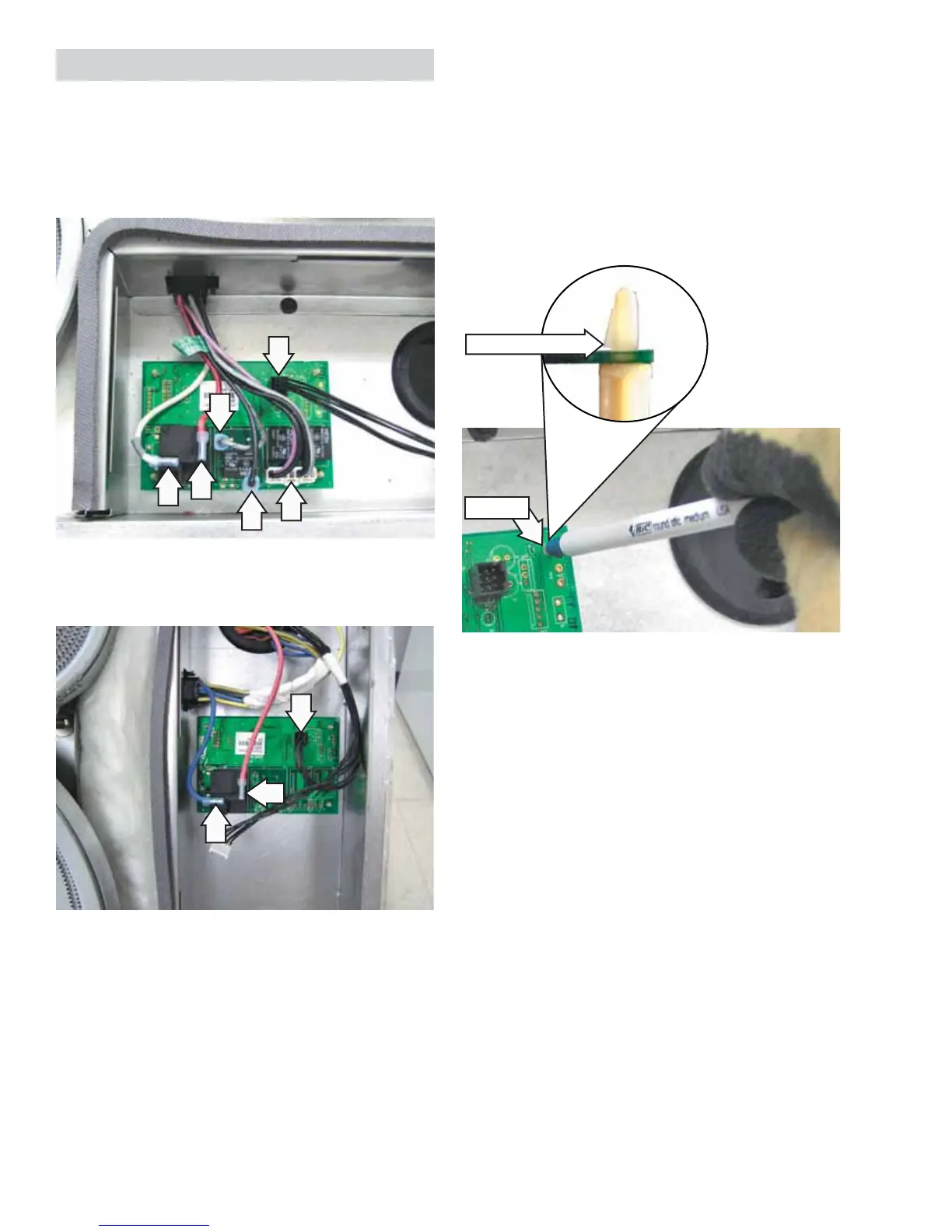

Note: The module is held in place by 4 retainers
that lock the board in place using compression tabs.
It may be helpful to remove the ink tube from an
inexpensive ballpoint pen and place the barrel of the
pen over each retainer to compress the tab.
Compress the 4 tabs and lift the module from
the recess in the burner box.
3.
Retainer
Compression Tab
Model PP975
Model PP945
