GE Profile PSB42LSRBV

– 23 –

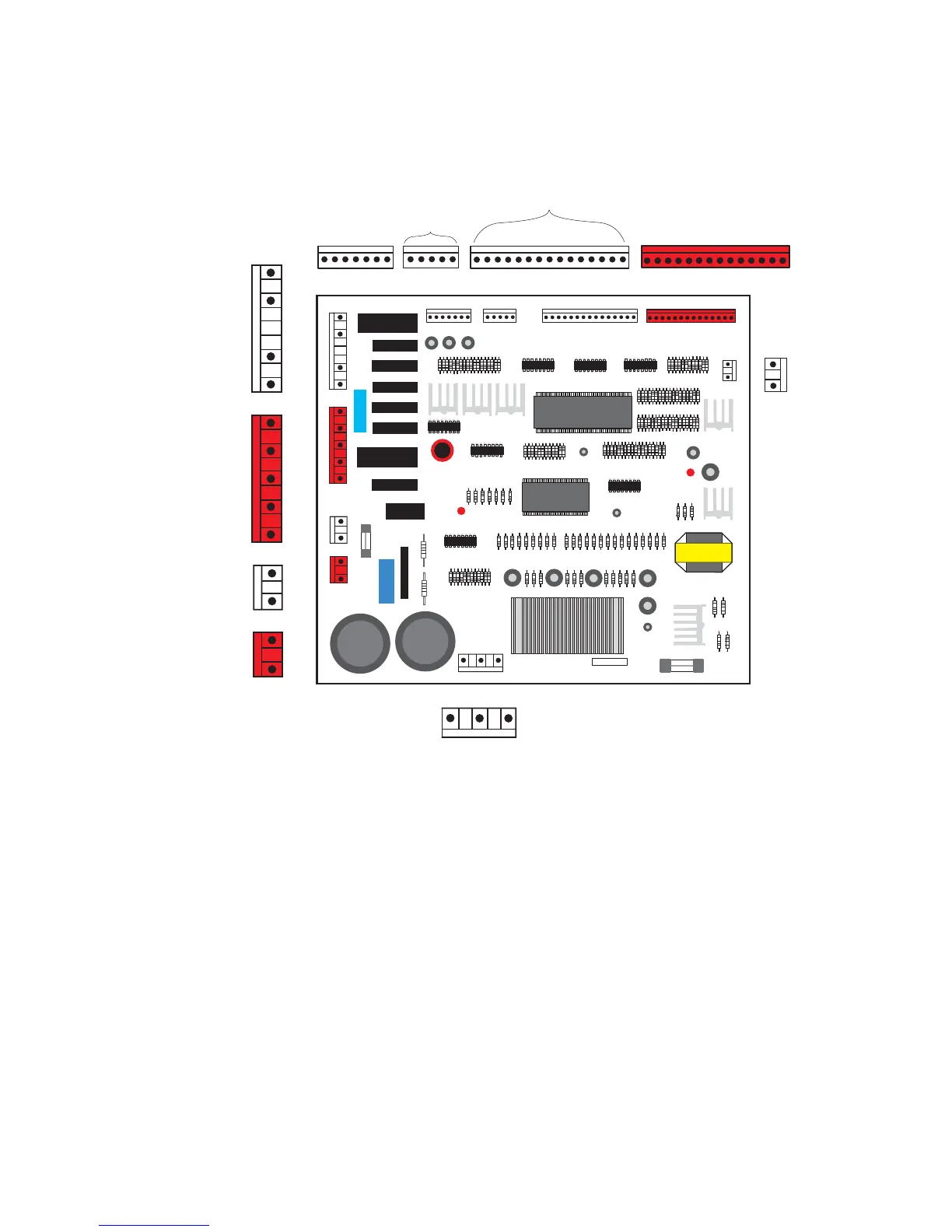

Control Board Connector Locator
CN04
1
CN10
CN12
CN70
CN71
1
1
1
1
1
1
1
1
CN72 CN90
CN50
CN30
CN31
1
CN04 ***
1
CN10
CN12
CN70
CN71
1
1
1
1
1
1
1
1
CN72 CN90
CN50
CN30
CN31
1
Compressor
Compressor
Compressor
External Thermisto
r
CN02 Pin 11
Compressor Overload
Compressor Overload
Neutral (from noise filter)
L1 (from choke)
Cube Motor
Auger Motor
Dispenser Water Valve
Duct Door Motor
L1 (from choke)
Neutral (from noise filter)
Dispenser Heater
FF Defrost **
FZ Defrost *
* FZ Defrost - Freezer defrost circuit consists of the defrost heater, bi-metal thermostat,
drain pan and tube heater and suction line drain pan heater.
** FF Defrost - Fresh food defrost circuit consists of the defrost heater, bi-metal thermostat,
drain pan heater and icemaker fill tube heater.
Freezer Door Switch
Common
Freezer Thermistor
Freezer Evaporator Thermistor
Cube Reed Switch
Refrigerator Door Switch
Common
Refrigerator Thermistor Refrigerator Evaporator Thermisto
r
Duct Door Cam Switch #1 Duct Door Cam Switch #2
Dispenser Switch
Common
Dispenser Light
3-Way Valve
Common
Freezer Fan VDC
Refrigerator Fan VDC
Condenser Fan VDC
Condenser Fan Feedback Refrigerator Fan Feedback
Freezer Fan Feedback
Temperature Control & Display
*** CN04 on the control board connects to the CN8 connector on the terminal block panel.
